INFRARED SAUNA SERIES
Installation and Operating Instructions
Tylö® Kiruna™ 1
Tylö® Kiruna™ 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kiruna 1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tylo Kiruna 1

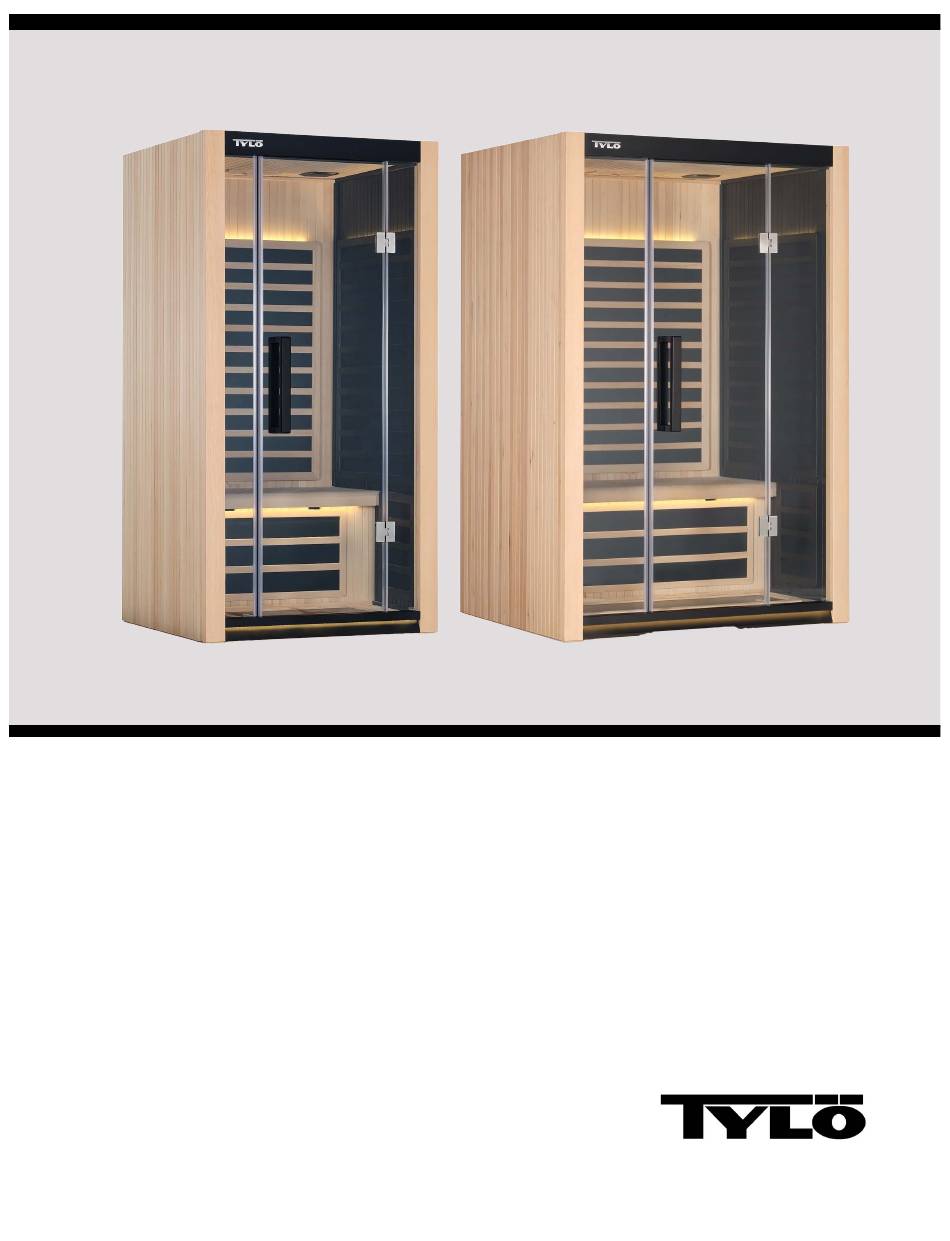

  • Page 1 INFRARED SAUNA SERIES Installation and Operating Instructions Tylö® Kiruna™ 1 Tylö® Kiruna™ 2...
  • Page 2 This Product is covered by: US Patents No. 8,692,168 Canadian Patents No. 2,729,500 2,794,059 & 2,813,340 and other Patents Pending. 71-0185 9/26/24 Tylö® Kiruna™ 1 | Tylö Kiruna™ 2 Revision C...
  • Page 3 Before you begin reviewing the manual, please take a moment to register your warranty. Doing so will assist us in contacting you for any important notification. Prior to registering, you will need the serial number(s) located on the equipment. To register, please go to http://tylo.com/en-us/warranty FOR YOUR RECORDS IR Room Model/Serial Number: Control Model/Serial Number:...
  • Page 4 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page iv THIS PAGE IS INTENTIONALLY BLANK 71-0185 9/26/24 Tylö® Kiruna™ 1 | Tylö Kiruna™ 2 Revision C...
  • Page 5 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page v Table of Contents SECTION 1. BEFORE YOU BEGIN ......................1 SECTION 2. SAFETY INFORMATION ....................... 2 2.1. CONSTRUCTION and INSTALLATION SAFETY ................2 2.2. USER and OPERATIONAL SAFETY ....................3 SECTION 3.
  • Page 6 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 1 SECTION 1. BEFORE YOU BEGIN This manual is for installation and operation of an Tylö® Kiruna™ 1 | Tylö Kiruna™ 2 sauna room mated with an Aspire con- trol. Tylö® Kiruna™ 1 or Tylö® Kiruna™ 2 Sauna Room Aspire Control (IG 810 SH / IG 820 SH) (1601-39)
  • Page 7 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 2 SECTION 2. SAFETY INFORMATION 2.1. CONSTRUCTION and INSTALLATION SAFETY WARNING - ELECTRIC SHOCK HAZARD: High voltage exists within this equipment. There are no user-serviceable parts within this equipment. Have the equipment installed and serviced only by qualified and licensed personnel in accordance with local and national codes.
  • Page 8 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 3 2.2. USER and OPERATIONAL SAFETY WARNING: Prolonged exposure to elevated temperatures can induce hyperthermia. Hyperthermia occurs when internal body temperature reaches several degrees above normal (98.6°F). Symptoms of hyperthermia include an increase in body temperature, dizziness, lethargy, drowsiness, and fainting. Effects of hyper- thermia include failure to perceive heat, failure to recognize the need to exit the room, unawareness of impending hazard, fetal damage in pregnant women, physical inability to exit the room and unconsciousness.
  • Page 9 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 4 SECTION 3. INSTALLATION REQUIREMENTS To ensure safe use of the IR sauna room, verify the following criteria are met: • Two (2) adults are required for the assembly and installation of the room. •...
  • Page 10 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 5 SECTION 4. PART LIST and TOOL REQUIREMENTS PART LIST Inspect and verify the packaging includes the following materials. Box #1: Floor, ceiling, bench skirt, bench, and door • handle. Box #2: Left and right walls. •...
  • Page 11 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 6 SECTION 5. IR ROOM ASSEMBLY Use these instructions for assembling a 1- and 2-person IR sauna room. For illustration purposes, the 2-person sauna room is shown. LAYING THE FLOOR PANEL The floor panel was included in Box #1.
  • Page 12 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 7 INSTALLING LEFT WALL SECTION The left wall was included in Box #2. 11. Place the hangers of the left wall section into the mating hangers located on the left side of the floor panel.
  • Page 13 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 8 INSTALLING BENCH SKIRT The bench skirt was included in Box #1. 16. Insert the bench skirt between the left and right wall sections. 17. Pull loose cables towards the back wall, away from the bench skirt.
  • Page 14 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 9 ELECTRICAL CONNECTIONS - Beneath Bench, Right Corner 21. Connect the #4 cable from the distribution plate to the back wall #4 cable. 22. Connect the #5 cable from the distribution plate to the back wall #5 cable.
  • Page 15 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 10 30. From the master control box, turn ON the power switch. Figure 12. 31. Latch the bench skirt to the left and right walls. Figure 13. 32. Tuck the back edge of the bench seat beneath the back wall heater guard, then push the bench all the way to the back wall.
  • Page 16 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 11 INSTALLING FRONT WALL The front wall was included in Box #3. 34. Connect the threshold lighting strip cable #6 to the #6 cable located at the front right corner opening on the floor panel.
  • Page 17 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 12 INSTALLING CEILING The ceiling was included in Box #1. 45. From the top of the left, right, and back wall sections, Pull the ends of the cables out and over the outside edges.
  • Page 18 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 13 47. From the top of the ceiling, open the three (3) hatches located on the left, right, and back. ELECTRICAL CONNECTIONS - Ceiling, Back Left Corner 48. Fish out the four (4) cables from the hatch. 49.
  • Page 19 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 14 CONNECTING POWER Depending on the corresponding sauna room model, connect the sauna room power cord into either a 15 amp / 5-15R or 20 amp /5-20R receptacle. NOTE: Ensure the IR sauna room is connected to a dedicated circuit that is configured for the correct electrical rating.
  • Page 20 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 15 SECTION 6. OPERATING the CONTROL The instructions provided here are for operating an Aspire control. Figure 22. Control Icons APPLYING POWER Press the Power icon once. The default settings for the temperature is 149°F, the bath time is 60 minutes. These settings are adjustable (as described below) from 119°...
  • Page 21 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 16 LIGHTING OPERATION Press the Lights icon to cycle through lighting options. Sequence of colors are - White - Red - Green - Blue - Yellow - Aqua - Purple - Rotation of colors - Off. Make a color choice, then set brightness.
  • Page 22 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 17 SECTION 8. HOW TO TAKE A SAUNA • Devote adequate time to completely relax while taking a sauna bath. • Before using the sauna, avoid eating a large meal and intake of alcoholic beverages.
  • Page 23 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 18 SECTION 9. MAINTENANCE Inspect the sauna room at the end of each day of use to ensure the control and system are turned OFF. Keep the sauna room clean and odor free. Use towels or mats on benches and floor as perspiration otherwise penetrates the soft wood.
  • Page 24 KIRUNA™ 1 | 2 INSTALLATION and OPERATING INSTRUCTIONS Page 19 ©2024 Sauna360 Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sauna360 is under license. Apple® is a registered trademark of Apple Inc. Tylö®...
