INSTALLATION INSTRUCTIONS N-F98GLS-CVR

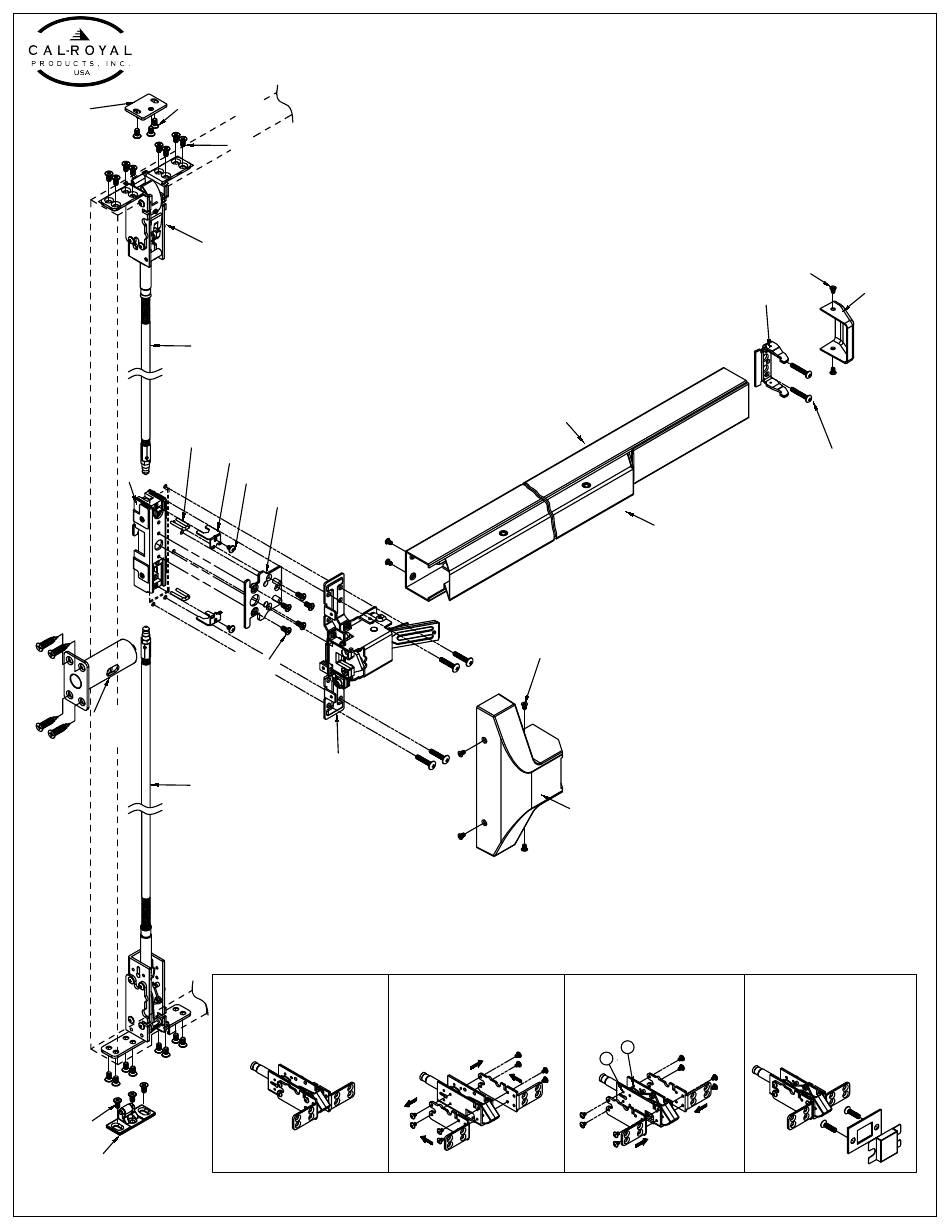

NARROW HEAD CONCEALED VERTICAL ROD EXIT DEVICE
Top Strike
Strike Screws
Top Latch
Top Rod
U pin
Inner
Chassis
Flat Head
FIRE
LATCH
ASS'Y
(SHORT)
Bottom
Rod
TO CHANGE BOTTOM LATCH FOR BOTTOM STRIKE
Strike
Screws
Bottom
Strike
Latch Screws
Connector fix plate
Screws
Inner Chassis
Fixed Plate
Screws
Main
Chassis
1.Device factory pre-set.
2-1.Unscrew and remove screw
2-2.The Mounting bracket
Mounting Rail
Head Cover Screws
Head Cover
NOTES:
• N-98GLS-CVR Exit Devices are intended for use with
Narrow Stile applications.
• If used for Regular Door/Frames, must cut down
device to size, use flange brackets (to be considered
fire rated), and follow installation for regular door/frame
applications.
3.Move the Mounting bracket
back to the (A) screw hole and
and Mounting bracket.
install and lock it.
move backward.
End Cap Screws
Mounting Plate
Push Rail
4.Change Done.
A
A
EDG-4079-07/23- 1of4
End Cap
Mounting Plate
Screws
