Cal-Royal N-F77CVR Installation Instruction

Cal-Royal N-F77CVR Installation Instruction

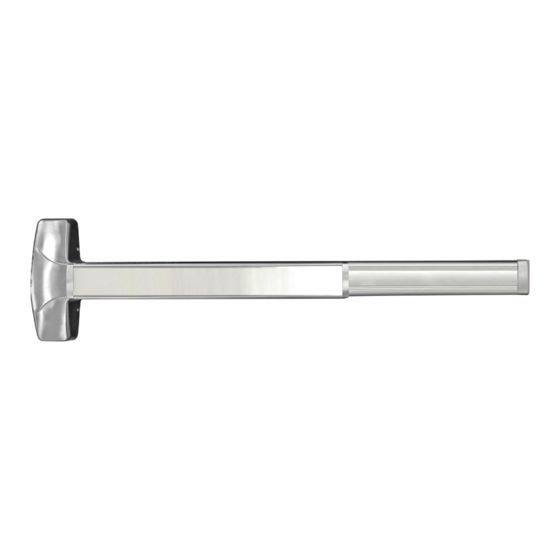

Concealed vertical rod exit device

Advertisement

TOP Strike
Strike Screws
Latch Screws
TOP Latch
TOP Rod
U-Pin
Connector fix plate
Inner
Screws
Chassis
Screws
Bottom
Rod
Bottom Latch
Latch
Screws
Strike
Screws
Bottom
Strike
INSTALLATION INSTRUCTION
N-F77CVR CONCEALED VERTICAL ROD
EXIT DEVICE
Main Chassis
TO CHANGE BOTTOM LATCH FOR BOTTOM STRIKE
1.Device factory pre-set.
Mounting Rail
Push Rail
Main Chassis Screws
Head Cover Screws
Head Cover
End Cap Screws
Mounting Plate
Bracket
Rail Mounting
Bracket Screw
Sliding Shim
4. Change Done.
DRWG. # EDG4017
End Cap
1-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-F77CVR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cal-Royal N-F77CVR

  • Page 1 INSTALLATION INSTRUCTION N-F77CVR CONCEALED VERTICAL ROD EXIT DEVICE TOP Strike Strike Screws Latch Screws End Cap Screws TOP Latch End Cap Mounting Plate Bracket TOP Rod Rail Mounting Bracket Screw U-Pin Sliding Shim Mounting Rail Connector fix plate Inner Screws...
  • Page 2 1.INSTALL INNER CHASSIS & TOP LATCH TOP Latch TOP Rod 5/32"-32 SCREWS (4pcs) Inner Chassis (TOP Latch must be under locked status during Step 3) (Insert Ø4.0mm Pin) under Inner Chassis while in depressed status (Keep the length of Top Rod Ass'y 3 to 5mm longer than upper door length) Adjust Top Rod Ass'y length Insert U-pin...
  • Page 3 2.INSTALL BOTTOM LATCH (Skip this step if less Bottom Rod) Attached Rod to Bottom latch (Keep the length of Bottom Rod Ass'y 3 to 5mm PUSH longer than upper door length) (Bottom Latch must be under unlocked status during 2-2 installation) Adjust Top Rod Ass'y length Insert U-pin Install latch screws...
  • Page 4 TO CHANGE HAND OF N-F77CVR EXIT DEVICE 1. LHR 2-1. Remove chassis pin & main slide & tube. 2-2. Remove lift lever & lift lever pin. 2-3. Rotate 180° main slide & lift lever main slide tube lift lever fixed screw...
