Summary of Contents for Seaward APOLLO 600+

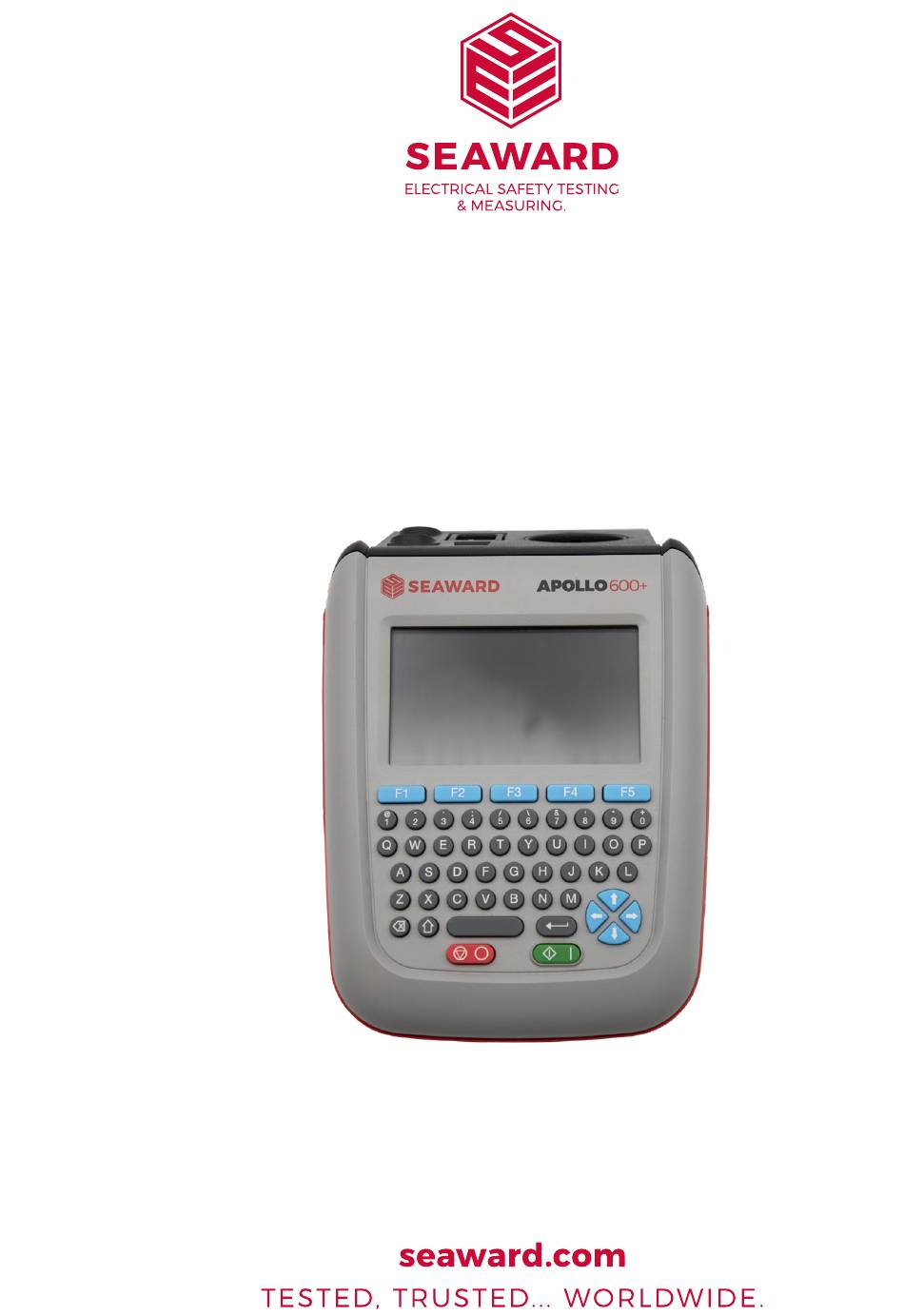

- Page 1 APOLLO 600+ QUICK START GUIDE To ensure safe and proper use of the instrument, read and follow the instructions in the related user manual. The user manual can be downloaded from our website https://www.gossenmetrawatt.de/en/service-support/download-center/...
-
Page 2: Important Safety Instructions
APOLLO 600+ IMPORTANT SAFETY INSTRUCTIONS The instrument has been built and tested in accordance with: BS EN 61010-1, BS EN 61010-2-030, andBS EN 61557 parts 1, 2, 4 and 10. Read and follow these instructions carefully and completelyin order to ensure safe and proper use. The instructions must be made available to all persons who use the instrument. - Page 3 • Instruments and accessories from Seaward Electronic Ltd. are designed to work optimally with the Seaward Electronic Ltd. products expressly intended for this purpose. Unless otherwise expressly confirmed in writing by Seaward Electronic Ltd., they are not intended or suitable for use with other products.
- Page 4 APOLLO 600+ IMPORTANT SAFETY INSTRUCTIONS Instrument-Internal Rechargeable Battery • Use rechargeable batteries in undamaged condition only. Risk of explosion and fire in the case of damaged rechargeable batteries! Inspect the rechargeable batteries before use. Pay particular attention to leaky and damaged rechargeable batteries. •...
- Page 5 Guide, or the manual, is contrary to use for intended purpose. Liability and Guarantee Seaward Electronic Limited assumes no liability for property damage, personal injury or consequential loss resulting from improper or incorrect use of the product, in particular due to failure to observe the product documentation. Furthermore, all guarantee claims are rendered null and void in such cases.
-
Page 6: Getting To Know Your Instrument
APOLLO 600+ GETTING TO KNOW YOUR INSTRUMENT Test Terminals Screen Function Keys F1 - F5 Keyboard Power Off / Stop Key Power On / Start Key Arrow Keys EUT Socket IEC Inlet Probe Socket 1 Mains Inlet / Probe Socket 2 USB B Port for PC Connection USB Flash Drive Port for Data Backup... - Page 7 QUICK START GUIDE GETTING TO KNOW YOUR INSTRUMENT Warning concerning a point of danger (attention, observe documentation)! Warning regarding electrical voltage European conformity marking The instrument may not be disposed of with household trash SEAWARD PG 7...
-
Page 8: What's In The Box
APOLLO 600+ WHAT’S IN THE BOX? × 1 Apollo 600+ Instrument × 1, not pictured Professional Carry Case × 1 Test Lead 1.2m with Alligator Clip, Red × 1 Test Lead 1.2m with Alligator Clip, Black × 1, not pictured IEC Extension Lead, 0.5m ×... -
Page 9: Before You Start
Switch on the instrument by pressing and holding, the green ON / START key. After 2-3 seconds the instrument will beep and the display will show a boot up screen. This is the Power ON button. This is the Power OFF button SEAWARD PG 9... -
Page 10: User Options
APOLLO 600+ USER OPTIONS (PAT SETTINGS) PAT Settings are used to setup standard user preferences, such as the options after each test. Page 2 allows the Comments, New User options can be accessed from the Home screen by selecting (F1) for Comments, CheckBox Interval and the Portable Appliance Testing window Comment Lines to be setup. - Page 11 QUICK START GUIDE MAIN MENU WINDOW - NAVIGATION The Menu window can be accessed from the Home screen by selecting (F4). There are 8 available options, in the Menu window. SEAWARD PG 11...
- Page 12 APOLLO 600+ MAIN MENU WINDOW – VIEW DATA This will allow you to view any data that you have saved in the instrument. By selecting View Data (1) in the Main Menu, you can view a list of all saved assets by Site, Location or Asset ID.
- Page 13 Press this button to Save changes and return to the previous screen. This is the Copy User function. This will copy the settings and preferences of the current user to a new user account. SEAWARD PG 13...
- Page 14 APOLLO 600+ MAIN MENU WINDOW – CONNECTING BLUETOOTH DEVICES The instrument can be connected to Bluetooth accessories including barcode scanners, printers, smart phones and RFID scanners. From the Home screen press the Select Printer field and choose your Menu key (F4) then press key printer from the list using the arrow number 3 to open the Bluetooth keys.
- Page 15 (and instrument), and is now ready to be printed. Alternative versions of To setup the printer that was paired the label can be selected using the in the earlier steps use the tools function key F3. function key F2. SEAWARD PG 15...
- Page 16 APOLLO 600+ PERFORMING AN ELECTRICAL SAFETY TEST – AUTO MODE From the Home screen select Enter the Site and Location (F1) to enter the Portable information using either the keypad Appliance Testing screen. or barcode scanner, and select the appropriate Retest Periods. Select Auto mode by pressing Press Accept F4 to move on to the (F2).
-
Page 17: Software Download
QUICK START GUIDE SOFTWARE DOWNLOAD Please download the supporting PATGuard 3 software: German version: https://gmc-i.link/patguard3 English version: https://www.seaward.com/gb/products/pat-testing/ software-and-apps/400a910-patguard-3 SEAWARD PG 17... -
Page 18: Technical Data
APOLLO 600+ TECHNICAL DATA General Dimensions W × H × L 150 × 100 × 230 mm Weight 1.5 kg Internal memory Up to 50,000 records and 2,000 photos Protective system according to IEC60529 IP40 Power supply Mains or instrument-internal rechargeable battery Measuring category 300 V / CAT II... - Page 19 Resolution: 0.01 MΩ Operating Error: ±5 % +5 counts (0.10 MΩ to 9.99 MΩ) ±10 % +5 counts (10.00 MΩ to 19.99 MΩ) Number of tests as per IEC 61557-2 (in case of battery operation): approx. 1,500. SEAWARD PG 19...
- Page 20 APOLLO 600+ TECHNICAL DATA Substitute (Alternative) Leakage Test Nominal Voltages: >25 VAC <50 V Display Range: 0.00 mA … 19.99 mA Measurement Range 0.20 mA … 19.99 mA Resolution: 0.01 mA Operating Error: ± 10% +2 digits Protective Conductor Current (IPE) Measurement Method Differential Leakage Current Test Voltage:...
- Page 21 ±1 ms External Leakage Current (Adapter 3~) Test Voltage: Connected to External Adapter Display Range: 0 mA … 9.00 mA Measurement Range: 0.25 mA … 9.00 mA Resolution: 0.01 mA Operating Error: ±5 % of reading ±2 digits SEAWARD PG 21...
-
Page 22: Disposal And Environmental Protection
APOLLO 600+ DISPOSAL AND ENVIRONMENTAL PROTECTION Proper disposal makes an important contribution to the protection of our environment and the conservation of natural resources. ATTENTION Environmental Damage Improper disposal results in environmental damage. • Follow the instructions concerning return and disposal included in this section. We recommend retaining the respective packaging materials for the case that you might require servicing or calibration in the future. - Page 23 Further information regarding returns can be found under https://www.gossenmetrawatt.de/en/about-us/company/product-returns/. Rest Of World: Comply with the respective local requirements for disposal and implement them correctly on site. Further information can be obtained, for example, from the responsible authorities or the local distributor. SEAWARD PG 23...
-
Page 24: Service And Calibration
The instrument is fully calibrated and found to be within the specified performance and accuracy at the time of production. The Seaward Group provides its products through a variety of channels; therefore it may be possible that the calibration date on the provided certificate may not represent the actual date of first use. -
Page 25: Regulatory Information
QUICK START GUIDE REGULATORY INFORMATION CE Declaration CE DECLARATION OF CONFORMITY 380A949 APOLLO 600+ SCHUKO ASSEMBLED INSTRUMENT Manufacturer: Seaward Electronic Ltd 15/18 Bracken Hill South West Industrial Estate Peterlee County Durham SR8 2SW The object of the declaration described above is in conformity with the relevant Union harmonisation legislations 2014/53/EU and 2011/65/EU. - Page 26 Trademarks The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Seaward Electronic Limited is under licence. Wi-Fi is a registered trademark of Wi-Fi Alliance®. All trademarks, registered trademarks, logos, product names, and company names...
- Page 27 QUICK START GUIDE REGISTER YOUR APOLLO 600+ NOW To register your instrument and to activate your 2 year warranty please go to seaward.com/register SEAWARD PG 27...
- Page 28 APOLLO 600+ seaward.com PART NO: 380A5543 / REV 1 (02/2025) PG 28 TESTED. TRUSTED… WORLDWIDE.
