QT-15XW

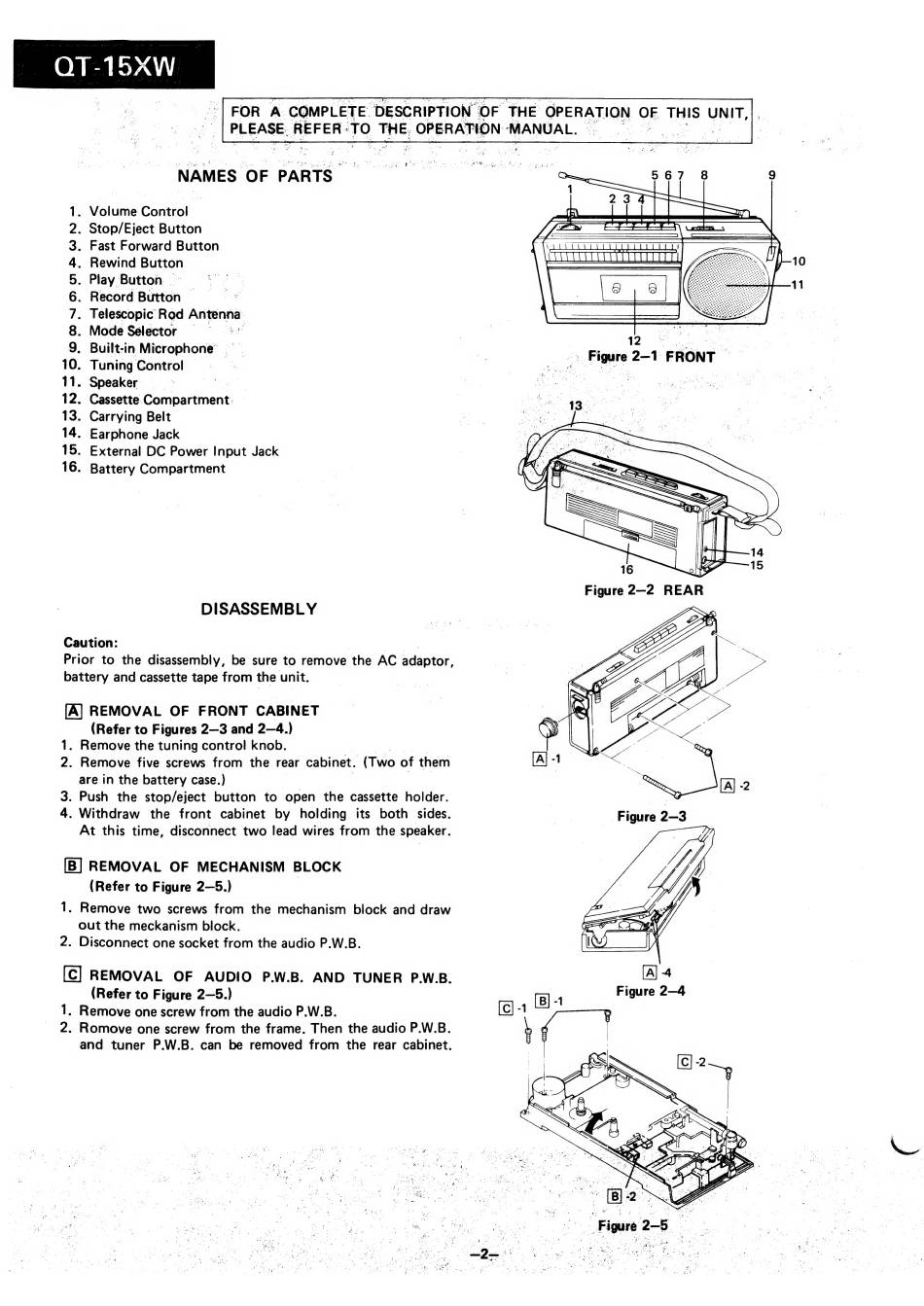

NAMES: OF PARTS ~
FOR A COMPLETE. DESCRIPTION 'OF THE OPERATION | OF. tals ree
PLEASE. REFER: TO IME, OPERATION: MANUAL.
. Volume Control
. Stop/Eject Button
. Fast Forward Button
Rewind Button
. Play Button =
. Record Button |
. Telescopic Rod Hoenn
. Mode Selector _ @
. Built-in Microphone' -
10. Tuning Control
11. Speaker tae:
12. Cassette Compa rtment.
13. Carrying Belt
14. Earphone Jack
15. External DC Power Input Jack
16. Battery Compartment
DISASSEMBLY
Caution:
Prior to the disassembly, be sure to remove 'the AC adaptor.
battery and cassette tape from the unit.
[A] REMOVAL OF FRONT CABINET
(Refer to Figures 2—3 and 2—4.)
1. Remove the tuning control knob.
2. Remove five screws from the rear cabinet. (Two of them
are in the battery case.)
3. Push the stop/eject button to open the cassette holder.
4. Withdraw the front cabinet by holding its both sides.
At this time, disconnect two lead wires from the speaker.
REMOVAL OF MECHANISM BLOCK
(Refer to Figure 2—5.)
1. Remove two screws from the mechanism block and draw
out the meckanism block.
2. Disconnect one socket from the audio P.W.B.
