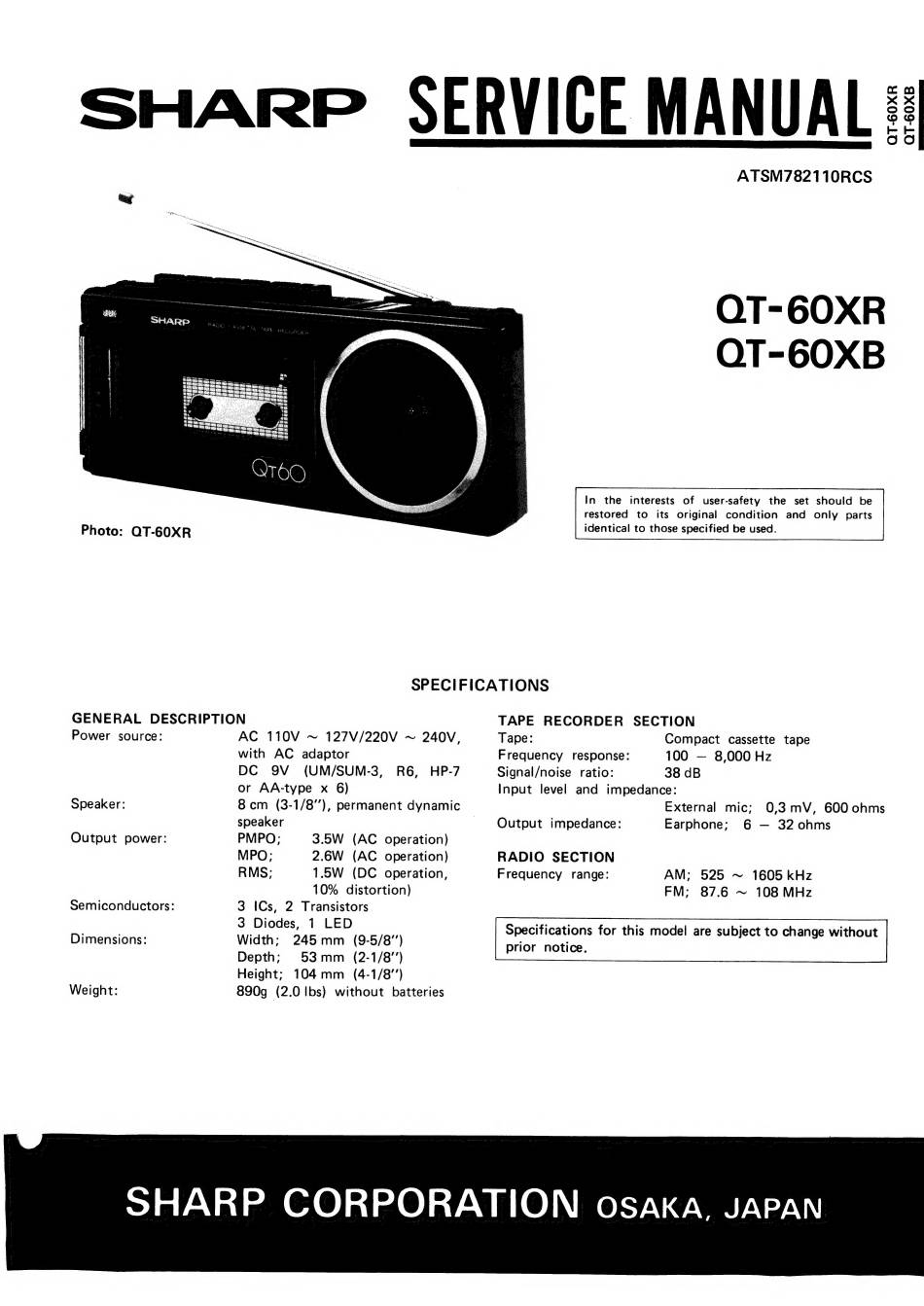

Sharp QT-60XR Service Manual

ATSM782110RCS
QT-60XR
QT-60XB
In the interests of user-safety the set should be
restored to its original condition and only parts
identical to those specified be used.
SPECIFICATIONS
GENERAL DESCRIPTION
Power source:
Speaker:
Output power:
Semiconductors:
Dimensions:
Weight:
AC 110V ~ 127V/220V ~ 240V,
with AC adaptor
DC 9V (UM/SUM-3, R6, HP-7
or AA-type x 6)
8cm (3-1/8), permanent dynamic
speaker
PMPO; 3.5W (AC operation)
MPO; 2.6W (AC operation)
RMS; 1.5W (DC operation,
10% distortion)
3 ICs, 2 Transistors
3 Diodes, 1 LED
Width; 245mm (9-5/8)
Depth; 53mm (2-1/8'')
Height; 104mm (4-1/8"')
890g (2.0 Ibs) without batteries
TAPE RECORDER SECTION
Tape: Compact cassette tape
Frequency response: 100 — 8,000 Hz
Signal/noise ratio: 38 dB
Input level and impedance:
External mic; 0,3 mV, 600 ohms
Output impedance: Earphone; 6 — 32 ohms
RADIO SECTION
Frequency range: AM; 525 ~ 1605 kHz
FM; 87.6 ~ 108 MHz
Specifications for this model are subject to change without
prior notice.
SHARP CORPORATION OSAKA. JAPAN
