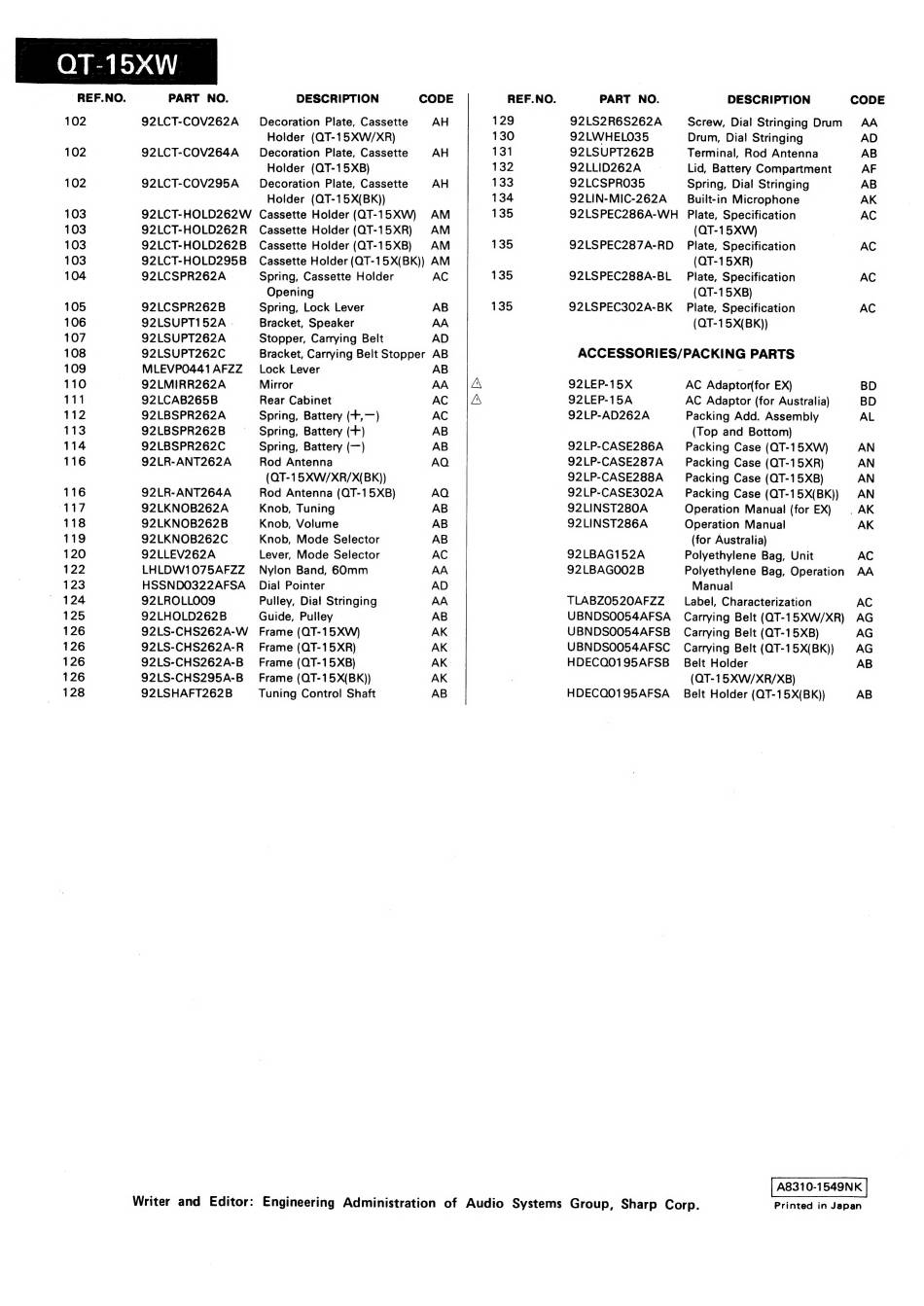

Sharp QT-15XW Service Manual page 12

QOT-15XW
-REF.NO. PART NO. DESCRIPTION CODE REF.NO. PART NO. DESCRIPTION CODE
102 92LCT-COV262A Decoration Plate, Cassette AH 129 92LS2R6S262A Screw, Dial Stringing Drum AA
Holder (QT-15XW/XR) 130 92LWHELO35 Drum, Dial Stringing AD
102 92LCT-COV264A Decoration Plate, Cassette AH 131 92LSUPT262B Terminal, Rod Antenna AB
Holder (QT-15XB) 132 92LLID262A Lid, Battery Compartment AF
102 92LCT-COV295A _— Decoration Plate, Cassette AH 133 92LCSPRO35 Spring, Dial Stringing AB
Holder (QT-15X(BK)) 134 92LIN-MIC-262A — Built-in Microphone AK
103 92LCT-HOLD262W Cassette Holder (QT-15XW) AM 135 92LSPEC286A-WH Plate, Specification AC
103 92LCT-HOLD262R_ Cassette Holder (QT-15XR) AM (QT-15XW) |
103 92LCT-HOLD295B Cassette Holder (QT-15X(BK)) AM (QT-15XR)
104 92LCSPR262A Spring, Cassette Holder AC 135 92LSPEC288A-BL Plate, Specification AC
Opening (QT-15XB)
105 92LCSPR262B Spring, Lock Lever AB 135 92LSPEC302A-BK Plate, Specification AC
106 92LSUPT152A . Bracket, Speaker AA (QT-15X(BK))
107 92LSUPT262A Stopper, Carrying Belt AD
108 92LSUPT262C Bracket, Carrying Belt Stopper AB ACCESSORIES/PACKING PARTS
109 MLEVP0441AFZZ Lock Lever AB :
110 — 92LMIRR262A Mirror AA |A 92LEP-15X AC Adaptor(for EX) BD
111 92LCAB265B Rear Cabinet AC |A 92LEP-15A AC Adaptor (for Australia) BD
112 92LBSPR262A Spring, Battery (+,—) AC 92LP-AD262A Packing Add. Assembly AL
113 92LBSPR262B = Spring, Battery (+) AB (Top and Bottom)
114 92LBSPR262C Spring, Battery (—) AB 92LP-CASE286A Packing Case (QT-15XW) AN
116 92LR-ANT262A Rod Antenna AQ 92LP-CASE287A Packing Case (QT-15XR) AN
(QT-15XW/XR/X(BK)) 92LP-CASE288A Packing Case (QT-15XB) AN
116 92LR-ANT264A Rod Antenna (QT-15XB) AQ 92LP-CASE302A = Packing Case (QT-15X(BK)) AN
117 92LKNOB262A Knob, Tuning AB 92LINST280A Operation Manual (for EX) . AK
118 92LKNOB262B Knob, Volume AB 92LINST286A Operation Manual AK
119 92LKNOB262C Knob, Mode Selector AB (for Australia)
120 92LLEV262A Lever, Mode Selector AC 92LBAG152A Polyethylene Bag, Unit AC
122 LHLDW1075AFZZ Nylon Band, 60mm AA 92LBAGO02B Polyethylene Bag, Operation AA
123 HSSNDO322AFSA Dial Pointer AD Manual
124 92LROLLOOS Pulley, Dial Stringing AA TLABZO520AFZZ Label, Characterization AC
125 92LHOLD262B Guide, Pulley AB UBNDSOO54AFSA Carrying Belt (QT-15XW/XR) AG
126 92LS-CHS262A-W Frame (QT-15XW) AK UBNDSOOS4AFSB Carrying Belt (QT-15XB) AG
126 92LS-CHS262A-R_ Frame (QT-15XR) AK UBNDSOOS54AFSC Carrying Belt (QT-15X(BK)) AG
126 92LS-CHS262A-B Frame (QT-15XB) AK HDECQO195AFSB Belt Holder AB
126 92LS-CHS295A-B Frame (QT-15X(BK)) AK : (QT-15XW/XR/XB)
128 92LSHAFT262B Tuning Control Shaft AB HDECQO195AFSA Belt Holder (QT-15X(BK)) AB
A8310-1549NK
