FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE
REFER TO THE OPERATION MANUAL.
GENERAL
DC 3 V (UM/SUM-3, R6, HP-7 or
Power source:
" AA" cell x 2 or external DC 3 V)
Power source:
D C 3 V KJM/SUM-3 or R6 x 2 or
external DC 3 V)
Output power:
M a x ; 6 0 mW (30 mW + 30 mW)
(DC operation)
Output power:
M a x ; 6 0 mW (30 mW + 30 mW)
(DIN 45 324)
(DC operation)
(DC operation)
Dimensions:
W idth; 85 mm (3-3/8" )
Height; 121 mm (4-25/32" )
Depth; 36.5 mm (l-7/16" )
Weight:
280 g (9.9 oz.) without batteries
RADIO
Frequency range:
FM; 87.6 - 108 MHz
AM; 526.5 - 1606.5 kHz
Frequency range:
FM; 87.5 - 108 MHz
AM; 526.5 - 1,606.5 kHz

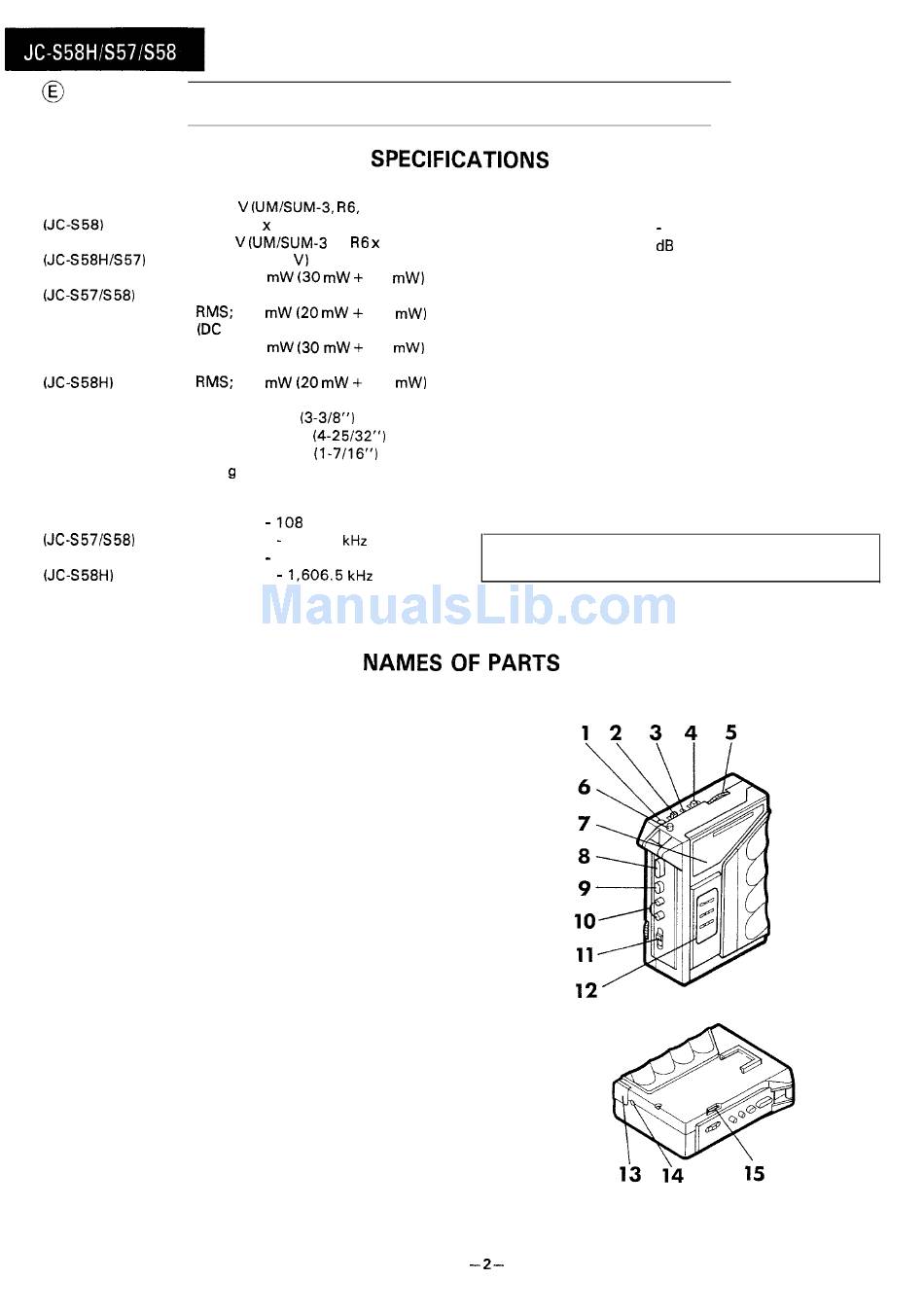

1. Headphones Socket
2. Function Selector Switch
3. Power/Battery Indicator
4. Band Selector Switch
5. Tuning Control
6. Tape Direction Button
7. Cassette Compartment
8. Play Button
9. Stop Button
10. Fast Forward/Rewind Buttons
11. Reverse Mode Switch
12. Graphic Equalizer
13. Battery Compartment
14. External DC Power Input Socket
15. Volume Control
TAPE DECK
Tape:
Compact cassette tape
Frequency response: 40 - 10,000 Hz
Signal/noise ratio:
54 dB
HEADPHONES
Type:
Over-head
Impedance:
32 ohms
Specifications for this model are subject to change with-
out prior notice.
