Names Of Parts; Fitting Of Dial Pointer - Sharp WF-930Z(BK) Service Manual

Hide thumbs

Advertisement

1. Extra Bass Control: X-BASS
2. Graphic Equalizer Controls
3. FM Stereo Indicator
4. Power Indicator
5. Function Selector Switch
6. Volume Control
7. Dubbing Speed/Built-in Microphone Switch
8. Built-in Microphone
9. Tuning Control
10. Fine Tuning Control
11. Band Selector Switch
12. Headphones Socket
13. Mixing Microphone Socket
14. FM Mode Switch
15. (TAPE 1) Cassette Compartment
16. (TAPE 1) Record Button: I
17. (TAPE 1) Play Button: 0 0
18. (TAPE 1) Rewind Button: 3
19. (TAPE 1) Fast Forward Button: 2
20. (TAPE 1) Stop/Eject Button:
21. (TAPE 1) Pause Button: 6
22. (TAPE 2) Play Button: 0 0
23. (TAPE 2) Rewind Button: 3
24. (TAPE 2) Fast Forward Button: 2
25. (TAPE 2) Stop/Eject Button:
26. (TAPE 2) Cassette Compartment
27. CD/Line Input Sockets
28. Beat Cancel Switch
29. FM/SW Telescopic Rod Aerial
30. Speaker Terminals
31. AC Voltage Selector
32. AC Power Input Socket
33. Battery Compartment
34. Tweeter
35. Woofer
36. Speaker Release Lever
37. Speaker Wire
1. Remove the main PWB. Attach the dial pointer as shown arrow
 on the front cabinet, putting it into the section indicated by arrow
È. Insert it between the arrows Ê.
2. Install the main PWB in the front cabinet and secure it with the two
screws.
3. Turn the dial drum in the direction indicated by arrow Ë. Set the
dial pointer to point "0", and then make the rest of the adjustments.

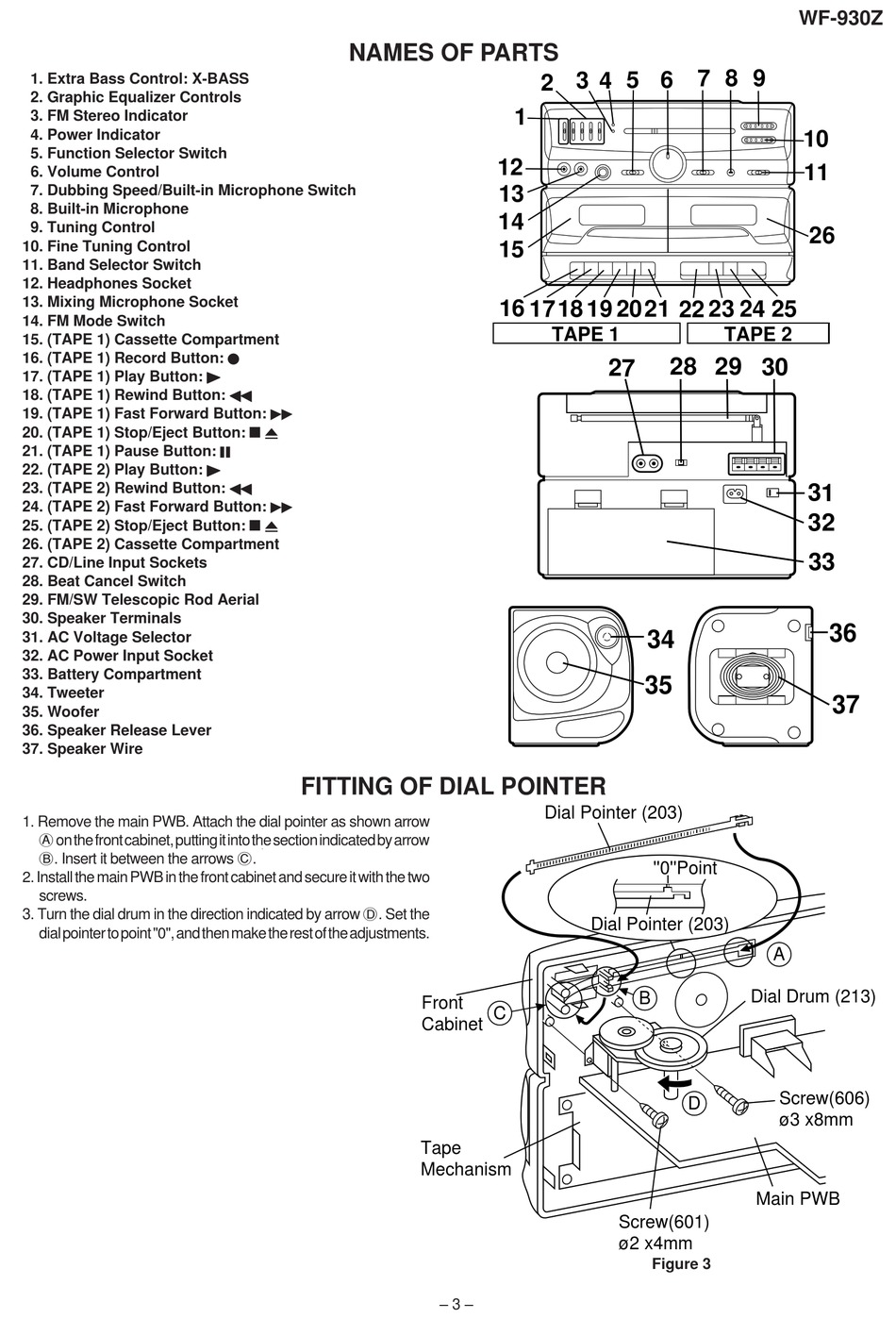

NAMES OF PARTS

3
7
3
7

FITTING OF DIAL POINTER

2 3 4 5 6 7 8 9
1
12
13
14
15
16 1718 19 2021 22 23 24 25
TAPE 1
Dial Pointer (203)
Front
C
Cabinet
Tape
Mechanism
– 3 –
TAPE 2
28 29 30
27
34
35
''0''Point
Dial Pointer (203)
Dial Drum (213)
B
D
Main PWB
Screw(601)
ø2 x4mm
Figure 3
WF-930Z
10
11
26
31
32
33
36
37
A
Screw(606)
ø3 x8mm
