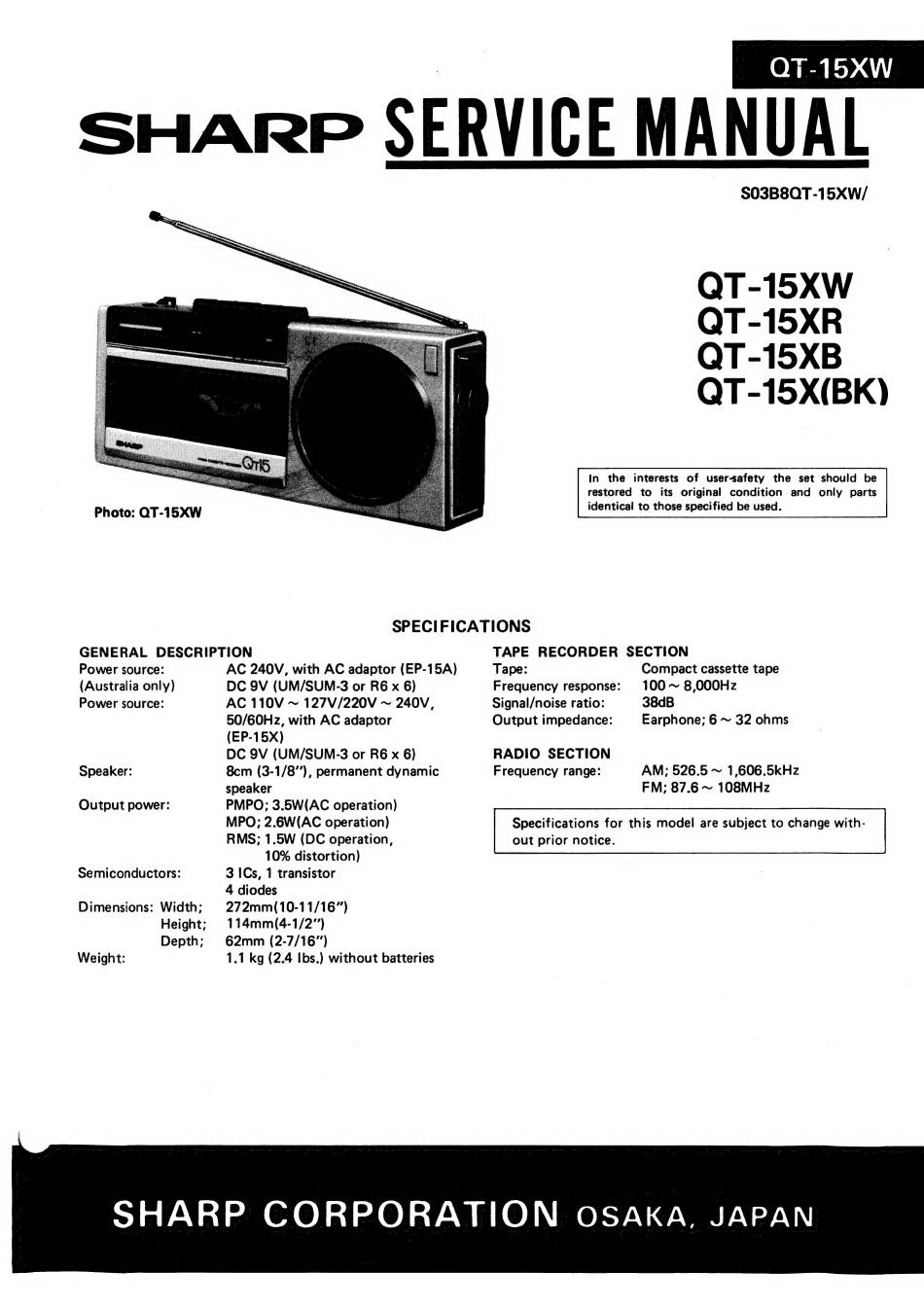

Sharp QT-15XW Service Manual

SO3B8QT-15XW/
QT-15XW
QT-15XR
QT-15XB
QT-15X(BK)
in the interests of user-safety the set should be
restored to its original condition and only parts
Photo: OT-15XW aa | identical to those specified be used.
SPECIFICATIONS
GENERAL DESCRIPTION TAPE RECORDER SECTION
Power source: AC 240V, with AC adaptor (EP-15A) Tape: Compact cassette tape
(Australia only) DC 9V (UM/SUM-3 or RE x 6) Frequency response: 100~ 8,000Hz
Power source: AC 110V ~ 127V/220V ~ 240V, Signal/noise ratio: 38dB
50/60Hz, with AC adaptor Output impedance: Earphone; 6 ~ 32 ohms
(EP-15X)
DC 9V (UM/SUM-3 or R6 x 6) RADIO SECTION
Speaker: 8cm (3-1/8), permanent dynamic Frequency range: AM; 526.5 ~ 1,606.5kHz
speaker FM; 87.6 ~ 108MHz
Output power: PMPO; 3.5W(AC operation)
MPO; 2.6W(AC operation) Specifications for this model are subject to change with-
RMS; 1.5W (DC operation, out prior notice.
10% distortion)
Semiconductors: 3 1Cs, 1 transistor
4 diodes
Dimensions: Width; 272mm(10-11/16")
Height; 114mm(4-1/2")
Depth; 62mm (2-7/16")
Weight: 1.1 kg (2.4 Ibs.) without batteries
SHARP CORPORATION OSAKA, JAPAN
