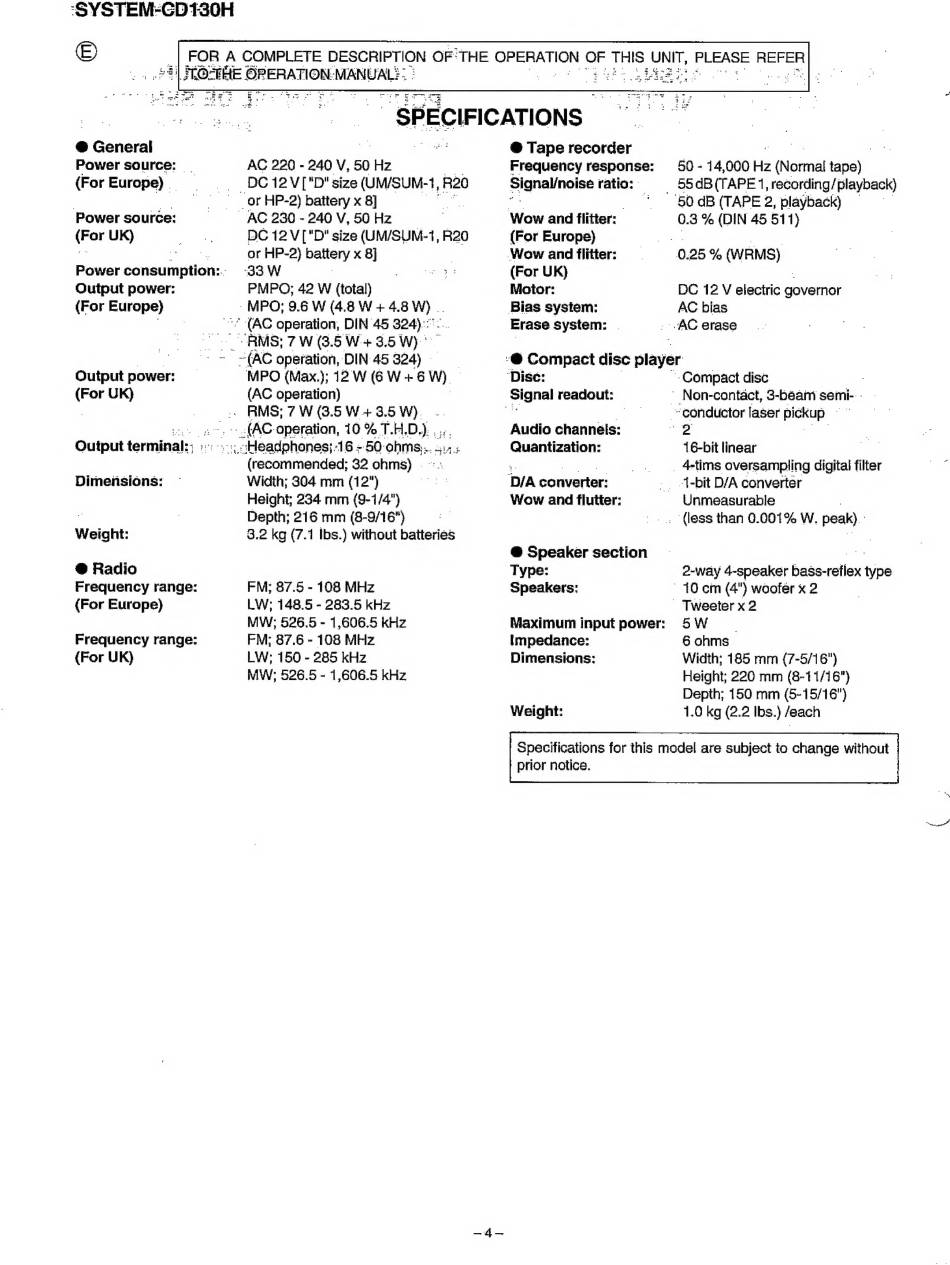

Sharp SYSTEM-CD130H Service Manual page 4

'"SYSTEM-GD130H
© _ | FOR A COMPLETE DESCRIPTION OF: THE OPEN al THs. ee Moria REPER
24) LOTBRE OPERATION. MANUAL? ; nee ae a e
7 "SPECIFICATIONS:
@ General @ Tape recorder St so
Power source: _ AC 220 - 240 V, 50 Hz Frequency response: 50 - 14,000 Hz (Normal tape)
(For Europe) = & DC 12V["D" size (UM/SUN- 1, R20 Signal/noise ratio: = 55dB(TAPE1, recording/ playback)
| - ~ or HP-2) battery x 8] ae + "50 dB (TAPE 2, playback) —
Power source: AC 230 - 240 V, 50 Hz Wow and flitter: 0.3 % (DIN 45 511)
(For UK) DC 12 V["D" size (UM/SUM-1, R20 (For Europe) Ae a
i eet or HP-2) battery X 8] Wow and flitter: 0.25 % (WRMS)
Power consumption:- 33W (For UK) .
Output power: PMPO; 42 W (total) Motor: DC 12 V electric governor
(For Europe) - MPO; 9.6 W (4.8 W + 4.8 ie . Bias system: AC bias
* (AC operation, DIN 45 324):-" Erase system: AC erase
RMS; 7 W (3.5 W-+ 3.5 W) ©
en (AC operation, DIN 45 324) -@ Compact disc player
Output power: MPO (Max.); 12 W (6W+6 Ww). 'Dise: Compact disc
(For UK) (AC operation) Signal readout: ~ Non-contact, 3-béam semi-.- -
» RMS; 7WB.5W+35W) -. co . conductor laser pickup ~~
un av. (AC- operation, 10 % T.H,D,). .., Audio channels: aS _
Output terminal:; |: -.-:, -Headphones;:16 - 50-ohms:... i; Quantization: 16-bit linear
(recommended; 32 ohms) . ~-: 1 a _. 4+tims oversampling digital filter
Dimensions: Width; 304 mm (12") D/A converter: __ |-bit D/A converter
Height; 234 mm (9-1/4") Wow and flutter: Unmeasurable
; Depth; 216 mm (8-9/16") -... (less than 0.001% W. peak).
Weight: 3.2 kg (7.1 Ibs.) without batteries
@ Speaker section tina
@ Radio Type: 2-way 4-speaker bass-reflex type
Frequency range: FM; 87.5 - 108 MHz Speakers: 10 cm (4") woofer x 2
(For Europe) LW; 148.5 - 283.5 kHz - Tweeter x 2
MW; 526.5 - 1,606.5 kHz Maximum input power: 5W ©
Frequency range: FM; 87.6 - 108 MHz Impedance: 6 ohms
(For UK) LW; 150 - 285 kHz Dimensions: Width; 185 mm (7-5/16")
MW; 526.5 - 1,606.5 kHz Height; 220 mm (8-11/16")
Depth; 150 mm (5-15/16")
Weight: 1.0 kg (2.2 Ibs.) /each
Specifications for this model are subject to change without
prior notice.
