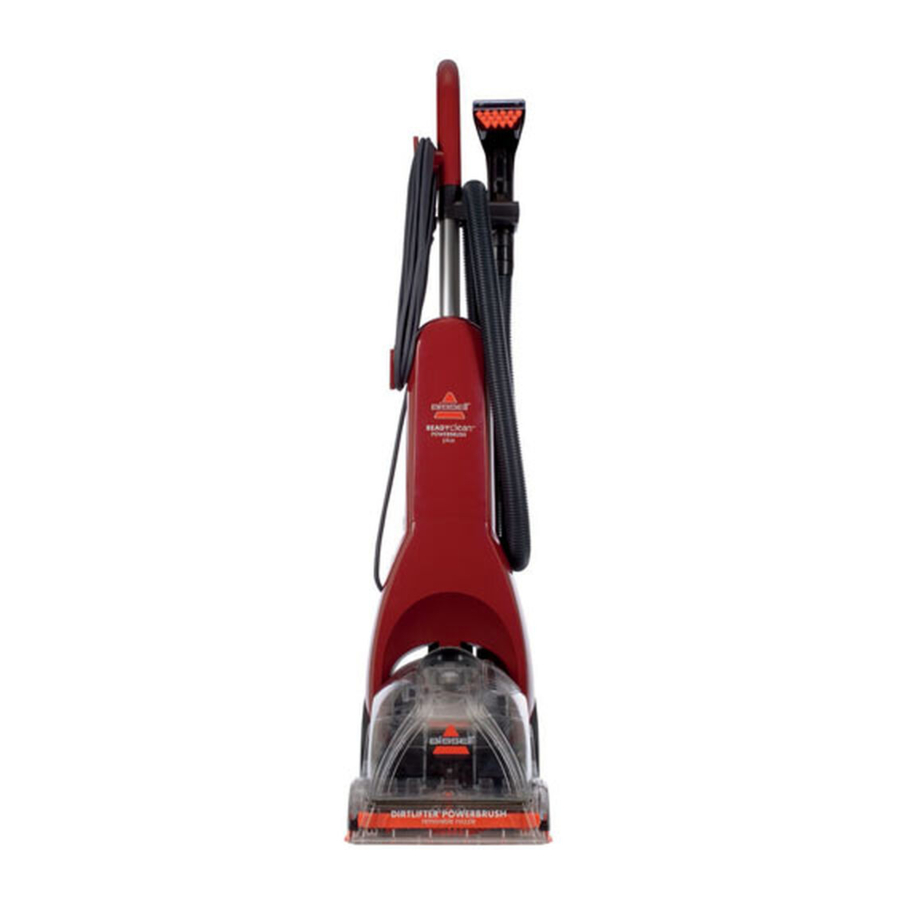

Bissell ReadyClean PowerBrush Plus 16W5 Series Manual

Introduction

We're glad you purchased a BISSELL Deep Cleaner. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system.
Your BISSELL Deep Cleaner is well made, and we back it with a limited one year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you'll receive fast, considerate assistance.
My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your Deep Cleaner.
Mark J. BISSELL
Chairman, President & CEO

Cleaning fluid
Keep plenty of genuine BISSELL 2X formula on hand so you can clean and protect whenever it fits your schedule. always use genuine BISSELL deep cleaning formulas. non-BISSELL cleaning solutions may harm the machine and will void the warranty.

Assembly

Your Ready Clean Powerbrush Plus assembles quickly and easily. The only tool you will need for assembly is a Phillips head screwdriver.

1. slide upper body onto lower body.

2. secure with screws.

3. attach hose wrap to upper handle by sliding it up the bottom of the handle until it snaps firmly in place.

4. slide upper handle into upper body, until it will not go any further and secure with screw.

5. Place solution tank on back of unit.

6. Wrap power cord and flex hose.

7. Keep flex hose snugly in place by using the hose secure latch.

8. attach tool to end of hose.


Assembly is now complete.

Operations

Before you clean

1. Move furniture to another area if cleaning an entire room. (optional)
2. Vacuum carpet thoroughly.
3. Plan your cleaning route to leave an exit path. it is best to begin cleaning in the corner farthest from your exit.
4. Pre-Treating (optional) Pre-treat stubborn stains and highly soiled carpet in hallways and other high-traffic areas.
   1. generously spray BISSELL tough stain Precleaner evenly over soiled area.

      DO NOT OVER WET CARPET
   2. Wait 3-5 minutes before deep cleaning.

To reduce the risk of fire, use only BISSELL advanced deep cleaning formula for full size machines in your deep cleaner. Use of cleaning formulas that contain lemon or pine oil may damage this appliance and void the warranty. Chemical spot cleaners or solvent-based soil removers should not be used. These products may react with the plastic materials used in your deep cleaner causing cracking or pitting.

Fill the tank

1. Remove the solution tank by lifting it straight up, then away from the lower body.

2. Unscrew the black cap at the bottom of the solution tank.

3. Fill with hot (not boiling) tap water to the WateR line. fill the rest of the tank with BISSELL 2X formula to the foRmula line. Replace and tighten the black cap.

4. Place solution tank on lower body.


Carpet cleaning

1. set Readytools dial to "flooR cleaning".

2. plug into proper outlet.
3. turn the power switch to the on (i) position (located on the back of unit)

4. with foot, press the recline lever (located on the back of unit).
5. cleaning strokes. While pressing the trigger, make one slow forward wet pass and another one back. caution: do not overwet.

   To reduce the risk of fire, use only BISSELL advanced deep cleaning formula for full size machines in your deep cleaner. Use of cleaning formulas that contain lemon or pine oil may damage this appliance and void the warranty. Chemical spot cleaners or solvent-based soil removers should not be used. These products may react with the plastic materials used in your deep cleaner causing cracking or pitting.

6. Release the trigger and make one slow forward and backward pass over the same area.
7. Repeat steps 5 and 6 until solution being pulled up appears clean.
8. empty the collection tank when dirty water reaches the full line, or when the solution tank is empty.

Empty the collection tank

1. turn power switch off (o) and unplug power cord from outlet.
2. Remove the collection tank from base of unit.
   1. Release collection tank latches (on each side) by pulling up from the bottom of latch and then out.

   2. carefully remove the top of the tank by lifting up on the tank handle.

3. carry collection tank to a toilet or sink. to empty, pour out contents using opening at back of tank.

4. Rinse collection tank thoroughly and replace on unit.
5. Refill solution tank and continue cleaning.

Cleaning with Attachments
Your Deep Cleaner is equipped with a hose and at least one attachment for cleaning stairs, upholstery, and more.

1.
   if using to clean upholstery, check upholstery tags.
   1. check manufacturer's tag before cleaning. "W" or "Ws" on the tag means you can use your deep cleaner. if the tag is coded with an "X" or an "s" (with a diagonal stripe through it), or says "dry clean only", do not proceed with any deep cleaning machine. do not use on velvet or silk. if manufacturer's tag is missing or not coded, check with your furniture dealer.
   2. check for colorfastness in an inconspicuous place.
   3. if possible, check upholstery stuffing. colored stuffing may bleed through fabric when wet.
   4. Plan activities to allow upholstery time to dry.
   5. Vacuum area thoroughly.
2. follow the instructions for filling the tank.
3. set the Readytools dial to the "tools" setting.

4. attach the cleaning tool to the end of the hose.

5. Plug in and turn the power switch to the on (i) position.
6. clean by pressing the trigger to spray solution onto the area to be cleaned. slowly move the tool back and forth over the soiled surface. Release the trigger to suction dirty water. continue to clean in the area, working in small sections, until dirt is removed.

   Do Not Overwet.
7. When finished cleaning, remove and rinse tool(s) in clean, running water.
8. it is recommended that you suction clean water from a bowl to rinse out the hose.
9. lift end of hose and stretch out to ensure all water is cleared from hose.

10. Wrap flex hose around hose wrap.
11. empty collection tank and rinse out, following instructions under "cleaning after use."
12. Return Readytools dial to "flooR cleaning" setting.

Deep reach tool attachment
(select models only)

1. follow the instructions for filling the tank.
2. follow instructions 1-5 under "cleaning with attachments".
3. set tool on stain and press the trigger to spray solution onto the area to be cleaned.

4. slowly move the tool back and forth over the soiled surface, keeping the tool in contact with the carpet.
5. Release trigger and move tool slowly over the soiled area to suction up water and dirt.

6. continue to clean the area, working in small sections, until no more dirt can be removed.
7. Remove tool from hose when finished. clean under warm water before storing

8. follow cleaning attachment instructions.

Hard floor cleaning
(select models only)

to reduce the risk of fire and electric shock- when cleaning a hard floor, the bissell hard floor tool (203-5639) must be used and it must only be used with bissell 2X hard floor solutions cleaning fluid intended for use with this appliance.

1. Remove the collection tank (refer to steps 2a and 2b).
2. attach the hard floor tool by hooking it into the front of the removable nozzle and rotate until it snaps firmly in place.

3. Replace the collection tank. be sure to attach the two latches.
4. fill the solution tank with hot (not boiling) tap water to the WateR fill line. fill the rest with BISSELL 2X hard floor solutions™ to foRmula fill line.

5. follow steps 1-8 under "carpet cleaning" to continue cleaning.

Cleaning after use

1. unplug the unit.
2. Rinse collection tank thoroughly.
   1. Remove Readytools dial by rotating it halfway between "tools" & "flooR cleaning."

   2. Pop out knob by using the opening on the back of the tank. Rinse and replace knob and collection tank.

3. Remove tank vent & foam filter (located on top of the collection tank) and rinse.

4. clean nozzle window by lifting latch and removing from machine. Rinse under running water.

5. When finished replace nozzle and secure with latch.
   NOTE: For best results, it is recommended that the nozzle is cleaned after each use.

6. Remove lint and hair from red gasket in base of unit. (do not remove gasket)

7. Replace the collection tank to the base of the machine and secure with latches.

Maintenance and care

Machine storage
For best results, a few simple steps can assure your machine is well maintained after your cleaning is complete.

To reduce the risk of injury from moving parts and/or electrical shock, turn power switch OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting checks.

1. Wrap power cord around Quick Release cord Wrap™ on side of the machine.
2. Wipe all surfaces with a soft cloth. store cleaner upright in a protected, dry area.
   NOTE: You may have cleaning solution remaining in the solution tank. You may store your machine this way for the next cleaning task, but never keep dirty water in the collection tank.

Do not store unit where freezing may occur. Damage to internal components may result.

Install the replacement brush belt

1. turn the machine off and unplug from wall outlet.
2. Remove solution and collection tanks.
3. lie machine down to access the bottom of the machine.
4. With a Phillips head screwdriver, unscrew the belt cover and remove.

5. Remove the brush end cap and remove belt from brush.

6. brush can now be removed.
7. belt can be removed by sliding off the motor pulley.
8. clean or replace belt. attach belt to motor pulley and brush, insert brush into right side end cap.
9. Reattach the left end cap and slide brush back into place.
10. Replace the belt cover and screw into place.

11. manually rotate brush to make sure it rotates freely and that the belt is aligned properly.

Troubleshooting

Reduced Spray OR No Spray in Upright Mode

Reduce Spray or No Spray Attachment

Deep cleaner not picking up cleaning solution

Other maintenance or service not included in the manual should be performed by an authorized service representative.
Please do not return this product to the store.
For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691.

Replacement parts - BISSELL ReadyClean

Below please find a list of common replacement parts. While not all of these parts may have come with your specific machine, all are available to you for purchase, if desired.

*Not all parts are included with every model.

Accessories - BISSELL ReadyClean

*not all parts are included with every model.

Don't forget to register your product!
Registering is quick, easy and offers you benefits over the lifetime of your product. you'll receive:
BISSELL Rewards Points
automatically earn points for discounts and free shipping on future purchases.
Faster Service
supplying your information now saves you time should you need to contact us with questions regarding your product.
Product Support Reminders and Alerts
We'll contact you with any important product maintenance reminders and alerts.
Special Promotions
optional: Register your email to receive notice of offers, contests, cleaning tips and more!
Visit www.BISSELL.com/registration now!

BISSELL consumer services
For information about repairs or replacement parts, or questions about your warranty, call:
BISSELL Consumer Services
1-800-237-7691
Monday - Friday 8 a.m. — 10 p.m. ET Saturday 9 a.m. — 8 p.m. ET
Or write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids MI 49501
ATTN: Consumer Services
Or visit the BISSELL website - www.BISSELL.com
When contacting BISSELL, have model number of cleaner available.
Please record your Model Number:
Please record your Purchase Date:
NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim.
