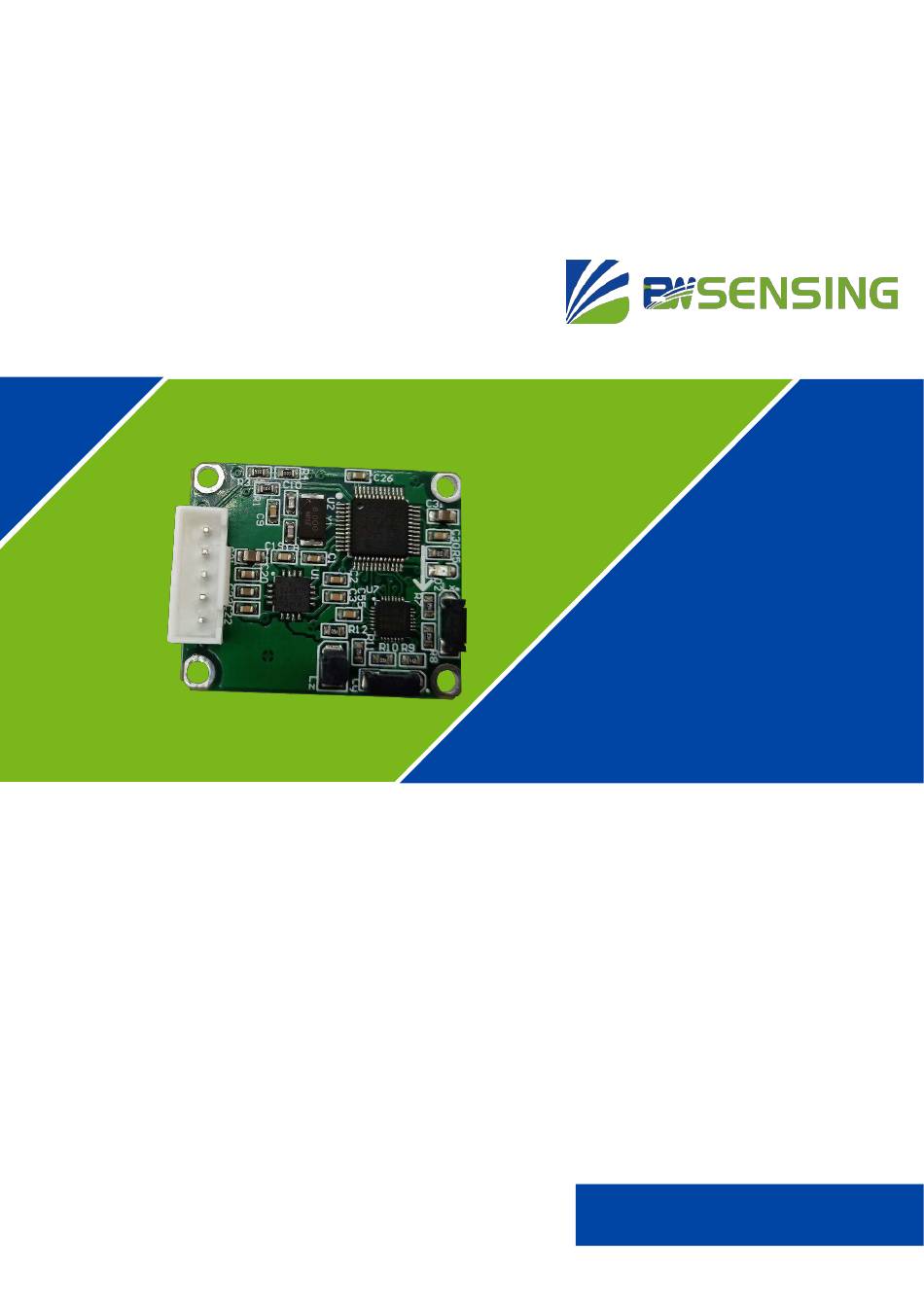

- Page 1 SEC380 Series Inclination compensation 3D electronic compass Technical Manual V3.0...
- Page 2 SEC380 Inclination compensation 3D electronic compass Introduction SEC380 is a cost-effective three-dimensional electronic compass developed and produced by Bewis Sensing. The product adopts the hard iron and soft iron calibration algorithm of Bewis Sensing patent technology, so that it can still provide high-precision heading information when its inclination reaches 90°.
-
Page 3: Product Feature
SEC380 Inclination compensation 3D electronic compass Product Feature Electrical Index Power voltage 9-36V DC Working current 30mA（40mA max） Operating temperature -40℃~85℃ Storage temperature -55℃~100℃ Performance Index Compass 0.5°（Pitch<40°） Heading accuracy heading 0.7°（Pitch<60°） parameters 1°（Pitch<80°） Resolution 0.01° Repeatability 0.1° Pitch accuracy 0.1º... -
Page 4: Mechanical Properties
SEC380 Inclination compensation 3D electronic compass Mechanical properties Connector Cable socket (30cm cable) Installation Four M2 non-magnetic screws PCBA size Product size：L45*W36*H13（mm） Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620... -
Page 5: Electrical Interface
SEC380 Inclination compensation 3D electronic compass Electrical Interface Wiring definition BLUE BLACK GREEN YELLOW Wiring color function DC 9-36V （B、D-） （A、D+） Signal Electronic acquisition compass terminal RS485 Wiring diagram Electronic compass RS232 Wiring diagram Measurement installation The main sensitive devices of SEC380 sensor are magnetometer and accelerometer. The compass uses a magnetometer to sense the earth's magnetic field to calculate the sensor's pointing, uses an accelerometer to measure the angle between the compass and gravity, and provides inclination compensation when the compass calculates the azimuth angle. - Page 6 SEC380 Inclination compensation 3D electronic compass We strongly recommend to calibrate the magnetic field after the installation is complete and after each change in the magnetic field environment. After the calibration is completed according to the method in the manual, the firmware and program in SEC380 can effectively eliminate the interference of the magnetic field after calibration.
- Page 7 SEC380 Inclination compensation 3D electronic compass Attitude 1: Point magnetic compass azimuth to 0°, the pitch angle is 0°, and the roll angle is 0°; Attitude 2: Point Azimuth to 90°, the pitch angle is 0°, and the roll angle is 0°; Attitude 3: Point Azimuth to 180°, the pitch angle is 0°, and the roll angle is 0°;...
-
Page 8: Order Information
SEC380 Inclination compensation 3D electronic compass Order information Package situation Product model Communication mode SEC380-232 RS232 PCBA SEC380-485 RS485 PCBA SEC380-TTL PCBA Executive standard ● Specification for static calibration of dual-Axis tilt sensors National Standard (draft) ● GB/T 191 SJ 20873-2003 General specification for inclinometer and level Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620... - Page 9 SEC380 Series Inclination compensation 3D electronic compass Wuxi Bewis Sensing Technology LLC Add：Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+86 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
