INSTALLATION INSTRUCTIONS
Product
7160-1265-xx (-P & -E)

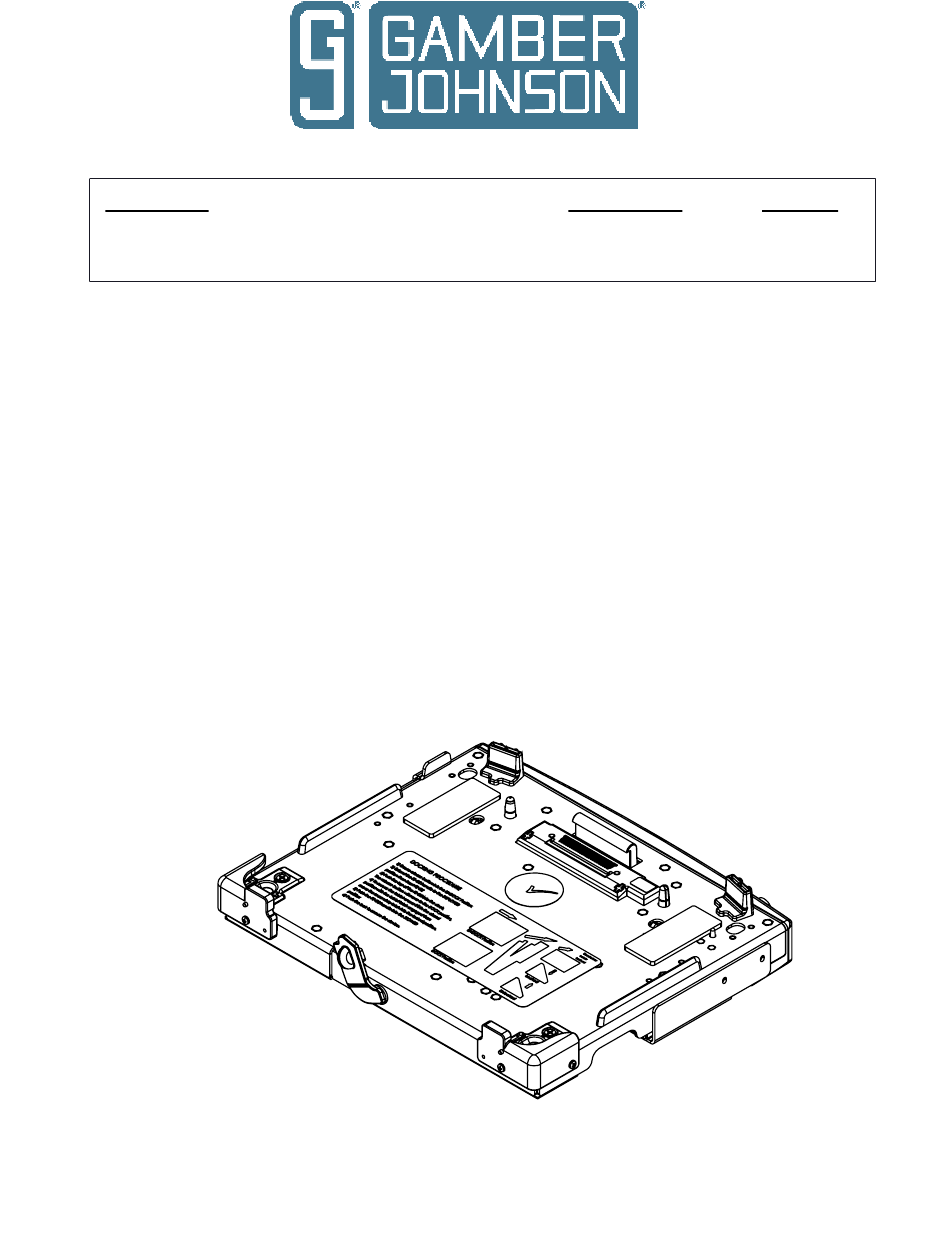

TOUGHBOOK 20/FZ-G2 Docking Station
This instruction sheet is for the TOUGHBOOK 20/FZ-G2 docking station. For
instruction on features, set-up and operation of the computer, please refer to the
manual provided by Panasonic with the computer.
This docking station is designed to be used with a variety of Gamber-Johnson
mounting systems. Installation instructions for other Gamber-Johnson products are
provided with each individual product.
This instruction sheet is for the following products:
7160-1265-00, (-P) & (-E) Docking Station- No RF, Keyed Alike
7160-1265-02, (-P) & (-E) Docking Station- Dual RF, Keyed Alike
7160-1265-04, (-P) & (-E) Docking Station- No RF, Keyed Different
7160-1265-06, (-P) & (-E) Docking Station- Dual RF, Keyed Different
7160-1265-20, (-P) & (-E) Docking Station- Lite, No RF, Keyed Alike
7160-1265-22, (-P) & (-E) Docking Station- Lite, Dual RF, Keyed Alike
Panasonic recommends using the following Power Adapter to power the docking station.
It can be ordered from Gamber-Johnson seperately.
7300-0460 - Bare Wire Adapter (11-16 Vdc input) - Available with the docking station as
KIT 7170-0681-00 (Non-RF) or 7170-0681-02 (Dual-RF)
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2019 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Revision
Rev J
Printing Spec:
Form
INST-862
PS-001
1 / 10
Advertisement
Related Manuals for Gamber Johnson 7160-1265 Series
Summary of Contents for Gamber Johnson 7160-1265 Series
- Page 1 INSTALLATION INSTRUCTIONS Product Revision Form 7160-1265-xx (-P & -E) Rev J INST-862 TOUGHBOOK 20/FZ-G2 Docking Station Printing Spec: PS-001 This instruction sheet is for the TOUGHBOOK 20/FZ-G2 docking station. For instruction on features, set-up and operation of the computer, please refer to the manual provided by Panasonic with the computer.
- Page 2 PRE-INSTALLATION RECOMMENDATOINS Conduct a "Bench Test" Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and software issues are resolved prior to installation: Make sure the computer is operational by itself. Insert computer into the docking station and verify that the computer is operating in the dock.
- Page 3 PRECAUTIONS FOR OPERATING THE DOCKING STATION • Do Not Connect a Telephone Line, or • If a Malfunction or Trouble Occurs, Immediately Stop Use a Network Cable Other Than the one Specified, Into the LAN Port. If the LAN port is connected to a If a Malfunction Occurs, Immediately network such as the ones listed below, Unplug the Car Plug and Remove the...
- Page 4 DOCKING AND UNDOCKING THE COMPUTER DOCKING PROCEDURE 1. Ensure latch is in the "UNDOCKED" Position 2. Extend the TOUGHBOOK 20/FZ-G2 handle to the "DEPLOYED" position then insert the computer 3. Push the top of the TOUGHBOOK 20/FZ-G2 into the dock. The latch will move to the "Docked"...
- Page 5 TOUGHBOOK 20/FZ-G2 DOCKING STATION FEATURE IDENTIFICATON Lever Lock Secondary Latch Ethernet Port External Wireless (2) USB 3.0 Ports CH1: WWAM-GPS/ EX. ANT 2 VGA Port HDMI Port exluded on lite versions exluded on lite versions Serial Port External Wireless CH1: WWAM/ EX. ANT 1 DC IN 16V, 4.06A Antenna Switch 5 / 10...
- Page 6 CABLE MANAGMENT FEATURES AND PROPER INSTALLATION 1.) Use Zip ties (provided) to secure each port cable to the specific strain relief feature on the dock If dock mount plate is covering ports remove these screws (OLD DESIGN) Replace mount plate once wires are connected and secured CABLE TIE LOCATION ANT2...
-
Page 7: Specifications
SPECIFICATIONS Item Description Power Supply Input DC 15.6V-16V Must use approved FCC/E-marked PSU Expansion Bus Connector 24-Pin USB Port* USB 3.0 x 2 LAN Port RJ-45 x 1 HDMI Port** HDMI x 1 For exclusive use with HDMI standard VGA Port Mini Dsub 15-pin female (Analog interface) Serial Port Dsub 9-pin male... - Page 8 Screen Support Installation Screen supports are recommended on all laptop dock/cradles in high-vibration environments. Screen support can be purchased from www.GamberJohnson.com Part Number: 7110-1275 Screen Support Mounting Locations Use #6-32 screws from screen support hardware bag to attach screen support to the left or right mounting location, do not over-torque screws.
- Page 9 REGULATORY CERTIFICATION INFORMATION Regulatory Model #: 7160-1265 GJ Model #'s: 7160-1265-00, 7160-1265-00-E, 7160-1265-00-P 7160-1265-02, 7160-1265-02-E, 7160-1265-02-P 7160-1265-04, 7160-1265-04-E, 7160-1265-04-P 7160-1265-06, 7160-1265-06-E, 7160-1265-06-P 7160-1265-20, 7160-1265-20-E, 7160-1265-20-P 7160-1265-22, 7160-1265-22-E, 7160-1265-22-P Descriptions: Dock-Panasonic CF20/FZ-G2 Certifications: • EN 55032:2012 Class B • EN 50498:2010 •...
- Page 10 EN: Safety instructions for proper use Precautions for Operating the Car Mounter • If a Malfunction Occurs, Immediately Unplug the Car Plug and Remove the Computer From this product • Use Only the Specified Car Adaptor With This Product • Avoid a Lot of Water, Moisture, Steam, Dust, Oily Vapors, etc •...
