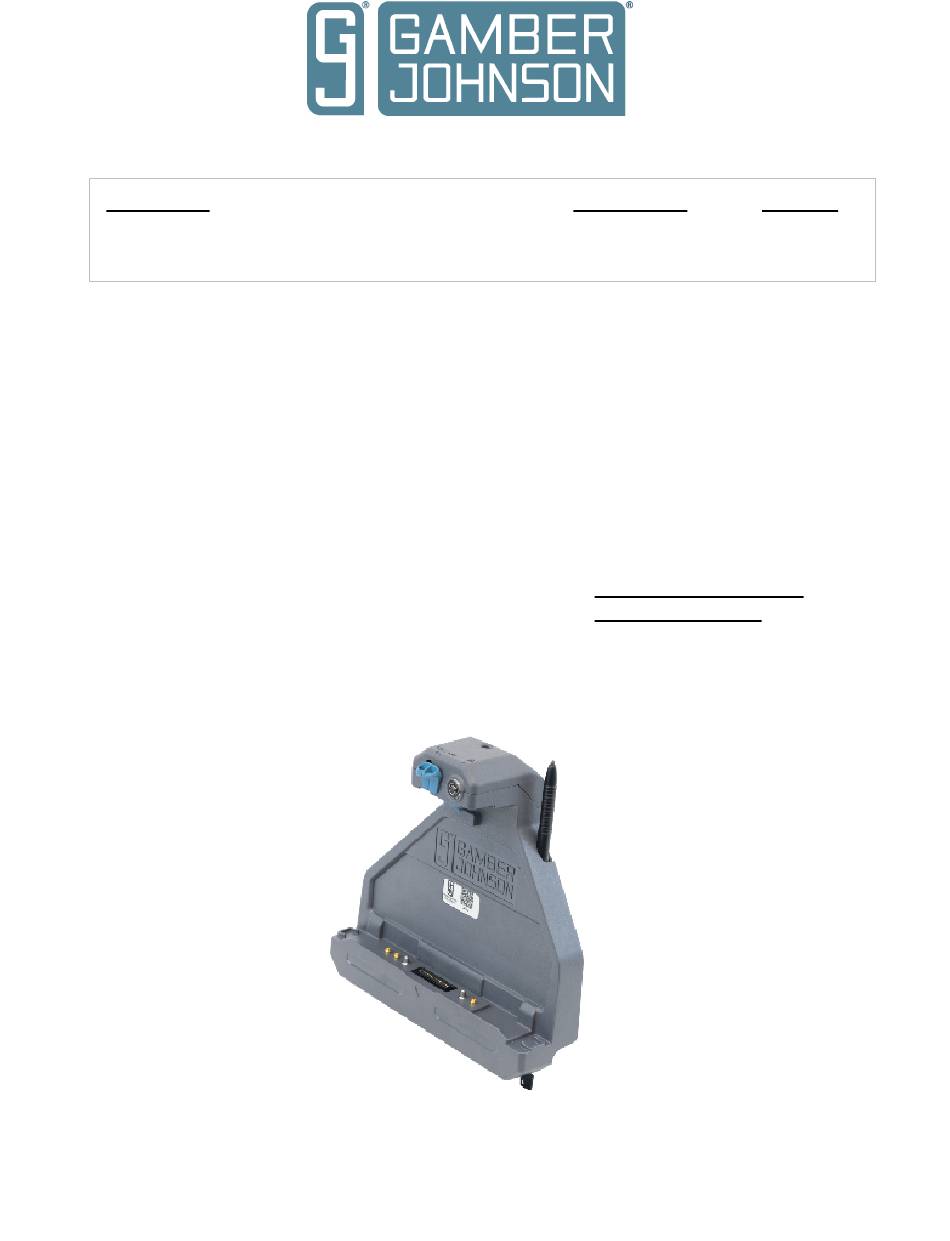

INSTALLATION INSTRUCTIONS
Product
7160-1936-XX

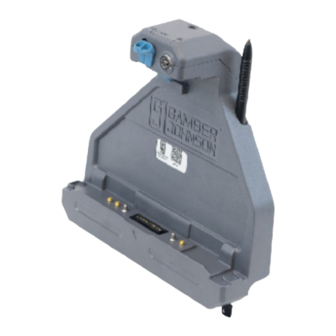

GETAC ZX80 TABLET DOCKING STATION
This instruction sheet is for the Getac ZX80 Docking Station. For instructions on features,
set-up, and operation of the Getac ZX80 Tablet, please refer to the manual provided by
Getac with the Tablet.
This Docking Station is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided with
each individual product.
This instruction sheet is for the following products:
Item No. 7160-1936-00
Item No. 7160-1936-03
The recommended power adapter for this docking station is:
7300-0471 - 12-32VDC Input, 19VDC 6.3A Output, 120W, AUTO ADAPTER PLUG
7300-0516 - 12-32VDC Input, 19VDC 6.3A Output, 120W, BARE WIRE PLUG
(See Page 4 For Isolated Power Adapter Options)
This Power Adapter is available with the Docking Station as a KIT:
7170-1088-00 - Non-RF Docking Station with Auto Power Adapter
7170-1088-03 - Tri-RF Docking Station with Auto Power Adapter
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brake lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2024 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Non-RF
Tri-RF Passthrough
Revision
Rev B
INST-1176
Printing Spec: PS-001
Form
1 / 6
Advertisement
Related Manuals for Gamber Johnson 7160-1936 Series
Summary of Contents for Gamber Johnson 7160-1936 Series
- Page 1 INSTALLATION INSTRUCTIONS Product Revision Form Rev B INST-1176 7160-1936-XX GETAC ZX80 TABLET DOCKING STATION Printing Spec: PS-001 This instruction sheet is for the Getac ZX80 Docking Station. For instructions on features, set-up, and operation of the Getac ZX80 Tablet, please refer to the manual provided by Getac with the Tablet.
- Page 2 PRE-INSTALLATION RECOMMENDATOINS Conduct a "Bench Test" Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and software issues are resolved prior to installation: Make sure the computer is operational by itself. Insert computer into the docking station and verify that the computer is operating in the dock.
- Page 3 GETAC ZX80 DOCKING STATION FEATURE IDENTIFICATION Lock Latch Stylus Holder QR Code INST Sheet Scan QR Code to view Instruction Sheet Tri-RF Connectors (Optional) Guide Pins Connector Mounting Studs 1/4-20 x 0.90" Mounting HW Provided Serial Label Recommeded Torque = 25 in/lbs Warranty Label Serial (RS232) (NOT POWERED)
-
Page 4: Cable Routing
ISOLATED POWER ADAPTERS Isolated Power Adapters can be purchased directly from Gamber Johnson or as a KIT where they are included with the docking station: 7300-0413 - 12-32v Input 7300-0412 - 20-60v Input 7300-0416 - 72-110v Input CABLE ROUTING Use supplied cable ties to secure... - Page 5 DOCKING AND UNDOCKING THE TABLET Insert the bottom of the tablet into the docking station. Line up the Getac logo with the "V" on the front of the docking station. Figure 1 Rotate the top of the tablet under the top latch until the tablet is resting inside the maing housing.
- Page 6 Regulatory Certification Information Regulatory Model #: 7160-1936 GJ Model #'s: 7160-1936-00, 7160-1936-03 Descriptions: Dock-Getac-ZX80 Certifications: • EN 55032: 2012/AC: 2013 Class B • VCCI-CISPR 32: 2016 • AS/NZS CISPR 32: 2015 • FCC Part 15B Class B • ICES-003 Issue 7 •...
