INSTALLATION INSTRUCTIONS
Product
7160-1321 & 7160-1453

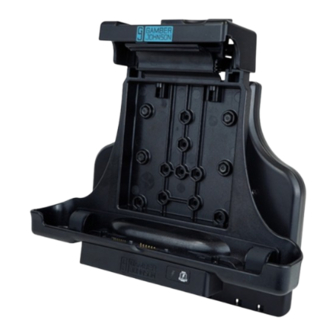

Zebra L10 Tablet Dock
This instruction sheet is for the Zebra L10 Tablet Dock only. For instructions
on features, set-up, and operation of the computer, please refer to the manual
provided by Zebra with the tablet.
This dock is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are
provided with each individual product.
This instruction sheet is for the following products:
Item No. 7160-1321-00
Item No. 7160-1321-01
Item No. 7160-1321-05
Item No. 7160-1453-00
Item No. 7160-1453-01
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brake lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2019 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Revision
A
INST-902
Printing Spec: PS-001
Form
1/8
Advertisement
Related Manuals for Gamber Johnson 7160-1321
Summary of Contents for Gamber Johnson 7160-1321
- Page 1 Product Revision Form INST-902 7160-1321 & 7160-1453 Zebra L10 Tablet Dock Printing Spec: PS-001 This instruction sheet is for the Zebra L10 Tablet Dock only. For instructions on features, set-up, and operation of the computer, please refer to the manual provided by Zebra with the tablet.
- Page 2 PRE-INSTALLATION RECOMMENDATOINS Conduct a "Bench Test" Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and software issues are resolved prior to installation: Make sure the computer is operational by itself. Insert computer into the docking station and verify that the computer is operating in the dock.
- Page 3 ZEBRA L10 DOCKING STATION FEATURE IDENTIFICATON Latch Lock Docking Connector Power Indicator Lights VESA 75mm Mounting Pattern 100mm x 50mm Mounting Pattern USB Port and RS232 Switch Access Cover Cable Tie Locations...
- Page 4 ZEBRA L10 DOCKING STATION PORT REPLICATION The orientation of the ethernet port makes the cable release inaccessible by hand. Slide a zip tie or small screwdriver under the cable to release as shown at right. All cables should be secured to the dock using cable ties as illustrated at right...
- Page 5 CHANGING RS232 SETUP RS232 SWITCH ACCESS Remove the screw that secures the back access panel in place (Figure 1) Use needle nose pliers or tweezers to move the jumper to the desired position The default jumper position is the left side to set Serial pin 9 to RI (Figure 2) Alternatively, the bridge can be moved to the right side to set Serial pin 9 to 5V (Figure 3)
- Page 6 DOCKING AND UNDOCKING THE TABLET Figure 1 TO DOCK THE TABLET Insert the bottom of the tablet into the docking station (Figure 1) Rotate the top of the tablet into the dock (Figure 2) While holding the tablet in place, pull the latch down into the closed position (Figure 3) Use the key to lock and secure...
- Page 7 JOINING THE ZEBRA L10 MODULE TO A CRADLE ASSEMBLY Align the pogo connector with the cutout in the bottom of the cradle (see image at right). Insert the front of the cradle first, then press the back of the cradle onto the docking module until it clicks into place.
- Page 8 Regulatory Certification Information Regulatory Model #: 7160-1321, 7160-1543 GJ Model #'s: 7160-1321-00, 7160-1321-01, 7160-1321-05 7160-1543-00, 7160-1543-01 Descriptions: Dock-Zebra L10 Tablet Certifications: • EN 55032:2012/AC: 2013 • FCC 47 CFR Part 15B Class B • AS/NZS CISPR 32: 2016 • VCCI-CISPR 32: 2016 •...
