1. Overview

NSP2340T16L Development Demo Board is the demo board for 16 Cap Touch. User can
implement Voice Assistance applications with Cap Touch.

2. PCB Image and Placement

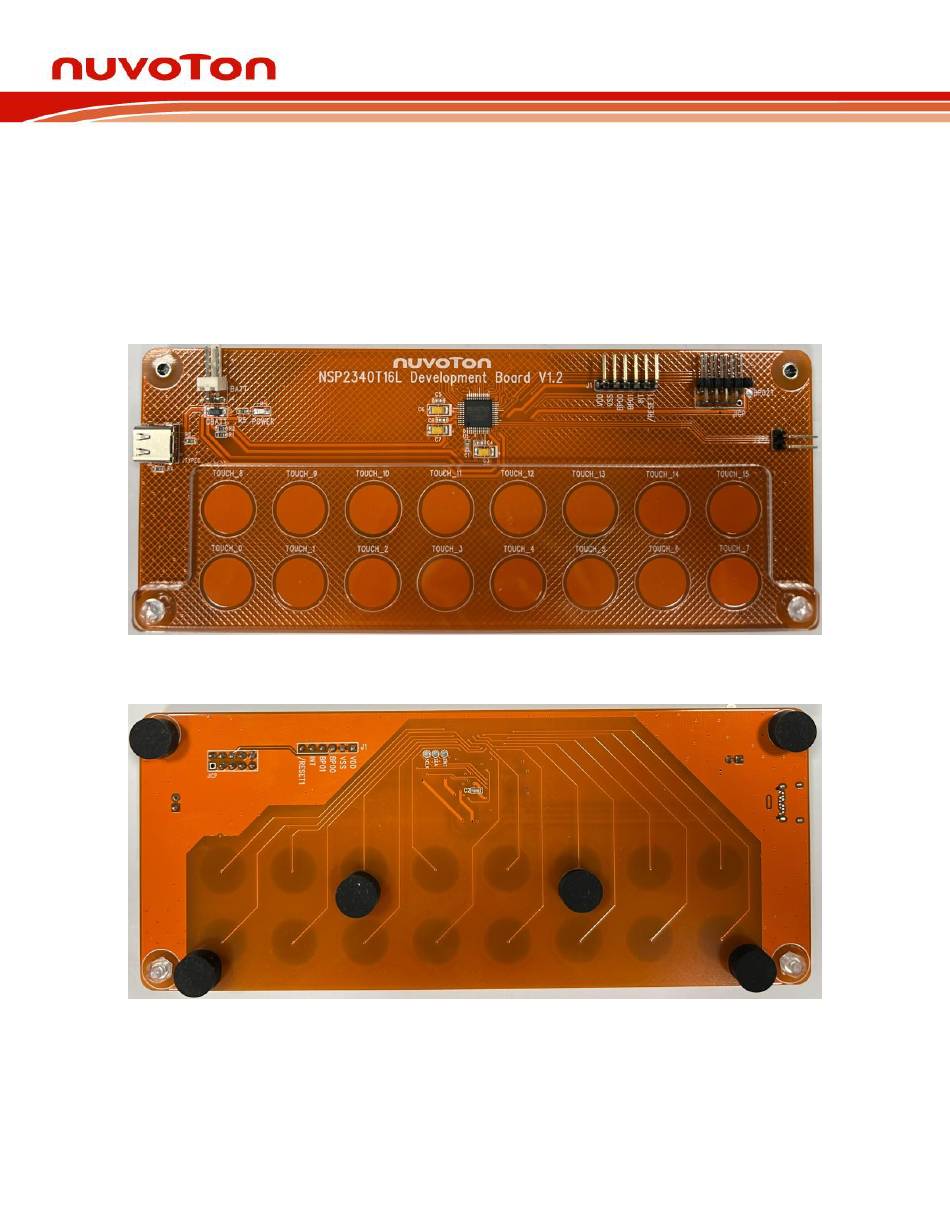

The Figure 1 and Figure 2 show the PCB images of NSP2340T16L Development Demo
Board.
Figure 1. The top side
Figure 2. The bottom side
