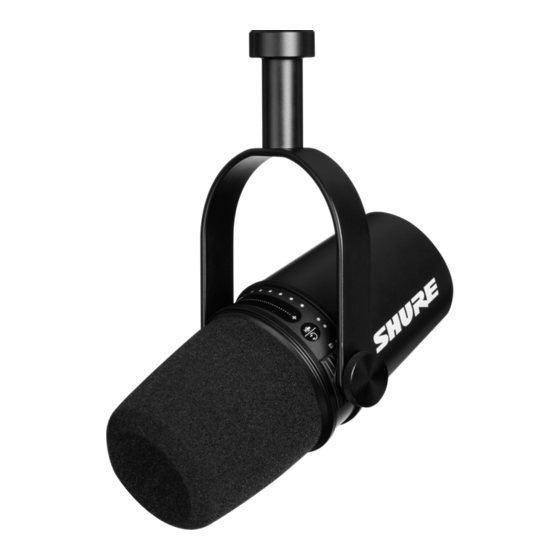

- Page 1 Podcast Microphone The Shure MV7 USB cardioid microphone user guide. Includes specifications and how to set up, update, and troubleshoot the mic. Version: 5.0 (2024-K)
-
Page 2: Table Of Contents
Replacement Parts How to Avoid Plosives When Recording Optional Accessories Using the MV7 for Video Calls Certifications How to Set Up the MV7 as an Aggregate Device in an iOS Information to the user The MOTIV Mix Recording App Glossary 2/18... -
Page 3: Mv7 Podcast Microphone
Adjust EQ, compression, limiter, tone and more. Connect Your MV7 Plug the included Micro-B USB cable into your MV7. Connect the other end of the Micro-B USB cable to your laptop. Plug your headphones into the monitor output. -
Page 4: Quick Setup
Quick Setup Use the correct cable to plug the microphone into your computer. The LED panel on the MV7 will pulse when the connection is made. Download the Mix application at http://www.shure.com/MOTIVMix. Your computer may request permission to use the external device the first time the app is opened. -
Page 5: Controls
Note: For information on dB values related to the Touch Panel slider, see the Touch Panel Values table in the Specifications appendix. The MV7 Microphone The MV7 features a dynamic capsule with a cardioid pattern, which uses Voice Isolation Technology to pick up sound directly in front of the microphone. -
Page 6: Mounting Instructions
Mounting Instructions The MV7 microphone comes equipped with a 5/8"-27 threaded mount, the thread size most commonly found on microphone stands. This mount can be used with a microphone stand or hung from a boom. Some stands may require an adapter, which is not provided. -
Page 7: Use Lock Mode To Lock In Your Sound
Three Ways to Use Your MV7 Podcast Microphone How to Avoid Plosives When Recording Using the MV7 for Video Calls How to Set Up the MV7 as an Aggregate Device in an iOS DAW The MOTIV Mix Recording App Use the MOTIV Mix recording app to quickly adjust microphone settings and be ready to record. The device stores the most re- cently used settings for quick setup. -
Page 8: Preset Modes
Shure Incorporated And the Recorder which displays file information, a recording timeline and the Start/Stop record button. Preset Modes MOTIV Mix has three digital signal processing (DSP) presets designed to enhance any application. Record speakers for pod- casts or livestreams with Speech mode, capture singers with Singing mode, or record instruments with Instrument mode. Each mode enables or disables DSP settings to fit your application. Any selected presets will remain enabled when the mic is turned off or restarted. -
Page 9: Shure Virtual Audio (Vad)
¼" TRS connection will route left audio to left outputs and right audio to right outputs. Shure Virtual Audio (VAD) The Shure Virtual Audio Driver creates a virtual audio device within the operating system that can be used to send and receive audio from a variety of sources into and out of MOTIV Mix. For example, route audio to this virtual sound card from the OS it- self or from music apps such as Apple Music and Spotify into a VAD channel to use in your live stream or podcast. -
Page 10: Firmware Update
To access firmware update at a later time, select Help > Check for Update. If the available firmware package is newer than the current version, you can install the firmware. Contact Shure Service and Repair if you experience any issues. Keep equipment connected during updates Keep the MOTIV device connected to your mobile device when updating to ensure that there are no update issues. -
Page 11: System Requirements And Compatibility: Mac
12 and higher • iPad: iPad Pro (USB-C) Additional Resources • Shure Knowledge Base FAQs • Training from the Shure Audio Institute • Microphone Techniques for Recording • Houses of Worship Systems Guide • Shure Performance & Production YouTube channel •... - Page 12 Shure Incorporated Polar Pattern Unidirectional (Cardioid) Output Impedance 314 Ω Frequency Response 50 Hz to 16,000 Hz Adjustable Gain Range 0 to +36 dB Sensitivity (@ 1 kHz, open circuit voltage) -55 dBV/Pa [1] (1.78 mV), -47 dBFS/Pa [1] [2] Maximum SPL, Digital Output 132 dB SPL [2] Headphone Output 3.5 mm (1/8″) Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3...
- Page 13 Shure Incorporated [1] 1 Pa=94 dB SPL [2] At Minimum Gain, Flat Mode Bit Depth Sampling Rate 48 kHz 44.1 kHz 48 kHz 44.1 kHz Typical Frequency Response Typical Polar Pattern 13/18...
-
Page 14: Mv7 Yoke Assembly
-30 dB Green -39 dB Green -48 dB Green -90 dB MV7 Yoke Assembly The MV7 yoke allows a podcaster to be flexible with mic placement. Loosen the yoke knobs and you can adjust the micro- phone in a variety angles. If the microphone becomes detached from the yoke, these are the steps to put it together in the cor- rect order to ensure that your microphone is secure. Each side uses one thin gray spring washer, one shiny silver brass wash- er, two black plastic washers and the yoke and threaded yoke knob. Start with the threaded knob flat side down on your tabletop. 14/18... -
Page 15: Accessories
Place the flat silver washer and then the thin spring washer on the threaded knob. Using your finger to hold the screw assembly in place, slide the MV7 onto the threaded screw and turn the knob to keep washers in place. -
Page 16: Optional Accessories
Rules. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause interference with radio and television reception. Notice: The FCC regulations provide that changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. -
Page 17: Glossary
Shure Incorporated Note: Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC per- formance. CE Notice Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with Euro- pean Union requirements. The full text of the EU declaration of conformity is available at the following site: https://www.shure.com/en-EU/support/declara- tions-of-conformity. This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. - Page 18 Shure Incorporated • Limiter: Limits gain to prevent distortion from volume peaks during recording. • Mute: No audio is passing through the microphone. • Noise Reduction: Significantly reduce the amount of unwanted noise in the signal caused by projectors, HVAC systems, or other environmental noise.
