Summary of Contents for Shure SE215 PRO

  • Page 1 All Metal USB/XLR Dynamic Mic, Voice-Isolating Technology, TeamSpeak Certified - Black User Manual of Product 2: Shure SE215 PRO Wired Earbuds - Professional Sound Isolating Earphones, Clear Sound & Deep Bass, Single Dynamic MicroDriver, Secure Fit In Ear Monitor, plus Carrying...
  • Page 2 Podcast Microphone The Shure podcast microphone, MV7, user guide. Version: 2.2 (2021-K)
  • Page 3: Table Of Contents

    Specifications Auto Level Mode MV7 Yoke Assembly Near Accessories Additional Tips Furnished Accessories Replacement Parts The Shure MOTIV Desktop App Optional Accessories Mic Setup: Auto Level Mic Setup: Manual Certifications Monitor Mix Blend Information to the user EQ Modes 2/18...
  • Page 4: Mv7 Podcast Microphone

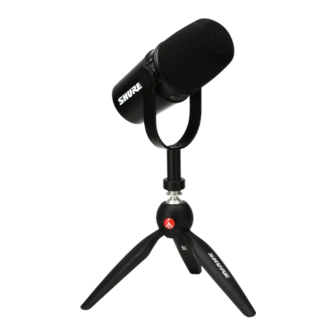

    Shure Incorporated MV7   Podcast Microphone General Description The Shure MV7 is a professional-quality USB dynamic microphone, ideal for close mic applications that require vocal intelligi- bility with a balanced tone. The attractive and durable all-metal design features an adjustable yoke that can be mounted onto a variety of microphone stands for flexible placement options. A touch panel user interface provides control of microphone gain, headphone level, monitor mix blend and muting.
  • Page 5: Quick Setup

    Use the correct cable to plug the microphone into your computer. The LEDs on the MV7 will pulse when the connection is made. Download the app at https://wwww.shure.com/MOTIVdesktop. Your computer may request permission to use the external device the first time the app is opened.
  • Page 6: Controls

    Shure Incorporated ④ Monitor Toggle Press the mode/headphone button to toggle between microphone (green) and headphone (orange) volume controls. Long press to activate monitor mix controls (both green and orange). Another long press to return to separate micro- phone and headphone volume controls. ⑤ Lock Indicator Displays whether the settings lock is on or off. Settings lock prevents changes to microphone settings from accidental touches.
  • Page 7: Mounting Instructions

    Shure Incorporated Mounting Instructions The MV7 microphone comes equipped with a 5/8"-27 threaded mount, the thread size most commonly found on microphone stands. This mount can be used with a microphone stand or hung from a boom. Some stands may require an adapter, which is not provided.
  • Page 8: Near

    Make additional gain adjustments as necessary. Additional Tips Shure offers educational articles and publications on recording techniques for a variety of instruments and applications. Visit Shure Educational Articles for more information.
  • Page 9: The Shure Motiv Desktop App

    Shure Incorporated The Shure MOTIV Desktop App Use the Shure MOTIV desktop app to quickly adjust microphone settings. The device stores the most recently used settings for quick setup. Mic Setup: Auto Level ① Settings Click the three dots to access MOTIV software information, manage presets, application preferences and check for firmware updates.
  • Page 10: Mic Setup: Manual

    Shure Incorporated ⑧ Tone Adjust the tonal qualities of your audio by selecting Dark, Natural or Bright tone. Tone controls a variety of settings to quickly dial in the sound that works best for your voice. ⑨ LED Behavior Turn on Live meters to use your Touch Panel for mic gain metering. Use Night mode to lower the brightness of your Touch Panel.
  • Page 11: Monitor Mix Blend

    Shure Incorporated Monitor Mix Blend Use the monitor mix slider to adjust how much of each source you can hear. For best results, start monitoring at the midpoint and adjust. • Move the slider towards the microphone icon (Mic) to hear more of the audio going into the mic. Like when you're singing over a recorded guitar track and want to clearly hear your voice.
  • Page 12: Advanced Mic Settings

    Shure Incorporated Advanced Mic Settings Fine-tune your sound with limiter, compression, and equalizer settings. Limiter Toggle the limiter on or off to prevent distortion from volume peaks in your recording. Compressor Choose no compression, or select light, medium or heavy compression to control volume when your sound source is dynamic.
  • Page 13: Firmware Update

    Check for firmware update. Tap the three dots in the top right corner and select About  MOTIV > Check for Update  Note: Contact Shure Service and Repair if you continue to experience any issues. Firmware Update Take advantage of additional features and design enhancements by updating the firmware on your MOTIV Desktop Application when prompted. A notification will appear when a firmware update is available. You have the option to download the update im-...
  • Page 14: System Requirements And Compatibility: Ios

    Shure Incorporated • 64 bit • Minimum 2 GB of RAM • Minimum 500 MB of hard disk space System Requirements and Compatibility: iOS • iOS: iOS 14 and higher • iPhone: iPhone 6s and higher • iPod Touch: 7th gen Note: iPad Pro (USB-C) is not supported.
  • Page 15 Shure Incorporated Maximum SPL, Digital Output 132 dB SPL [2] Headphone Output 3.5 mm (1/8″) Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Mute Switch Attenuation Limiter Compressor Power Requirements Powered through USB or Lightning connector Housing...
  • Page 16 Shure Incorporated Typical Frequency Response Typical Polar Pattern Overall Dimensions Slider LED Color dB Value Yellow -6 dB Yellow -12 dB Yellow -18 dB Green -24 dB Green -30 dB Green -39 dB Green -48 dB Green -90 dB 15/18...
  • Page 17: Mv7 Yoke Assembly

    Shure Incorporated MV7 Yoke Assembly The MV7 yoke allows a podcaster to be flexible with mic placement. Loosen the yoke knobs and you can adjust the micro- phone in a variety angles. If the microphone becomes detached from the yoke, these are the steps to put it together in the cor- rect order to ensure that your microphone is secure. Each side uses one thin gray spring washer, one shiny silver brass wash- er, two black plastic washers and the yoke and threaded yoke knob. Start with the threaded knob flat side down on your tabletop. Stack the washers on the threaded knob. ◦ Place a black plastic washer on the knob.
  • Page 18: Accessories

    Shure Incorporated Accessories Furnished Accessories 10 foot Micro-B to USB-A cable 95A45110 10 foot Micro-B to USB-C cable 95B38076 Replacement Parts Black Windscreen AMV7-K-WS Silver Windscreen AMV7-S-WS Optional Accessories 1 m Lightning cable AMV-LTG Certifications Information to the user This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference.
  • Page 19 This microphone for use with any microphone stand with a 5/8" threaded adapter. Note: Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC per- formance. This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Global Compliance Jakob-Dieffenbacher-Str.
  • Page 20 Shure Sound Isolating™ Earphones, deliver a detailed soundstage free from detachable cable, adapters, a durable carrying case, and interchangeable outside noise. The powerful and stylish Shure SE earphones come with a Sound Isolating sleeves for a comfortable and personalized fit.
  • Page 21 Replace sleeves if they do not tightly grip the nozzle. To ensure • Slide on a new sleeve so that it completely covers the barb and the proper fit and performance, use only sleeves supplied by Shure (unless using nozzle. custom molded sleeves).
  • Page 22 Answer/end calls on most phones by pressing the center button once. switching from phone call to music. For more information about compatible models go to: www.shure.com Maintenance and Cleaning Careful maintenance ensures a tight seal between the sleeve and nozzle, improving sound quality and product safety.
  • Page 23 Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str. 12 75031 Eppingen, Germany Phone: +49-7262-92 49 0 Fax: +49-7262-92 49 11 4 Email: info@shure.de Shure Incorporated 5800 West Touhy Avenue Niles, IL 60714-4608 USA Phone: +1-847-600-2000 Email: info@shure.com...
