Mocka Phoenix Assembly Instructions Manual page 3

Phoenix
Entertainment Unit
Thank you for your purchase. Please follow the instructions for
correct assembly. While we took great effort to ensure these
assembly instructions were correct at the time of printing,
sometimes updates are required post production. For the most
up to date versions please refer to the product page on our
website. mocka.com.au/mocka.co.nz
WARNING
Children have died from furniture toppling over.
・ ALWAYS secure this furniture with an anchor device.
・ NEVER allow children to stand, climb or hang on drawers, doors
or shelves.
・ ALWAYS secure your television with an anchor device
mocka.co.nz I mocka.com.au I
A B C
x12 x12 x20
G H
4 x 28mm 6 x 35mm
x12 x4 x12
M N
4 x 12mm
x2 x8 x2

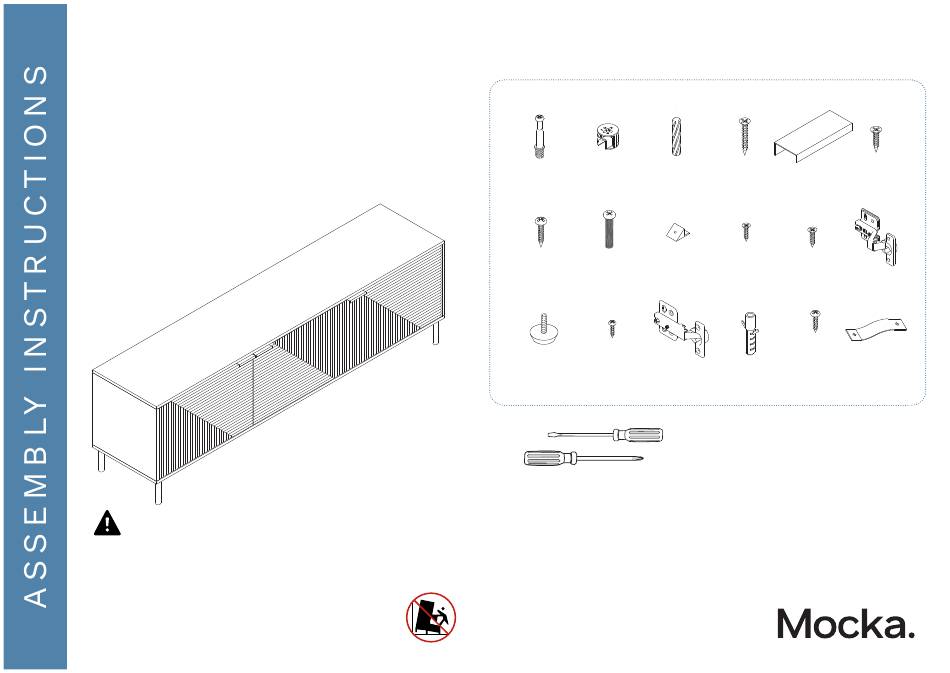

HARDWARE SUPPLIED
WARNING: Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
D E
4 x 35mm
x10 x3
I J K
3 x 14mm 4 x 12mm
x12 x36
P Q
O
4x14mm
x2 x2
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
3 x 12mm
x6
L
x4
R
x2
