Paccar PACMOBILE 40X User Manual page 10

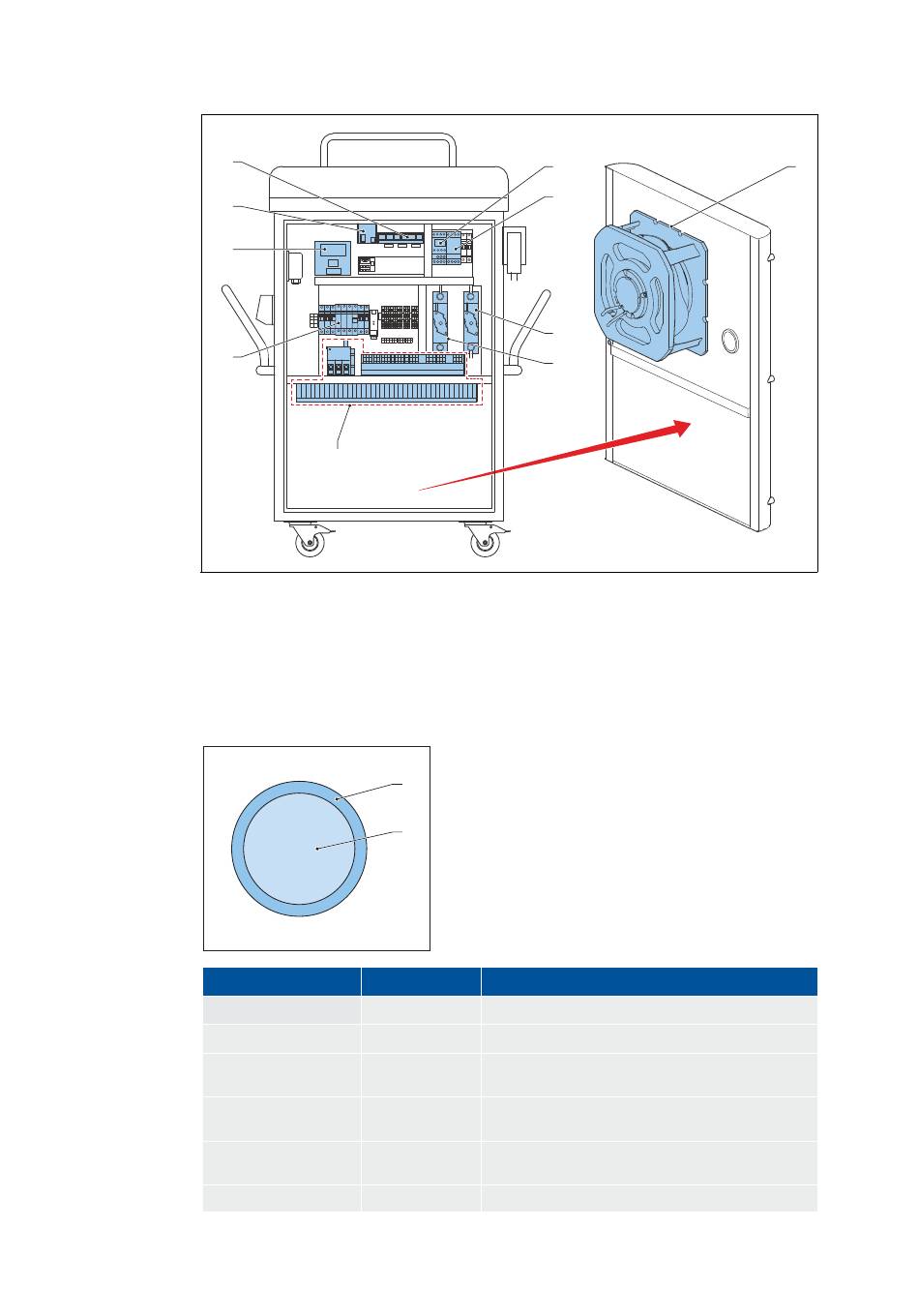

3.2.3 Components and connections of the charger
4
3
2
1
1. AC main switch/RCD (1Q1)
2. CPU (10U2)
3. Modem
4. SECC (I2SE)
3.2.4 Charging indicators (LED)
Status
No LED
Green LED flashes
Green LED constant
Blue LED flashes
Blue LED constant
Red LED constant
7
1. Stop button (functions only in chargers with
CCS plugs)
2
2. LED ring
1
The stop button is equipped with an LED ring that
indicates the status of the charging process.
Duration Description
10 seconds The charger is in the initialization phase
60 seconds The charger is in the startup phase
The charger is in standby mode. You can connect
the CCS plug now.
The charger is starting or stopping a charge
20 seconds
process.
A charge is in process. Push the button to stop
the process.
The charger has a fault.
5
5
6
6
5. Isolation guard (7U3)
6. Fuse DC
7. Distribution power terminal block
8. Fan
8
10
