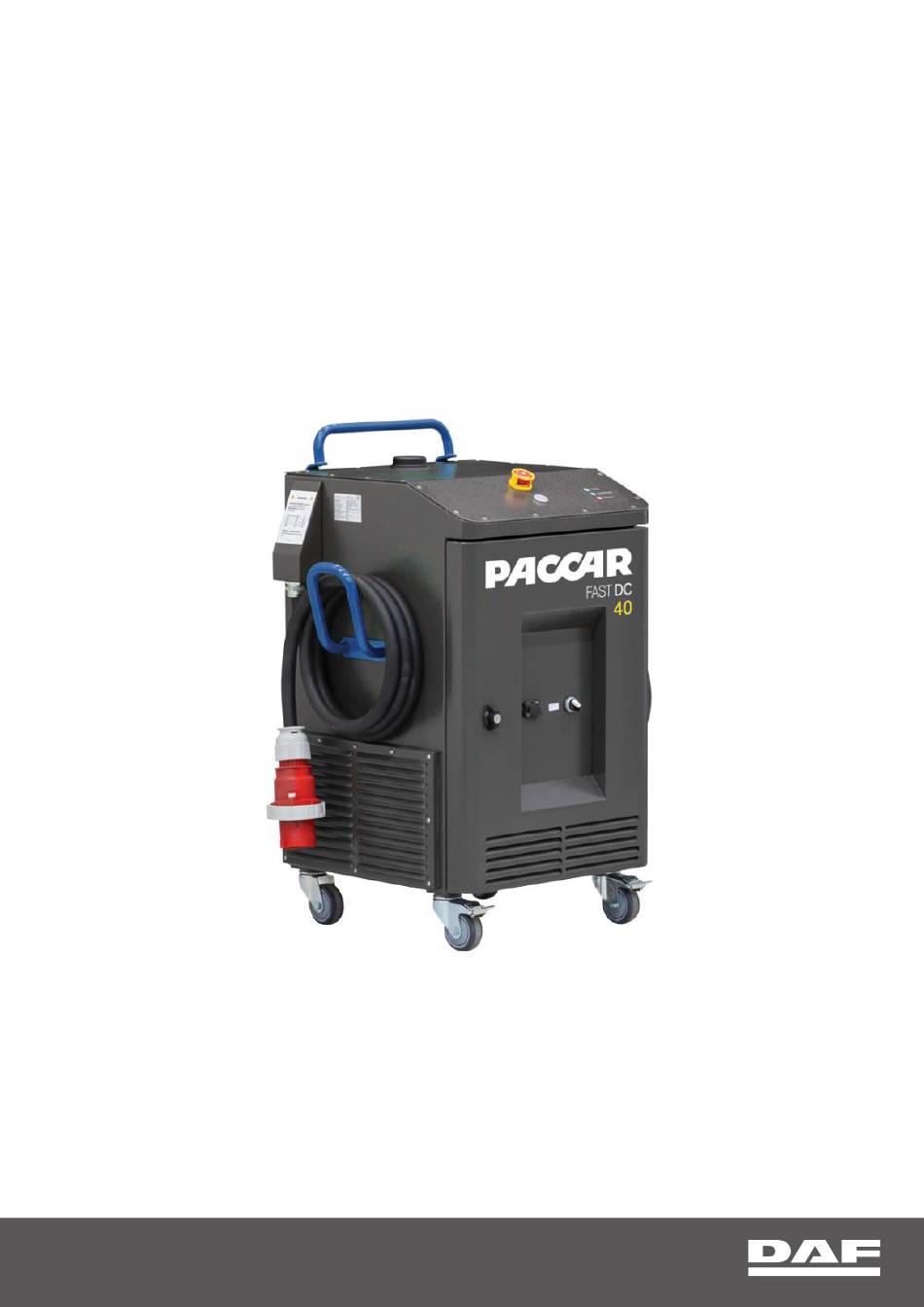

- Page 1 PACMOBILE 40X User manual A PACCAR COMPANY DRIVEN BY QUALITY...
- Page 2 PACCAR. PACCAR assumes no responsibility for any errors that may appear in this document. In no event shall PACCAR be liable for direct, indirect, special, incidental or consequential damages of any nature or kind arising from the...
- Page 3 Contents Introduction About this manual How to use this document Revision summary Copyright Guarantee Abbreviations Symbols Contact information Safety Intended use Safety instructions Safety warning for CCS chargers Liability Description Product Overview 3.2.1 System overview 3.2.2 Mobile depot charger 3.2.3 Components and connections of the charger 3.2.4 Charging indicators (LED)
- Page 4 The information in this document is property of PACCAR. No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or by any means electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of PACCAR.
- Page 5 Abbreviations Abbreviation Description three-phase voltage air conditioning alternating current auxiliary circuit breaker automated guided vehicle air handling unit active rectifier battery management system controller area network communication controller combined charging system control pilot charge point operator direct current electromagnetic compatibility electromagnetic interference electric vehicle EVCC...
- Page 6 Symbols used in this manual Symbol Description Warning: If you do not obey these instructions, there is a risk that can cause personal injury or death. Caution: If you do not obey these instructions, there is a risk that can cause damage to the machine.
- Page 7 Do the installation and maintenance procedures of the machine only as given in this document. • Obey all local safety regulations. • PACCAR and/or Heliox are not liable if you do not obey the safety instructions in this chapter. •...
- Page 8 3. Description Product The depot charger (EVSE) is a power supply system for electric vehicles (EV). The depot charger charges the batteries of electric vehicles during a long-term stop or overnight stop. The charging occurs via a combined charging system (CCS) plug. Refer to section System overview on page 8.
- Page 9 3.2.2 Charger 1. Handle 7. Air inlet grid 2. GSM antenna 8. Power selector switch 3. E-stop 9. Ethernet service socket 4. Charging indicator (LED) + stop button 10. Ventilation grid (outlet) 5. CCS plug + cable 11. AC input cable 6.
- Page 10 3.2.3 Components and connections of the charger 1. AC main switch/RCD (1Q1) 5. Isolation guard (7U3) 2. CPU (10U2) 6. Fuse DC 3. Modem 7. Distribution power terminal block 4. SECC (I2SE) 8. Fan 3.2.4 Charging indicators (LED) 1. Stop button (functions only in chargers with CCS plugs) 2.
- Page 11 Product identification The type number of the product is HE9818004-01. For other identification details of the product, refer to section Identification plate on page 11. 3.3.1 Identification plate Check the actual identification plate or this manual for the specific data. Refer to Technical data on page 12.
- Page 12 Technical data 3.4.1 Charger Table 1: Identification Type/Model 40kW mobile CCS charger Serial Number Unit HE9818004-01-YYWWXX The maximum power rating of the charger is 40 kW (I = 66.66 A @ 600 V Input voltage: 3 x 400 V + N + PE Output voltage: 100–1000 V Table 2: General data Dimensions...
- Page 13 3.4.2 Standards The product was produced and tested according to: • IEC61851-23: Electric vehicle conductive charging station • IEC61851-24: Digital communication between EC charging station and an electric vehicle for control of DC charging • EN55011-A1: Conducted/Radiated EMI • EN61000-6-2-2006: Electromagnetic compatibility •...
- Page 14 4. Operation Connect the AC input Procedure 1. Connect the plug of the AC input cable to the mains socket. 2. Select the AC input current (16 / 32 / 63) with the power selector switch. 3. Wait until the LED ring turns green. The LED ring shows the status of the charger. Refer to Charging indicators (LED) on page 10.
- Page 15 Reset the charger after an emergency stop Procedure 1. Turn the emergency stop button clockwise to reset the emergency stop button. How to Hard reset the charger Procedure 1. If the CCS plug is connected to the vehicle, disconnect the CCS plug. 2.
- Page 16 5. Troubleshooting Service-line structure The service-line is structured in such a way that simple faults can be fixed with the help of the 1st line support. Depending on the complexity of the issue, you will be further directed to the specific service department. Support line Contact Action...
- Page 17 5600 PT Eindhoven The Netherlands daf.com ISO14001 IATF16949 Environmental Quality Management System Management System All rights to copyrights, registered trademarks, and trademarks reside with their respective owners. Copyright © 2022 PACCAR/Heliox. All rights reserved. A PACCAR COMPANY DRIVEN BY QUALITY...
