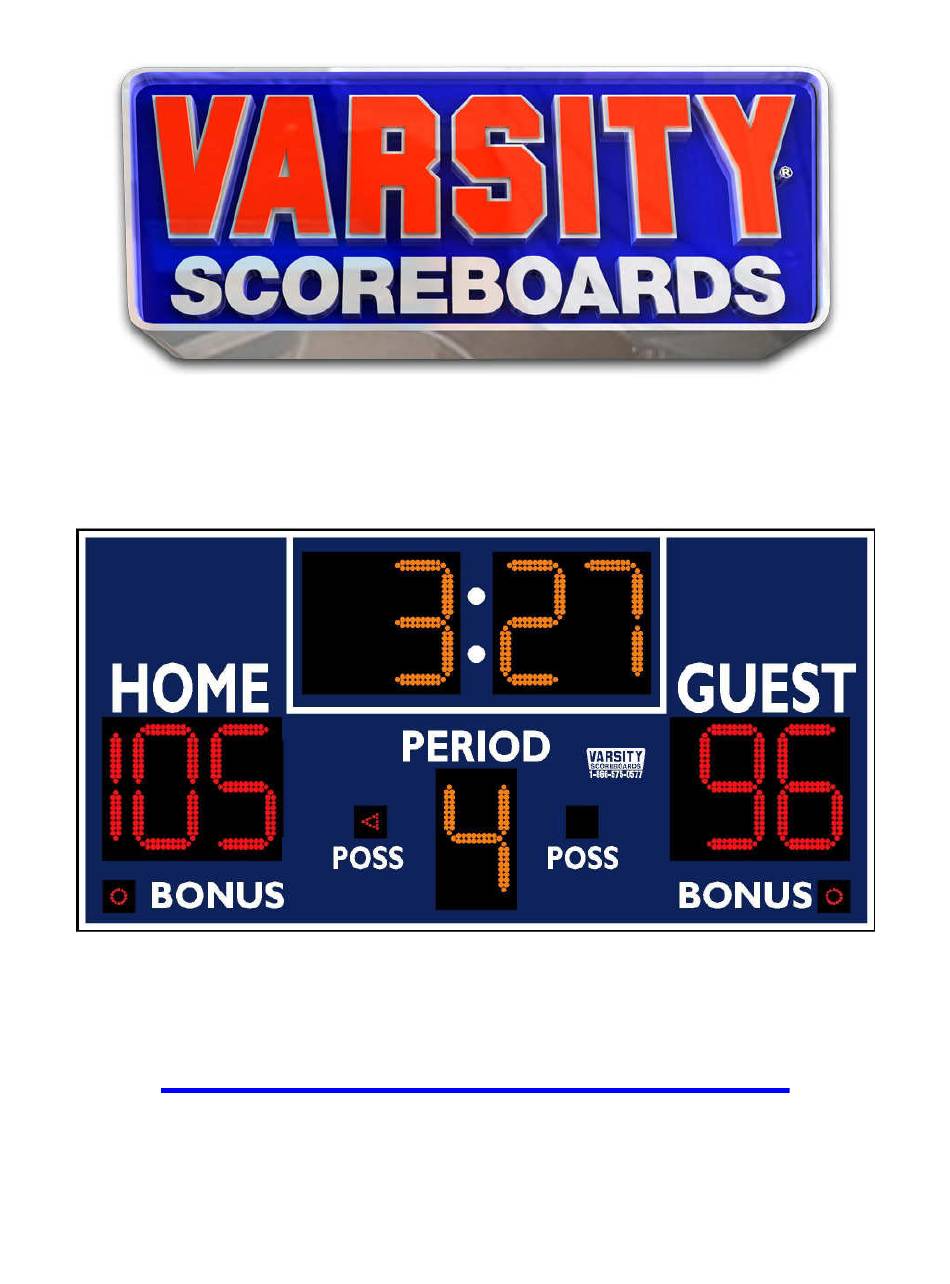

- Page 1 INSTALLATION INSTRUCTIONS MODEL VSBX-230 www.varsityscoreboards.com...
-
Page 2: Table Of Contents
Table of Contents MODEL VSBX-230 ..............................3 8’ X 4’ INDOOR SCOREBOARD .......................... 3 THE SCOREBOARD SYSTEM SHOULD INCLUDE THE FOLLOWING PARTS: ......3 INSTRUCTIONS FOR REPORTING SHIPPING DAMAGE ................. 3 PRODUCT SPECIFICATIONS ..........................4 Overall Dimensions: ............................4 Weight: ..................................4 Power Requirements: ............................ -
Page 3: Model Vsbx-230
MODEL VSBX-230 8’ X 4’ INDOOR SCOREBOARD NOTE TO INSTALLERS: PLEASE RETURN THIS MANUAL TO THE INDIVIDUAL IN CHARGE OF THE SCOREBOARD UPON COMPLETION OF INSTALLATION. The scoreboard and all accompanying accessories have been carefully inspected and tested before leaving the factory. -
Page 4: Installation Overview
If damage is discovered after delivery, call the delivery company to report the concealed damage and please call the manufacturer immediately to report. Concealed damage must be reported within 5 days after the delivery date. If the damages are found after this time, the manufacturer will not be responsible. -
Page 5: Communication Cable Requirements (For Cable-Controlled Systems Only)
Communication Cable Requirements (for cable-controlled systems only): Four conductor cable – 28 gauge, twisted pair (two pairs), shielded data cable MOUNTING THE SCOREBOARD TO A WALL NOTE: Use hardware appropriate for the wall type you are mounting to and capable of supporting the weight of the scoreboard. -
Page 6: Hanging The Scoreboard From The Ceiling
HANGING THE SCOREBOARD FROM THE CEILING 1. Remove the scoreboard from its packaging, making sure not to pry against or cut into the scoreboard. Inspect the unit for shipping damage according to the instructions on page 3. NOTE: CARE MUST BE TAKEN NOT TO DAMAGE THE SCOREBOARD WHILE LIFTING IT INTO PLACE. IF THE SCOREBOARD WILL BE “AGAINST”... -
Page 7: At The Scorekeeper's Location
NOTE: IF THE WIRES IN YOUR CABLE DO NOT COLOR MATCH WHAT IS SHOWN, CONNECT TO THE TERMINALS WITH THE BLACK, GREEN, AND WHITE CONDUCTORS. DO NOT CONNECT A WIRE TO THE RED TERMINAL. MATCH THE SAME COLORS IN YOUR CABLE TO THE BLACK, GREEN, AND WHITE WIRES ON THE BACK OF THE WALL PLATE AT THE SCORING LOCATION. -
Page 8: Running & Connecting The Electric Service
3. Close and secure the module access door. RUNNING & CONNECTING THE ELECTRIC SERVICE 1. The scoreboard has a ½” knock-out on the top left corner for bringing in the electrical service. It can be enlarged if the conduit size is ¾”. This is where the conduit from the power source needs to terminate. -
Page 9: Testing The Installed System
TESTING THE INSTALLED SYSTEM NOTE: Please refer to the OPERATORS MANUAL on the CD, or included with the system to operate the scoreboard. At Start-Up: When the scoreboard is initially powered up, it should display “zeros” in the Home and Guest scores and a “one”... -
Page 10: Warranty Activation/Installation & Completion Sign Off Sheet
IMPORTANT! Warranty Activation/Installation & Completion Sign Off Sheet NOTE: This sheet must be completely filled out and returned/faxed (270) 753-3773 to Scoreboard Service Company before your warranty can be activated. Your Serial Number _______________________________________ Your Model Number _______________________________________ Date Purchased _______________________________________ Sales Agent _______________________________________...
