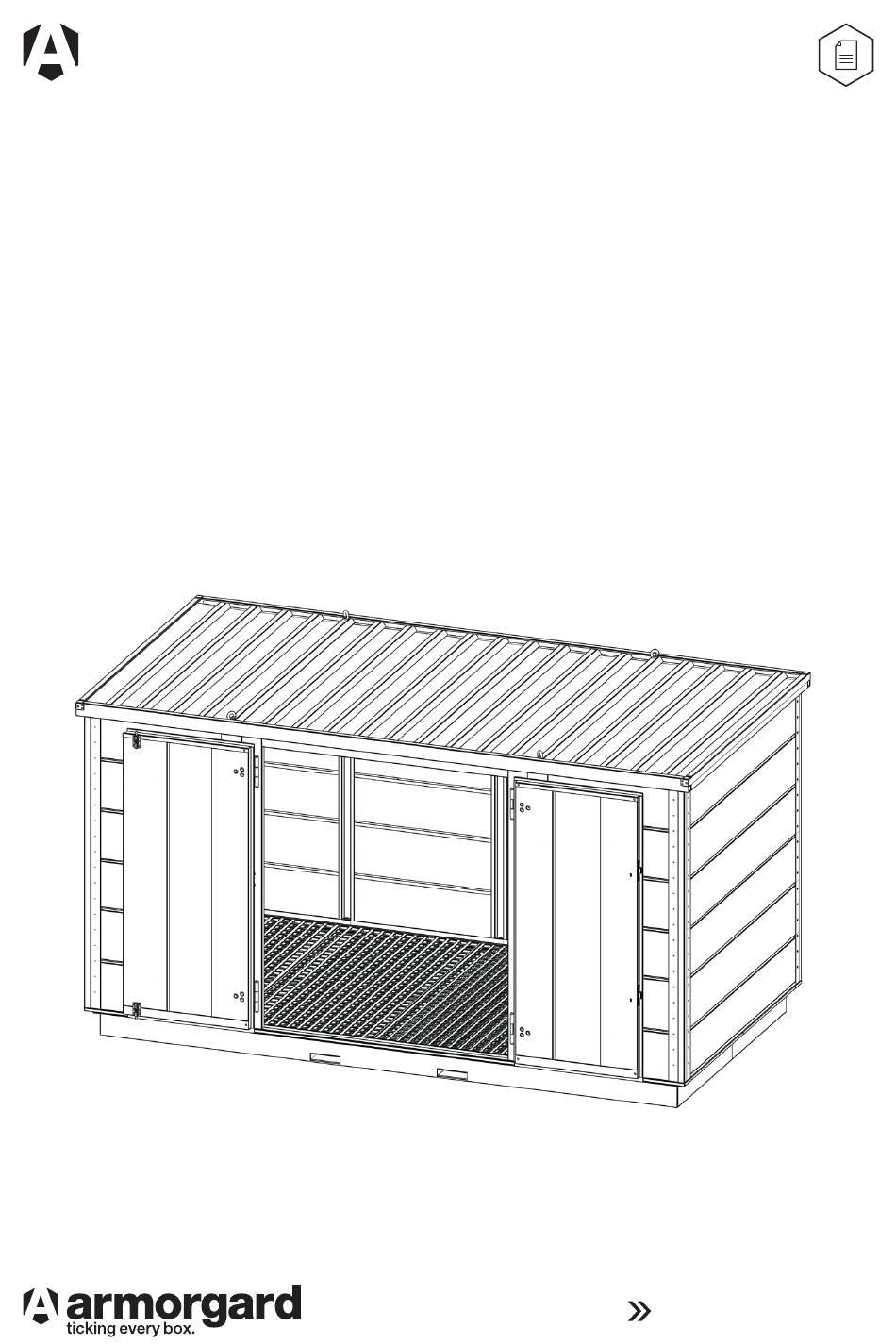

- Page 1 COSHH Operational and maintenance manual Suitable for: FR100-C, FR200-C, FR300-C, FR400-C 023 9238 0280 armorgard.co.uk...
- Page 2 Welcome Welcome to your Armorgard Forma-Stor COSHH. Our COSHH compliant, secure storage solution for portable, fast-assembly storage. The collapsible walk-in container can be erected in minutes from flat-packed panels, making it safe, simple and secure. Please read this operational and maintenance manual carefully prior to setting up the Forma-Stor COSHH.
-
Page 3: Table Of Contents
Contents Safety information Product specification What’s included Tools you’ll need Getting to know your Forma-Stor COSHH How to assemble Dismantling the Forma-Stor COSHH Using the lifting eyes Optional extras Attaching the BlokkaBar Using the BlokkaBar Attaching the ramp Attaching the shelves Cleaning up spillages Storing the unit Transporting the unit... -
Page 4: Safety Information
Safety information Before using the Forma-Stor COSHH, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence. Ensure that the Forma-Stor COSHH is not damaged before using it. Ensure that all parts are in good working condition prior to using the Forma-Stor COSHH. - Page 5 NOT be installed in the Forma-Stor COSHH units in case of explosion risk when there is storage of hazardous substances inside the store. For lighting solutions for FormaStor COSHH, please contact Armorgard for ATEX solutions. Whilst every effort has been made to ensure this operational and maintenance manual covers every aspect needed to operate your product safely, please take care whilst using the product and always operate with caution.
-
Page 6: Product Specification
Product specification Product Description Weight External Dimensions Internal Dimensions Code (kg) W x D x H (mm) W x D x H (mm) Forma-Stor FR100-C flat FR100-C 2075 x 1000 x 2195 1920 x 845 x 1910 pack COSHH store Forma-Stor FR200-C flat FR200-C... -
Page 7: What's Included
What’s included... 8x M12x45mm bolts 8x M12x20mm bolts 8x pipe linchpin (FR100-C, FR200-C, FR300-C) 10x M12x45mm bolts (FR400-C) 16x M12 washers (FR100-T, 4x M12 lifting eye with 1x door panel FR200-T, FR300-T) rubber washer 2x2m (FR100-C, FR200-C) 18x M12 washers 3x2m (FR300-C) (FR400-T) 4x2m (FR400-C) -
Page 8: Tools You'll Need
1x back panel 2x2m (FR100-C, FR200-C) 3x2m (FR300-C) 4x2m (FR400-C) Tools you’ll need... 19mm spanner An impact or an electric driver with 19mm wrench socket Ratchet with 19mm socket... -
Page 9: Getting To Know Your Forma-Stor Coshh
Getting to know your forma-stor COSHH COSHH compliant, quick-assembly, modular storage units for the safe storage of hazardous substances Roof panel Back panel Side panel Door panel Side panel Grid fl ooring Open steel fl oor - allows spillages to drain directly into sump Crane lifting... - Page 10 Data plate which Crane lifting eyes lists each unique product serial number 5-lever deadlocks Forklift pockets for ease of transportation 960L 220L 440L 680L COSHH COSHH Sump capacity Sump capacity Sump capacity Sump capacity compliant (FR400-C) (FR100-C) (FR200-C) (FR300-C)
-
Page 11: How To Assemble
How to assemble To begin assembling the Forma-Stor Fit the floor mesh, adjusting the COSHH, place the base on a level, sliding central support to the centre, stable surface. if applicable. Place one of the side panels on Next, position the rear panel to the base, using the 20mm bolts to form a corner. - Page 12 Fix pipe linchpins in each corner, There are two linchpins for each corner. and bolt in the 20mm and 45mm bolts to secure it to the base. The door panel is the last panel to Place the other side panel on the be fixed on.
- Page 13 Now place the roof on top. We Ensure the grooves in the roof fit suggest for extra persons to securely to the top of each of the support inside the unit to balance four panels. the roof. Lastly, fix the roof in place using The Forma-Stor COSHH is now the 45mm bolts provided.
-
Page 14: Dismantling The Forma-Stor Coshh
Dismantling the Forma-Stor COSHH To dismantle the Forma-Stor Remove the roof first, followed by COSHH, remove the parts in reverse the door panel, a side panel, the rear order to which they were assembled. panel, and then the remaining side panel. -
Page 15: Using The Lifting Eyes
Using the lifting eyes Before lifting, ensure that the bolts Attach the lifting equipment to all holding the lifting eyes are securely four lifting eyes and ensure that the in place. load is lifted evenly across all four eyes. Lifting eyes should only be used once confirmed by a qualified person on site. -
Page 16: Optional Extras
Contact the Armorgard team to find out more about the optional extras for your product. Please note that the Forma-Stor lighting kit must NOT be installed in the Forma- Stor COSHH units in case of explosion risk when there is storage of hazardous substances inside the store. -
Page 17: Attaching The Blokkabar
Attaching the BlokkaBar (optional extra) To install the BlokkaBar, locate the Place the lock housing of the pre-drilled holes on either side of the BlokkaBar on the left side of the door. Then, remove the coach bolts door. The other housing should and blanking plate. -
Page 18: Using The Blokkabar
Using the BlokkaBar To unlock the BlokkaBar, place the Remove the bar by pulling it and sliding key in the keyhole of the lock on the it to the left. This will allow the access bottom, and turn. This will unlock, to the door’s locking system. -
Page 19: Attaching The Ramp
Attaching the ramp (optional extra) Position the ramp along the opening When using the ramp, do not exceed of the Forma-Stor COSHH, with the the 1 tonne UDL that it was designed doors of the unit open to improve for. Do not close the door whilst the accessibility when moving equipment. -
Page 20: Attaching The Shelves
Attaching the shelves (optional extra) When fitting shelves inside the Forma- Locate the relevant inner slots on the Stor COSHH, do not exceed the 200kg back panel, and position the shelf by UDL the shelf was designed for. No tilting and inserting the pocket on its fixings are required for shelves. -
Page 21: Cleaning Up Spillages
The best spillage prevention method is to keep hazardous substances stored compliant with COSHH regulations. The fully welded sump on the Armorgard Forma-Stor COSHH should catch any spillages. This should be cleaned and emptied every three months, or whenever it is full to prevent build-up of hazardous waste. -
Page 22: Storing The Unit
Storing the unit The Forma-Stor COSHH can be When storing hazardous goods, do stacked in its flat-packed form to not place chemicals and flammables save space when storing. in the same store. Ensure that the store is suitable for what you are storing. -
Page 23: Transporting The Unit
When lifting the panels, use a trolley to ease manual handling if the panels are too heavy. During transport, ensure that the Armorgard can supply Forma-Stor Forma-Stor COSHH is secured to the COSHH units pre-erected, please carrier by strapping down the unit enquire to fi nd out more. -
Page 24: Equipment Care
Equipment care The Forma-Stor COSHH is weatherproof and constructed with a durable powder coated/ galvanised finish, so it is suitable for outdoor use, however it does not mean it is waterproof. It is always important to note that any equipment susceptible to water damage should be sealed and placed higher up the Forma-Stor COSHH, using the optional shelves if necessary. -
Page 25: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of 12 months - please refer to the terms and conditions for what this covers. We also keep replacement keys and offer replacement locks for all Armorgard products up to 5 years old. -
Page 26: Notes
Notes... - Page 27 Notes...
