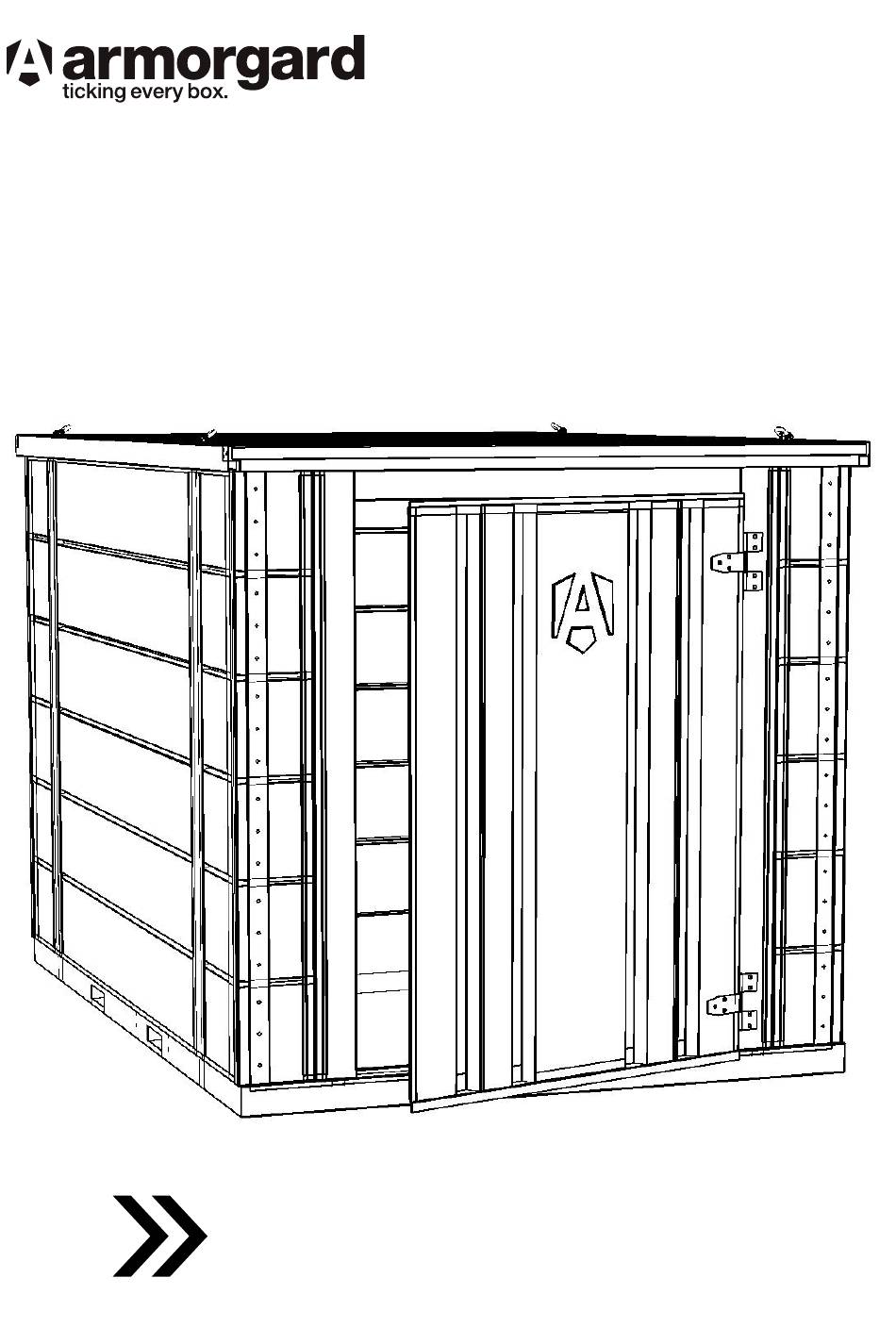

- Page 1 COSHH ™ Model Numbers FR100-C - FR400-C User manual for your Armorgard Forma-Stor COSHH...
-
Page 2: Table Of Contents
Welcome... to your Armorgard Forma-Stor COSHH, the most secure solution for portable and fast-assembly storage. The Forma-Stor COSHH can be erected in minutes from flat pack panels, making it, simple, safe, and secure! Please read this user manual carefully prior to setting up the Forma-Stor COSHH... -
Page 3: Safety Information
Safety Information At least 2 people are required to safely erect or take down the Forma-Stor COSHH and all relevant PPE must be worn while doing so. The Forma-Stor COSHH must be positioned on a flat, solid surface, and should be level and stable before being used. Ensure the Forma-Stor COSHH is fully constructed and that it is empty before lifting or moving it. -
Page 4: Contents
Contents FR100-C pack contents: FR200-C pack contents: 2x 1m side panels 2x 2m side panels 1x 2m rear panel 1x 2m rear panel 1x 2m door panel 1x 2m door panel 1x 1x2m base 1x 2x2m base 1x 1x2m roof 1x 2x2m roof 8x M12 x 20mm bolts 8x M12 x 20mm bolts... -
Page 5: Erecting The Forma-Stor Coshh
Erecting the Forma-Stor COSHH To begin assembling the Bolt in the 20mm bolts and Forma-Stor COSHH, place the washers into each corner of the sump on a level, stable surface. base, two to every corner. Place one of the side panels on Ensure it is supported safely the base, using the bolts in step 2 while the 45mm bolts are fixed in,... - Page 6 Place the rear panel next to form a Put a pipe linchpin through the corner which will support the side aligned holes in the rear panel and panel. side panel to hold them together. There are two linchpins for each Place the other side panel on the corner.
- Page 7 Secure the corner with two more The door panel is the last panel linchpins. to be fixed on. This slots onto the sump and is fixed to the side panels with linchpins as described in step 5. Now place the roof on top. Ensure the grooves in the roof fits vvinside the unit to balance the in the top of the 4 panels all the...
-
Page 8: Breaking Up The Forma-Stor Coshh
Lastly, fix the roof in place using The Forma-Stor COSHH is now the bolts provided. ready for use. Breaking up the Forma-Stor COSHH To break up the Forma-Stor The roof is removed first, followed COSHH, remove the parts in the by the door panel, a side panel, reverse order to that which they the rear panel and the remaining... -
Page 9: Using The Lifting Eyes
Using the lifting eyes Before lifting, ensure that the bolts Attach the lifting equipment to all holding the lifting eyes are securely four lifting eyes and ensure that in place. the load is lifted evenly across all four eyes. WARNING! The lifting eyes are provided only for positioning the Forma-Stor COSHH, and the unit must be empty while lifting. -
Page 10: Additional Kits
The Forma-Stor COSHH can be fitted with an optional shelving kit. Please call 023 9238 0280 for more details. General Information Lost Keys? Replacement keys can be purchased from Armorgard, using the serial number on the product. Spare Parts The following parts are available to order as spares:... - Page 11 View our full range of products online at www.armorgard.co.uk...
- Page 12 Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire PO16 8XB t: 023 9238 0280 e: sales@a-sp.co.uk w: www.armorgard.co.uk...
