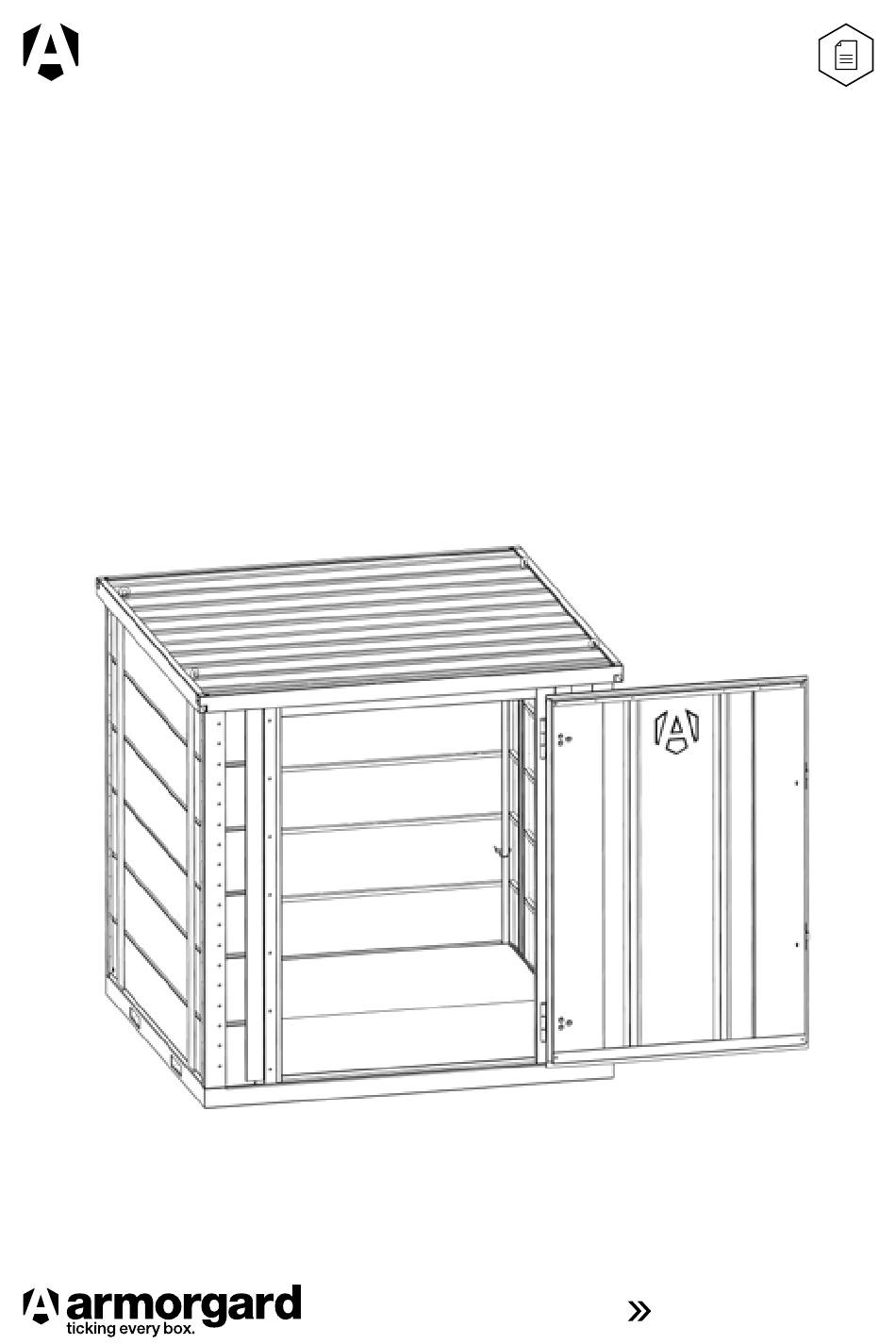

- Page 1 Operational and maintenance manual Suitable for: FR100-T, FR200-T, FR300-T, FR400-T 023 9238 0280 armorgard.co.uk...
- Page 2 Welcome Welcome to your Armorgard Forma-Stor. The most secure solution for portable and fast-assembly storage. The collapsible walk-in container can be erected in minutes from flat-pack panels, making it safe, simple and secure! Please read this operational and maintenance manual...
-
Page 3: Table Of Contents
Contents Safety information Product specification What’s included Tools you’ll need Getting to know your Forma-Stor How to assemble Dismantling the Forma-Stor Using the lifting eyes Optional extras Attaching the BlokkaBar Using the BlokkaBar Attaching the ramp Attaching the shelves Attaching the lights Storing the unit Transporting the unit Equipment care... -
Page 4: Safety Information
Safety information Before using the Forma-Stor, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence. Ensure the Forma-Stor is fully assembled and that it is empty before lifting or moving it. - Page 5 Always take precaution to ensure unit is empty from people before locking the unit. Always follow safe lifting practices. You should stand as close to the load as possible so you don’t exert more force onto your back by extending the distance. Then bend your knees and keep your upper body upright so your legs do the lifting rather than your back.
-
Page 6: Product Specification
Product specification Product Description Weight External Dimensions Internal Dimensions code (kg) W x D x H (mm) W x D x H (mm) Forma-Stor FR100-T FR100-T flat 2075x1120x2160 1920x970x1950 pack store Forma-Stor FR200-T FR200-T flat 2075x2075x2160 1920x1920x1950 pack store Forma-Stor FR300-T FR300-T flat 2075x2990x2160... -
Page 7: What's Included
What’s included... 8x M12x45mm bolts 8x M12x20mm bolts 8x pipe linchpin (FR100-T, FR200-T, FR300-T) 12x M12x45mm bolts (FR400-T) 16x M12 washers (FR100-T, 4x M12 lifting eye with 1x door panel FR200-T, FR300-T) rubber washer 2x2m 20x M12 washers (FR400-T) 2x side panels 1x roof 1x base 2x1m (FR100-T) -
Page 8: Tools You'll Need
1x back panel 2x2m Tools you’ll need... 19mm spanner An impact or an electric driver with 19mm wrench socket Ratchet with 19mm socket... -
Page 9: Getting To Know Your Forma-Stor
Getting to know your forma-stor Quick assembly, flat-pack, modular solution for on-site secure storage Roof panel End panel Side panel Door panel Side panel Floor Crane lifting Forklift skids 5-lever Collapsible Stackable eyes deadlock... - Page 10 Data plate which lists each unique product serial Crane lifting eyes number 5-lever deadlocks Forklift pockets for ease of transportation Suitable for Add up to 2 and 1mm use on-site 5 shelves material thickness...
-
Page 11: How To Assemble
How to assemble To begin assembling the Forma-Stor, Place one of the side panels on the place the base on a level, stable base, and use the 20mm bolts at surface. each end to locate the panel. Ensure it is supported safely whilst Next, position the rear panel to you use the 45mm bolts to secure form a corner. - Page 12 Fix pipe linchpins in each corner, There are two linchpins for each corner. and bolt in the 20mm bolts to secure it to the base. The door panel is the last panel to Place the other side panel on the be fixed on.
- Page 13 Now place the roof on top. We Ensure the grooves in the roof fit suggest for extra persons to securely to the top of each of the support inside the unit to balance four panels. the roof. Lastly, fix the roof in place using The Forma-Stor is now ready the 45mm bolts provided.
-
Page 14: Dismantling The Forma-Stor
Dismantling the Forma-Stor To dismantle the Forma-Stor, remove Remove the roof first, followed by the parts in reverse order to which the door panel, a side panel, the rear they were assembled. panel, and then the remaining side panel. Fixings can be bolted back into the panels for safekeeping. -
Page 15: Using The Lifting Eyes
Using the lifting eyes Before lifting, ensure that the bolts Attach the lifting equipment to all holding the lifting eyes are securely four lifting eyes and ensure that the in place. load is lifted evenly across all four eyes. Lifting eyes should only be used once confirmed by a qualified person on site. -
Page 16: Optional Extras
Take your forma-stor to the next level with these optional extras Contact the Armorgard team to find out more about the optional extras for your product. BlokkaBar Ramp To enhance your To improve Forma-Stor’s accessibility when security moving heavy equipment... -
Page 17: Attaching The Blokkabar
Attaching the BlokkaBar (optional extra) To install the BlokkaBar, locate the Place the lock housing of the pre-drilled holes on either side of the BlokkaBar on the left side of the door. Then, remove the coach bolts door. The other housing should and blanking plate. -
Page 18: Using The Blokkabar
Using the BlokkaBar To unlock the BlokkaBar, place the Remove the bar by pulling it and sliding key in the keyhole of the lock on the it to the left. This will allow the access bottom, and turn. This will unlock, to the door’s locking system. -
Page 19: Attaching The Ramp
Attaching the ramp (optional extra) Position the ramp along the opening of When using the ramp, do not exceed the Forma-Stor, with the doors of the the 1 tonne UDL that it was designed unit open to improve accessibility when for. -
Page 20: Attaching The Shelves
Attaching the shelves (optional extra) Each size Forma-Stor unit can fit up to Locate the relevant inner slots on the five shelves. Do not exceed the 200kg back panel, and position the shelf by UDL the shelf was designed for. No tilting and inserting the pocket on its fixings are required for shelves. -
Page 21: Attaching The Lights
Attaching the lights (optional extra) To attach lights to the Forma-Stor, Using a 5.5 self-drilling screw, attach locate the pre-drilled holes on the roof the light bracket to the roof using the panel. pre-drilled holes. Repeat these steps to install the second bracket. Check that brackets are secure, and Locate the 20mm hole located in the then clip the light into the brackets. - Page 22 Feed the loose end of cable from the A qualified electrician is required to lighting kit through the hole and clamp wire the chosen plug onto the end of it tightly using the gland. the cable. Carry out relevant electrical tests to ensure the system is functioning correctly and safely.
-
Page 23: Storing The Unit
Storing the unit The Forma-Stor can be stacked in To save space, Forma-Stors that are its flat-packed form to save space assembled can be safely stacked up when storing. to 2 storeys high when empty. Ensure that all locks are secured when leaving the Forma-Stor unattended. -
Page 24: Transporting The Unit
Always use the forklift pockets when transporting by forklift. When lifting the panels, use a trolley to ease manual handling if the panels are too heavy. During transport, ensure that the Armorgard can supply Forma-Stor Forma-Stor is secured to the carrier units pre-erected, please enquire to by strapping down the unit fully. -
Page 25: Equipment Care
Equipment care The Forma-Stor is weather resistant and constructed with a durable powder coated finish, so it is suitable for outdoor use, however it does not mean it is waterproof. It is always important to note that any electrics or equipment susceptible to water damage should be sealed and placed higher up the Forma-Stor, using the optional shelves if necessary. -
Page 26: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of 12 months - please refer to the terms and conditions for what this covers. We also keep replacement keys and offer replacement locks for all Armorgard products up to five years old. -
Page 27: Notes
Notes... - Page 28 Find us on social media: UK Head Office Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire, PO16 8XB +44 (0) 23 9238 0280 | sales@armorgard.co.uk | www.armorgard.co.uk France Office Australia Office New Zealand Office + 33 (0) 4 81 16 06 69...
