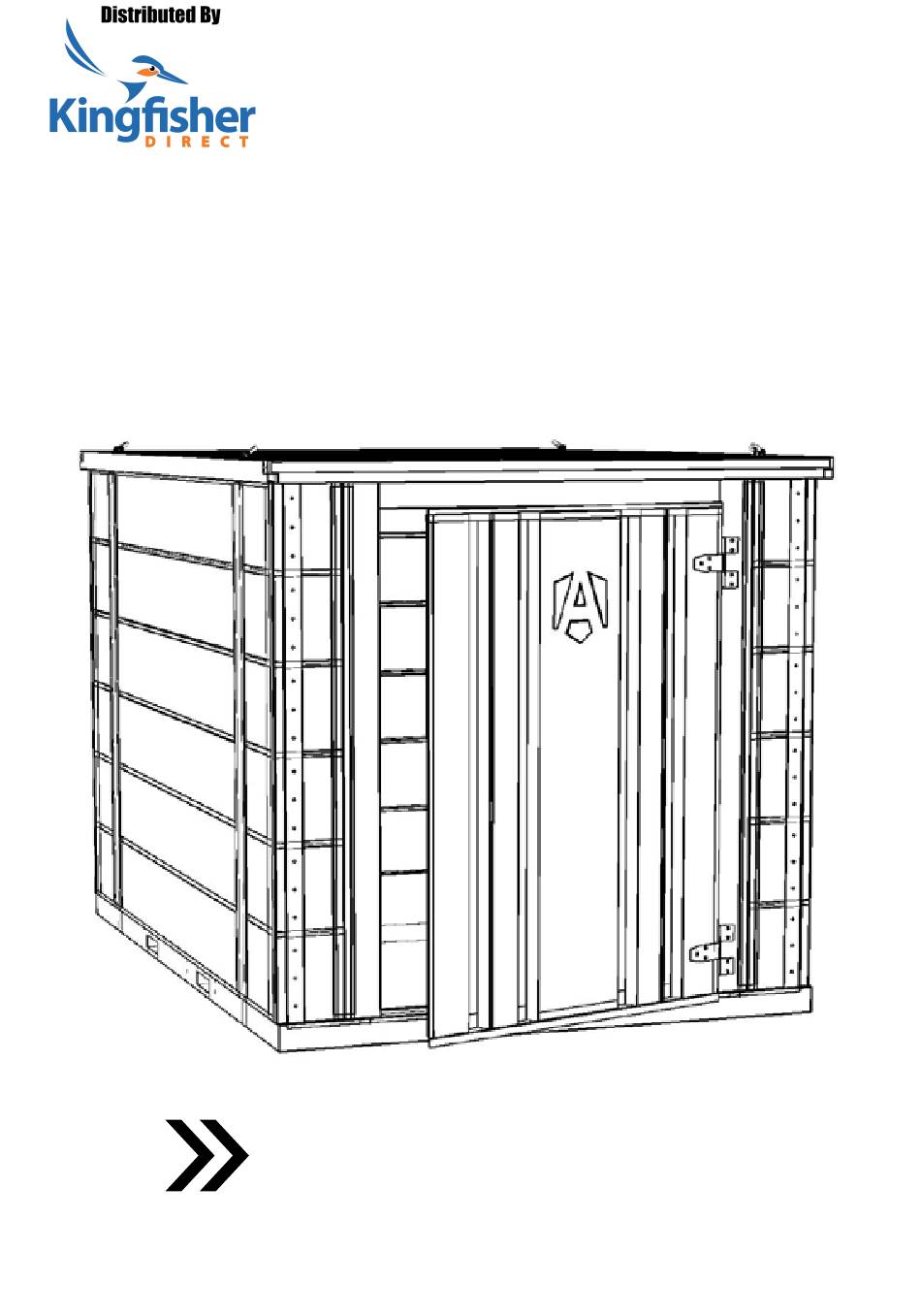

- Page 1 ™ Model Numbers FR100-T - FR400-T User manual for your Armorgard Forma-Stor...
-
Page 2: Table Of Contents
Welcome... to your Armorgard Forma-Stor, the most secure solution for portable and fast-assembly storage. The Forma-Stor can be erected in minutes from flat pack panels, making it, simple, safe, and secure! Please read this user manual carefully prior to setting up the Forma-Stor... -
Page 3: Safety Information
Safety Information At least 2 people are required to safely erect or take down the Forma-Stor and all relevant PPE must be worn while doing so. The Forma-Stor must be positioned on a flat, solid surface, and should be level and stable before being used. Ensure the Forma-Stor is fully constructed and that it is empty before lifting or moving it. -
Page 4: Contents
Contents FR100-T pack contents: FR200-T pack contents: 2x 1m side panels 2x 2m side panels 1x 2m rear panel 1x 2m rear panel 1x 2m door panel 1x 2m door panel 1x 1x2m base 1x 2x2m base 1x 1x2m roof 1x 2x2m roof 8x M12 x 20mm bolts 8x M12 x 20mm bolts... -
Page 5: Erecting The Forma-Stor
Erecting the Forma-Stor To begin assembling the Bolt in the 20mm bolts into each Forma-Stor, place the base on a corner of the base, two to every level, stable surface. corner. Place one of the side panels on Ensure it is supported safely the base, using the bolts in step 2 while the 45mm bolts are fixed in, to locate the panel. - Page 6 Place the rear panel next to form a Put a pipe linchpin through the corner which will support the side rear panel and side panel to hold panel. them together. There are two linchpins for each Place the other side panel on the corner.
- Page 7 Secure the corner with two more The door panel is the last panel linchpins. to be fixed on. This slots onto the base and is fixed to the side panels with linchpins as described in step 5. Ensure the grooves in the roof fits Now place the roof on top.
-
Page 8: Breaking Up The Forma-Stor
The Forma-Stor is now ready for Lastly, fix the roof in place using the bolts provided. Breaking up the Forma-Stor To break up the Forma-Stor, The roof is removed first, followed remove the parts in the reverse by the door panel, a side panel, order to that which they were the rear panel and the remaining assembled. -
Page 9: Using The Lifting Eyes
Using the lifting eyes Before lifting, ensure that the bolts Attach the lifting equipment to all holding the lifting eyes are securely four lifting eyes and ensure that in place. the load is lifted evenly across all four eyes. WARNING! The lifting eyes are provided only for positioning the Forma-Stor, and the unit must be empty while lifting.
