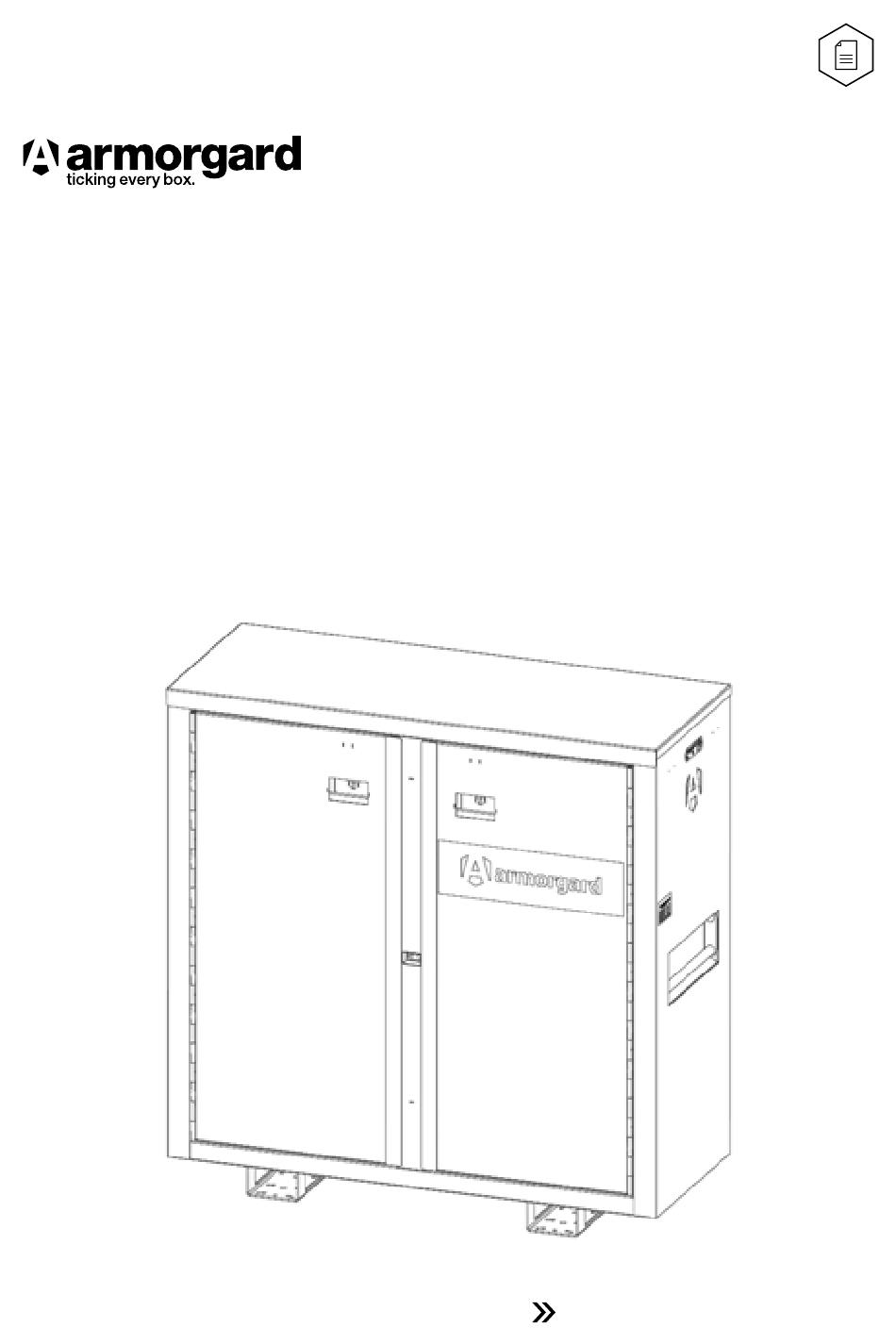

- Page 1 siteboss cabinet Operational and maintenance manual Suitable for: SB48 1-877-794-2848 info@armorgardusa.com...
- Page 2 Welcome Welcome to your Armorgard SiteBoss Cabinet. Pioneering jobsite security and usability, this cabinet is built to last and built to protect. Please consult this manual for instructions on how to get the most from the unit. Please read this operational and maintenance manual carefully prior to setting up the SiteBoss Cabinet.
-
Page 3: Table Of Contents
Contents Safety information Product specification What’s included Tools you’ll need Getting to know your SiteBoss Cabinet Padlock housing dimensions How to use Installing the padlock Installing the rubber grommet Electrical safety information How to use the lock Optional extras Installing the casters Attaching the crane lifting eye kit Storing the unit Transporting the unit... -
Page 4: Safety Information
Safety information Before using a SiteBoss Cabinet, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence. Ensure that the SiteBoss Cabinet is not damaged before using it. Always lock the unit and the casters when not in use or out of sight. Do NOT leave keys inside the unit while locking. -
Page 5: Product Specification
Only use UL or CSA listed electrical devices that meet the requirements of the local jurisdiction Always wear the appropriate PPE for the task you are performing, as outlined in your risk assessment or safe work practices. The unit has an overall WLL of 2200 lbs. While every effort has been made to ensure this operational and maintenance manual covers every aspect needed to operate your product safely, please take care when using the product and always operate with caution. -
Page 6: What's Included
What’s included... 1x SiteBoss Cabinet 1x rubber grommet 1x UltraLock fixing kit (padlock not included) 3x shelves... -
Page 7: Tools You'll Need
Tools you’ll need... Rubber mallet Adjustable or hammer (for wrench or ratchet adding rubber and socket grommet) (11/16” socket for installing padlock and 1/2” socket for casters) One person required... -
Page 8: Getting To Know Your Siteboss Cabinet
Getting to know your SiteBoss Cabinet Pioneering jobsite security and usability, this cabinet is built to last and built to protect Data plate which Adjustable Cable pass- lists each unique shelf through point product serial number Pull latch Recessed handles Stainless steel padlock locking mechanism... -
Page 9: Padlock Housing Dimensions
Padlock housing dimensions This lock system is designed to be used with a Master Lock No. 1, Master Lock No. 5, ABUS 41/50 or American Lock No. 50, or an equivalent sized lock. If you are using a padlock not listed above, it is your responsibility to make sure the lock mechanism is working correctly. -
Page 10: How To Use
How to use The SiteBoss Cabinet units arrive You may require a forklift or pallet assembled. The upper shelves have truck when unloading your Site- fixed locations and the lower shelf Boss Cabinet. can be installed in either of two positions. It is important to check that the To adjust the shelves, tilt them at an product is not damaged upon arrival angle and pivot off the brackets. -
Page 11: Installing The Padlock
Video: how to install the padlock Installing the padlock To fit the padlock, locate the cavity Inside the product, on the back of where it will be installed. the cavity (between both doors) there will be a bolt with a nut. Re- move nut and bolt to allow access for the padlock. -
Page 12: Installing The Rubber Grommet
Video: how to install the rubber grommet Installing the rubber grommet There are two cut-out plates in Next, take the rubber grommet the unit. Decide which is the most and place it from the outside to fit suitable for the intended use. Once the cut-out. Ensure it is properly located, using a rubber mallet, installed and no sharp edges are carefully knock the cut-out plate... -
Page 13: Electrical Safety Information
Electrical safety information All electrical work MUST be performed properly with safety precautions. To prevent injury or damage to property, please ensure the below information is read carefully. Only use UL or CSA listed electrical devices that meet the requirements of the local jurisdiction. -
Page 14: How To Use The Lock
How to use the lock Once the padlock is installed, to un- Push down on the pull latch to lock the unit, you will need to insert release and open the door. the key into the padlock. Twist it as normal, and this will unlock the door. -
Page 15: Optional Extras
Take your SiteBoss Cabinet to the next level with these optional extras Contact the Armorgard team to find out more about the optional extras for your product. Crane lifting eyes Casters To transport by crane To make your SiteBoss Cabinet mobile... -
Page 16: Installing The Casters
Attaching the casters (optional extra) For the SiteBoss Cabinets that Armorgard caster kits come with two can be installed with casters, lift swivel casters and two swivel-braked the unit on to a stable platform to casters. We recommend attaching ensure it does not roll and cause the braked casters on the same side. -
Page 17: Attaching The Crane Lifting Eye Kit
Video: how to attach the crane lifting eyes Attaching the crane lifting eye kit (optional extra) For the SiteBoss Cabinets that can Thread the coach bolts through the be attached with crane lifting eyes, lifting eyes, then back through the use a 13/32”... -
Page 18: Storing The Unit
Storing the unit The flat sides and recessed handles Ensure that the lock is secured when of the SiteBoss Cabinet can help leaving the SiteBoss Cabinet unat- save space when storing the unit. tended. This is essential to maintain the maximum security of the unit. When the SiteBoss Cabinet is in position, always ensure the caster brakes are used. -
Page 19: Transporting The Unit
Transporting the unit The design of the SiteBoss Cabinet makes transporting the product easy. The units come with forklift pockets for transporting using a forklift or pallet truck. Optional casters and crane lifting eyes can be installed to these units using the pre-drilled holes. Please note that units are heavy may require assistance to lift, and it is always advised to lift the units when they are empty of contents. -
Page 20: Equipment Care & Ongoing Maintenance
Equipment care The SiteBoss Cabinet is weather resistant and finished with a durable powder coating, so it is suitable for outdoor use, however, it does not mean it is waterproof. It is always important to note that any electrical components or equipment susceptible to water damage should be sealed. Always ensure that the product data plate remains visible and in good condition, especially the unique serial number. -
Page 21: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of seven years - please refer to the terms and conditions for what this covers. Do not force entry into the product, as this could affect the warranty. Contact your padlock distributor if you require a replacement lock or key. - Page 22 1.4.1 Defect Arises Because the Buyer Failed to Follow the Seller’s Oral or Written Instruc- tions as to the Storage, Installation, Commissioning, Use or Maintenance of the Goods or (if There Are None) Good Trade Practice; 1.4.2 the Buyer Alters or Repairs the Goods Without the Written Consent of the Seller; 1.4.3 Defect Arises From Fair Wear and Tear (as Determined by the Seller in Its Sole and Absolute Discretion), Cosmetic Rust, Scratches, Dents, or Willful Damage, Negligence, Ab- normal Working Conditions or Misuse, Environmental or Other External Factors;...
-
Page 23: Spare Parts
Spare parts Replacement Replacement casters shelves Other spare parts available. Please get in touch for more information. - Page 24 Find us on social media: UK Head Office Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire, PO16 8XB +44 (0) 23 9238 0280 | sales@armorgard.co.uk | www.armorgard.co.uk France Office Australia Office + 33 (0) 4 81 16 06 69 +61 (0) 1300 131 751 commercial@armorgard.fr...
