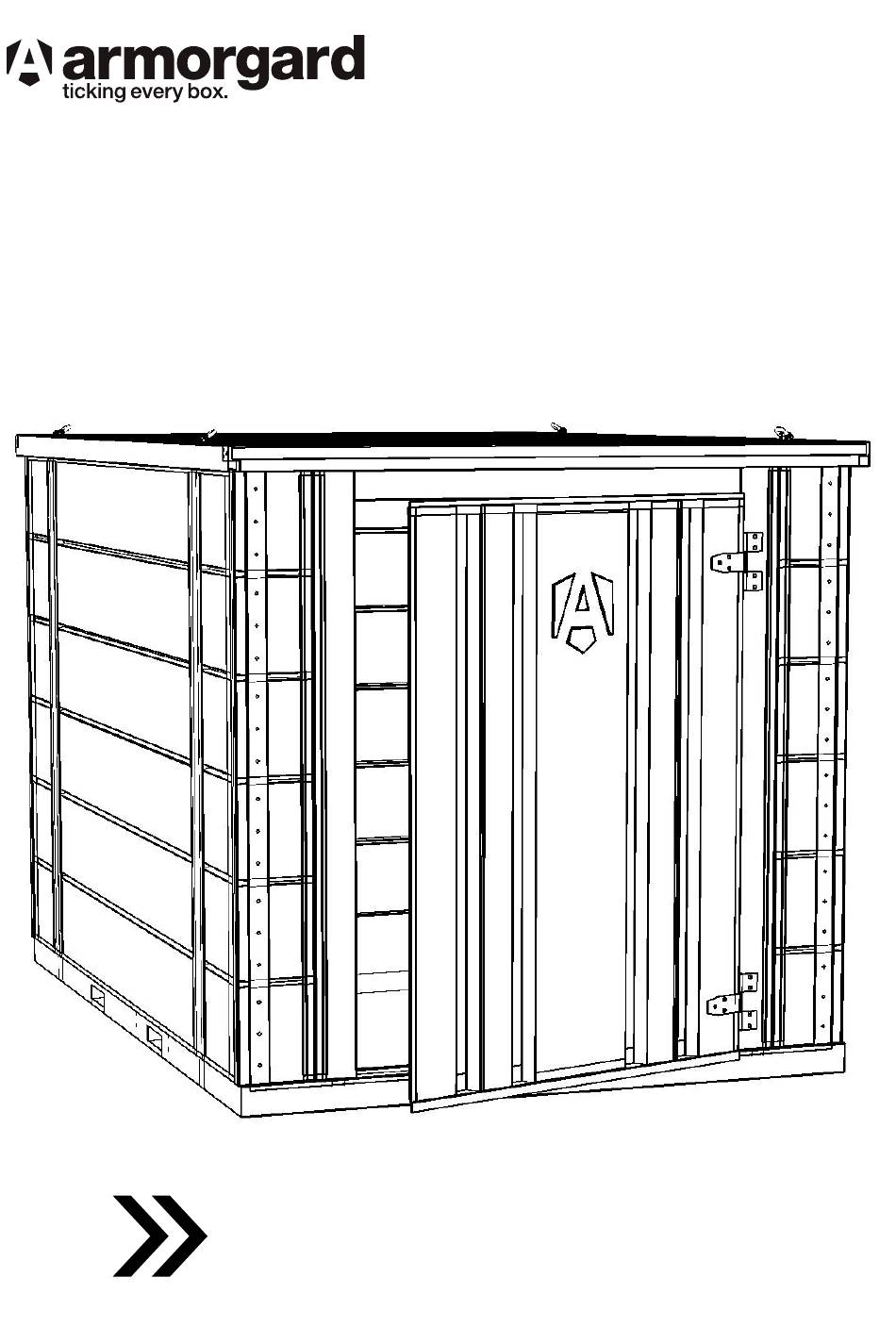

- Page 1 ™ Model Numbers FR100-T - FR400-T User manual for your Armorgard Forma-Stor...
-
Page 2: Table Of Contents
Welcome... to your Armorgard Forma-Stor, the most secure solution for portable and fast-assembly storage. The Forma-Stor can be erected in minutes from flat pack panels, making it, simple, safe, and secure! Please read this user manual carefully prior to setting up the Forma-Stor Contents Welcome... -
Page 3: Safety Information
Safety information At least 2 people are required to safely erect or dismantle the Forma-Stor and all relevant PPE must be worn while doing so. The Forma-Stor must be positioned on a flat, solid surface, and should be level and stable before being used. Ensure the Forma-Stor is fully assembled and that it is empty before lifting or moving it. -
Page 4: Contents
Contents FR100-T pack contents: FR200-T pack contents: 2x 1m side panels 2x 2m side panels 1x 2m rear panel 1x 2m rear panel 1x 2m door panel 1x 2m door panel 1x 1x2m base 1x 2x2m base 1x 1x2m roof 1x 2x2m roof 8x M12 x 20mm bolts 8x M12 x 20mm bolts... -
Page 5: Erecting The Forma-Stor
Erecting the Forma-Stor To begin assembling the Place one of the side panels on Forma-Stor, place the base on a the base, using the bolts in step 2 level, stable surface. to position the panel. Ensure it is supported safely whilst Next, position the rear panel to you use the 45mm bolts to secure form a corner. - Page 6 Fix a pipe linchpins in each corner. There are two linchpins for each corner. Place the other side panel on the Bolt in the 20mm bolts into each base, and secure it with bolts as corner of the base, two to every described in steps 3-4.
- Page 7 Secure the corner with two more The door panel is the last panel linchpins. to be fixed on. This slots onto the base and is fixed to the side panels with linchpins as described in step 6. Ensure the grooves in the roof fit Now place the roof on top.
-
Page 8: Dismantling The Forma-Stor
The Forma-Stor is now ready for Lastly, fix the roof in place using the bolts provided. Dismantling the Forma-Stor To dismantle the Forma-Stor, Remove the roof first, followed by remove the parts in reverse the door panel, one of the side order to that which they were panels, the rear panel and then assembled. -
Page 9: Using The Lifting Eyes
Using the lifting eyes Before lifting, ensure that the bolts Attach the lifting equipment to all holding the lifting eyes are securely four lifting eyes and ensure that in place. the load is lifted evenly across all four eyes. WARNING! The lifting eyes are provided only for positioning the Forma-Stor, and the unit must be empty while lifting. -
Page 10: Additional Kits
The Forma-Stor can be fitted with an optional shelving kit. Please call 023 9238 0280 for more details. General information Lost Keys? Replacement keys can be purchased from Armorgard, using the serial number on the product. Spare Parts The following parts are available to order as spares:... - Page 11 View our full range of products online at www.armorgard.co.uk...
