''Select'' key
See table
''Functions available from main screen''
''Function'' key
1x : ''Hold'' : measure holding
2x : ''Min/Max'' : display of minimum and
maximum values from channel 1
since last request.
3x : ''Min/Max'' : display of minimum and
maximum values from channel 2
since last request.
4x : Back to held measure.
Manometers

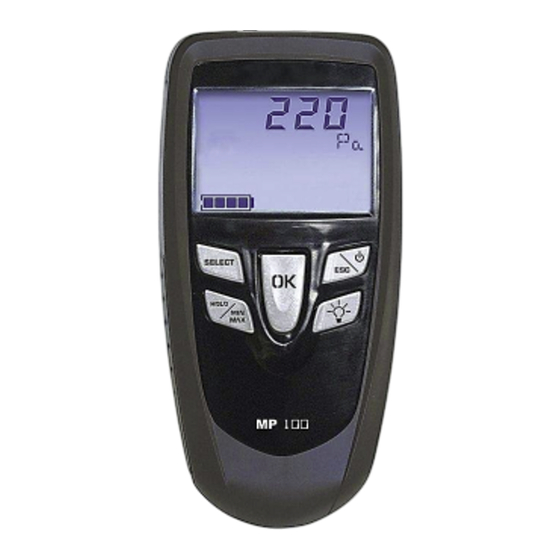

MP 100 - 101 – 105– 112
MP 120
''On / off'' key
ON : Switch-on
OFF : Switch-off
Escape : Return to previous screen
''Backlight'' key
1x
Level 1
2x
Level 2
3x
No backlight
''OK'' key
1x ''To validate''
or ''Self-calibration'' see P2.
Advertisement
Related Manuals for E Instruments MP 100
Summary of Contents for E Instruments MP 100
- Page 1 Manometers MP 100 - 101 – 105– 112 MP 120 ''Select'' key ''On / off'' key See table ON : Switch-on ''Functions available from main screen'' OFF : Switch-off Escape : Return to previous screen ''Function'' key ''Backlight'' key 1x : ''Hold'' : measure holding...
- Page 2 Functions available from main screen Self-calibration Start self-calibration countdown* Select pressure Press to scroll down units Validate with units Automatic Press to scroll down minutes Validate with shut-off Beep Press to activate or deactivate Validate with Functions available from main screen (only for MP120 instrument) Self-calibration Start of self-calibration countdown* Velocity...
