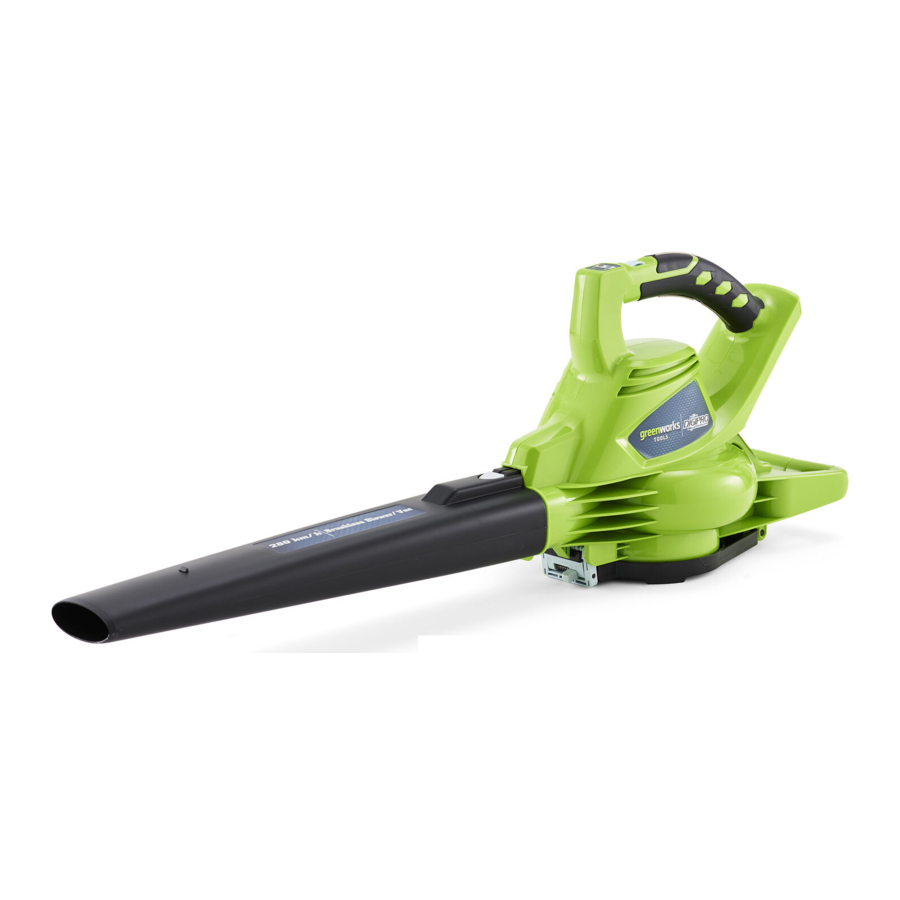

GreenWorks GD24X2BV, GD40BVK2X Manual

GreenWorks GD24X2BV, GD40BVK2X Manual

Also See for GD24X2BV:

Advertisement

GreenWorks GD24X2BV, GD40BVK2X Manual

DESCRIPTION

PURPOSE

The machine is used to propel air out of a tube to move unwanted materials such as leaves in the yard. This machine also sucks in leaves and small twigs through a vacuum, and shreds them into a bag.

OVERVIEW

Figure 1 - 13.

  1. Speed dial
  2. Speed button
  3. On/off button
  4. Blower tube
  5. Gate
  6. Auxiliary handle
  7. Vac tube
  8. Collection bag
  9. Lock button
  10. Slot
  11. Notched area
  12. Nozzle
  13. Battery release button

GENERAL POWER TOOL SAFETY WARNINGS


Read all safety warnings, instructions, illustrations and specifications provided with this power tool.Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

INSTALLATION

UNPACK THE MACHINE


Make sure that you correctly assemble the machine before use.

  • If parts of the machine are damaged, do not use the machine.
  • If you do not have all the parts, do not operate the machine.
  • If parts are damaged or missing, contact the service center.
  1. Open the package.
  2. Read the documentation provided in the box.
  3. Remove all the unassembled parts from the box.
  4. Remove the machine from the box.
  5. Discard the box and packing material in compliance with local regulations.

ASSEMBLE AS A VAC

Figure 2 - 8.


Make sure that the machine is in the OFF position, and the impellers stop before you attach or remove tubes.

  1. Move the front and rear vac tubes together until the lock button engages. (Figure 2)
  2. Pull the lock button forward to disengage the gate. (Figure 3)
  3. Hold the gate open.
  4. Put the "wedged" end clip of the vac tube into the rear clip. (Figure 4)
  5. Push the "hooked" end clip of the vac tube into the front clip. (Figure 5)
  6. Push back the lock button to engage the vac tubes. (Figure 6-7)
    information TIP
    You can do the steps above in the opposite sequence to remove the vac tubes.
  7. Put the bag adaptor into the blower outlet. Lock the bag securely on the locking area. (Figure 8)

warning NOTE
It can be necessary to remove the blower tube or vac tubes to clean a blocked tube or impeller.

ASSEMBLE AS A BLOWER

Figure 9.

  1. Insert the nozzle into the blower tube from the top and let it slide down to the bottom.
  2. Pull the nozzle to lock in its final position.
  3. Push the blow tube on the notched area of the main unit until the slot of the tube is locked on the notched area.

warning NOTE
You can use the nozzle to increase airflow in tight areas: flower beds, under decks, etc.

INSTALL THE BATTERY PACKS

Figure 10.

  • If the battery pack or charger is damaged, replace the battery pack or the charger.
  • Stop the machine and wait until the engine stops before you install or remove the battery packs.
  • Use only 24V battery packs. Do not use dual-voltage 24/48V battery packs.
  • Both battery packs should be installed in the compartments in order to start the machine.
  1. Align the lift ribs on the battery pack with the grooves in the battery compartment.
  2. Push the battery pack into the battery compartment until the battery pack locks into place.
  3. When you hear a click, the battery pack is installed.
  4. Do the same operation with the other battery pack.

warning NOTE
Optimize the power and performance of your new 2x24V machine by running with both battery packs charged to 100%. If each battery has a different charge state, the run-time of the machine is subject to the lowest powered battery (For example: one battery is charged 100%, and the other is charged 50%, the unit will only run until the 50% battery is depleted).

REMOVE THE BATTERY PACK

Figure 10.

  1. Push and hold the battery release button.
  2. Remove the battery pack from the machine.

OPERATION

START THE MACHINE

Figure 11.

  1. Push the on/off button in the on position.
  2. Turn the speed dial forward to increase speed.

STOP THE MACHINE

Figure 11.

  1. Push the On/off button.

OPERATION TIPS

  • Make sure that the machine is in good condition.
  • Make sure that the tubes and guards are in position.
  • Do not point the machine at the person or loose materials before you start the unit.
  • Ear protection is necessary to decrease the risk of hearing loss related to noise level.
  • Obey all applicable laws, regulations, standards and ordinances.

OPERATE AS A GARDEN VAC

Figure 12.

  1. Hold the machine tightly.
  2. Hold the machine in a way the suction pipe is slightly tilted 5 - 10 cm above the floor.
  3. Use a sweeping action to collect light unwanted materials.

warning NOTE
Make sure that you install and zip the bag.

warning NOTE
Use the shoulder strap.

OPERATE AS A BLOWER

  1. Hold the machine tightly.
  2. Operate from side to side.
  3. Move the machine forward slowly.
  4. Keep the collected unwanted materials in front of you.

warning NOTE
Use rakes and brooms to loosen the unwanted material before you blow.

warning NOTE
Use the low speed to move dry items, and high speed to move heavy items such as large unwanted materials or gravel.

MAINTENANCE


Do not let brake fluids, gasoline, petroleum-based materials touch the plastic parts. Chemicals can cause damage to the plastic, and make the plastic unserviceable.


Do not use strong solvents or detergents on the plastic housing or components.


Remove the battery pack from the machine before maintenance.

CLEAN THE MACHINE


The machine must be dry. Humidity can cause risks of electrical shocks.

  • Clear the unwanted material out of the air vent with a vacuum cleaner.
  • Do not spray the air vent or put the air vent in solvents.
  • Clean the housing and the plastic components with a moist and soft cloth.

CLEAN THE COLLECTION BAG

  • Wear safety glasses and a dust mask.
  • If it is necessary, clean the bag 1 time a year or more.
  1. Remove the bag.
  2. Turn the bag inside out.
  3. Hang the bag up and clean it.
  4. Hang the bag to dry.
  5. Turn the bag right-side out and install it again.

TRANSPORTATION AND STORAGE


Remove the battery pack from the machine before transportation and storage.

MOVE THE MACHINE

  • Only hold the machine with the handgrip.

STORE THE MACHINE

  • Clean the machine before storage.
  • Make sure that the motor is not hot when you store the machine.
  • Make sure that the machine does not have loose or damaged parts. If it is necessary, do these steps/ instructions:
    • Replace the damaged parts.
    • Tighten the bolts.
    • Speak to a person of an approved service center.
  • Store the machine in a dry area.
  • Make sure that children cannot come near the machine.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The machine does not blow or vacuum. The tube has blockages. Make sure that the tube is clear.
The impeller has blockages. Make sure that the impller is clear.
The bag is full. Empty the bag.
The bag is dirty. Clean the bag.
The bag is damaged. Replace the bag.
The bag is unzipped. Close the bag.
The battery pack is not secure. Make sure that you latch the battery pack correctly.
The battery capacity is low. Charge the battery pack.
The machine does not start. The on/off button is in the OFF position. Push the on/off button.
The on/off button is defective. Replace the defective parts by an approved service centre.
The tube is not installed correctly. Make sure that you install the tube correctly.
The gate is not locked. Make sure that you lock the gate.
The battery pack is not secure. Make sure that you latch the battery pack correctly.
The battery capacity is low. Charge the battery pack.

TECHNICAL DATA

Voltage 2X24 V DC
Air volume 9 m³/min
Air speed 322 km/h
Weight (without battery pack) 4.35 kg
Measured sound pressure level LPA= 90 dB(A), KPA= 3 dB(A)
Guaranteed sound power level LWA.d= 106 dB(A)
Vibration 2 , K = 1.5 m/s2
Battery model G24B2, G24B4 and other BAG series
Charger model 2904307, 2904407, 29817, 29827, 2913907, 2932407, 2932407UK, 2931907 and other CAG series

WARRANTY

The full warranty terms and conditions can be found on Greenworks website https://www.greenworkstools.eu
