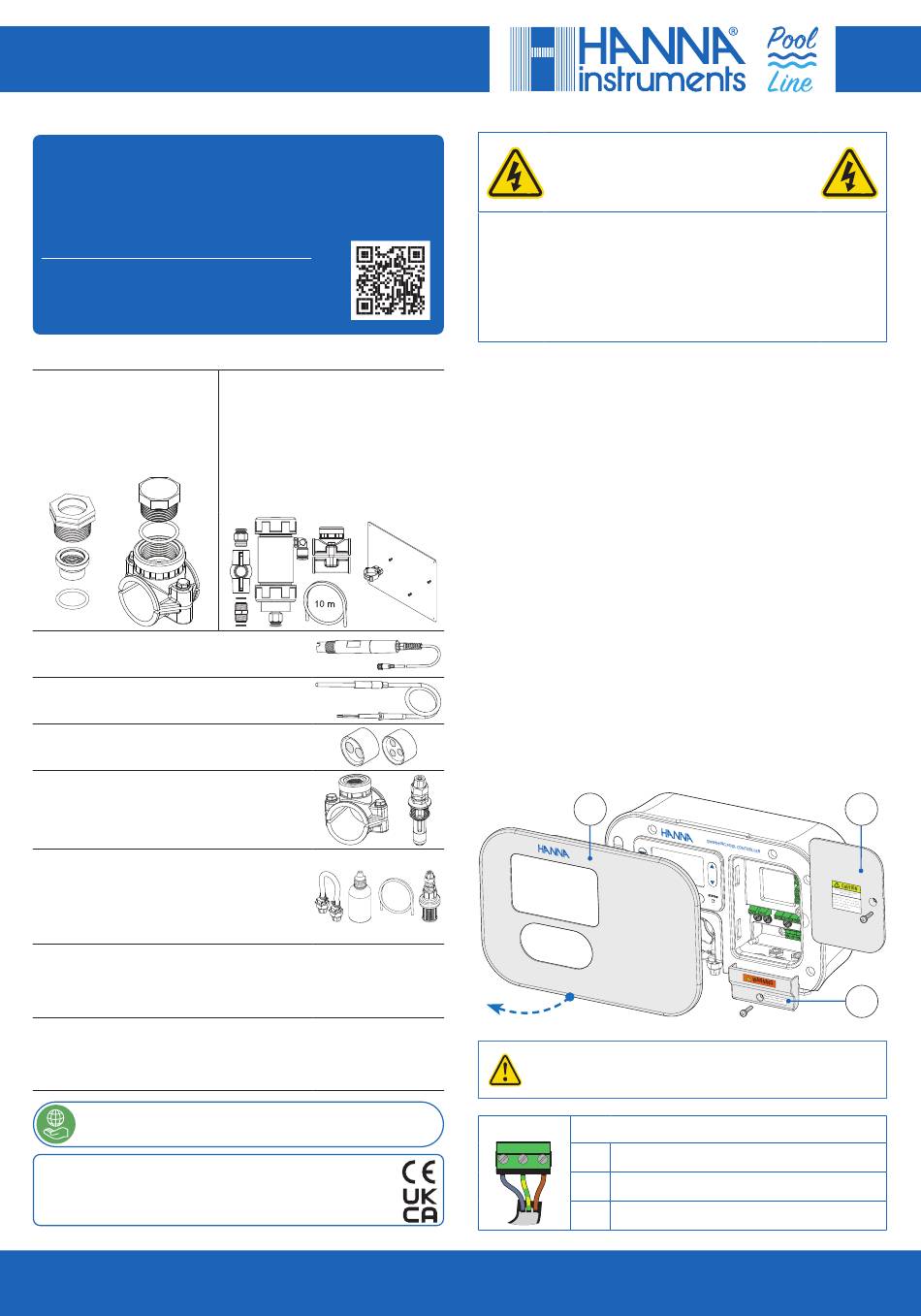

Hanna Instruments BL132 Quick Reference Manual

QUICK REFERENCE GUIDE

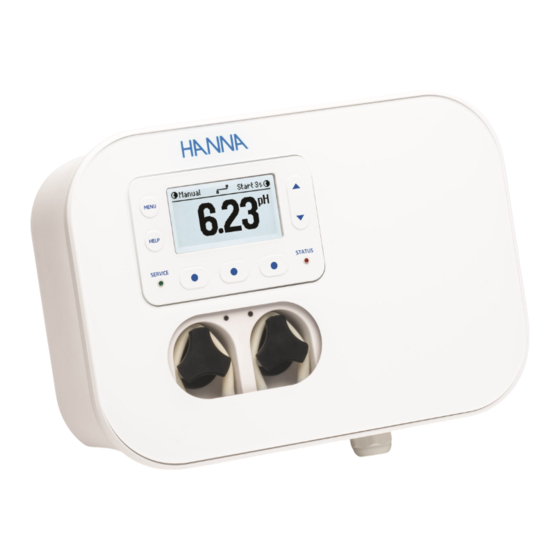

BL132 Swimming Pool Controller with Cloud Connectivity
Dear Customer, thank you for choosing Hanna Instruments.
For more information about Hanna Instruments and our products,
visit www.hannainst.com or e-mail us at sales@hannainst.com.
For technical support, contact your local Hanna Instruments office
or e-mail us at tech@hannainst.com.
Please scan the QR code or use the link below
to download the user manual.
https://manuals.hannainst.com/BL132
Package Contents
BL132-10 (in-line installation)
• Electrode fittings
• Electrode saddle,
Ø 50 mm pipe
• HI1036-1802 Combined electrode
• BL130-900 Air temperature probe
• Gland gaskets
• Injector saddle for Ø 50 mm pipe (2 pcs.)
• Injector (2 pcs.)
• Peristaltic pump tubing (2 pcs.)
• Silicone oil (dropper bottle)
• PVC aspiration and injection tubing, 10 m
• Aspiration filter (2 pcs.)
• 4.01 pH buffer solution, 3 sachets
• 7.01 pH buffer solution, 3 sachets
• 470 mV ORP test solution, 3 sachets
• Power cable
• Quick reference guide
• Quality certificates (probe, instrument, accessories)
Hanna Instruments is committed to developing and deploying digital solutions
with a positive impact on the environment and climate.
All Hanna instruments conform to the CE European Directives and UK standards, and
our production facilities are ISO 9001 certified. BL132 is warranted for a period
of two years (probes six months) against defects in workmanship and materials
when used for their intended purpose and maintained according to instructions.
Please retain for future use.
BL132-20 (flow cell installation)
• Panel mounted flow cell
• Flow cell panel
• Valve for flow cell with fittings
(2 pcs.) with 10 m tubing
• Valve saddle, Ø 50 mm pipe (2 pcs.)
2X 2X
2x
2x
QRBL132 05/24
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions.
• Electrical connection must be carried out by specialized personnel.
• Do not make electrical connections with device connected to power.
• Do not run other cables through the selected power cable gland.
• Have a disconnect switch installed in the vicinity of the instrument
to ensure electrical circuit is de-energized for installation.
Connecting to Power
• Remove the magnetic faceplate (A).
• Loosen and remove the cover screw (B) first. Then remove the
cover-up panel that accesses the three-terminal power supply board.
The raised, low-voltage terminal is now accessible.
• Loosen and remove the small, safety cover-up screw (C). Then remove
the safety-cover panel that protects the high-voltage terminal board.
High-voltage paths are now accessible.
• Remove the blank plug and thread the cable through the designated
power cable gland. Select gland (9) closest to the power connector (10).
• Connect the power cable leads to the removable terminal connector
marked POWER INPUT.
• Follow L (live), PE (protective earth), N (neutral) lead markings for
correct wiring of output leads.
• Carefully put wired terminal connector into place on the board (10).
• Replace the small safety cover-up panel.
2x
2x
ELECTRICAL CONNECTORS COMPARTMENT
Disconnect power supply prior to cover removal.
Refer servicing to qualified service personnel.
N PE L
www.hannainst.com
Save these instructions.
A
POWER INPUT
N Neutral
PE Protective Earth (Protective Ground)
L Line (live)
B
C
