RITFIT BUFFALO Owner's Manual & Assembly Instructions

Multifunctional power cage
Hide thumbs

Advertisement

Table of Contents

MULTIFUNCTIONAL POWER CAGE
BUFFALO
OWNER'S MANUAL & ASSEMBLY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BUFFALO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RITFIT BUFFALO

Summary of Contents for RITFIT BUFFALO

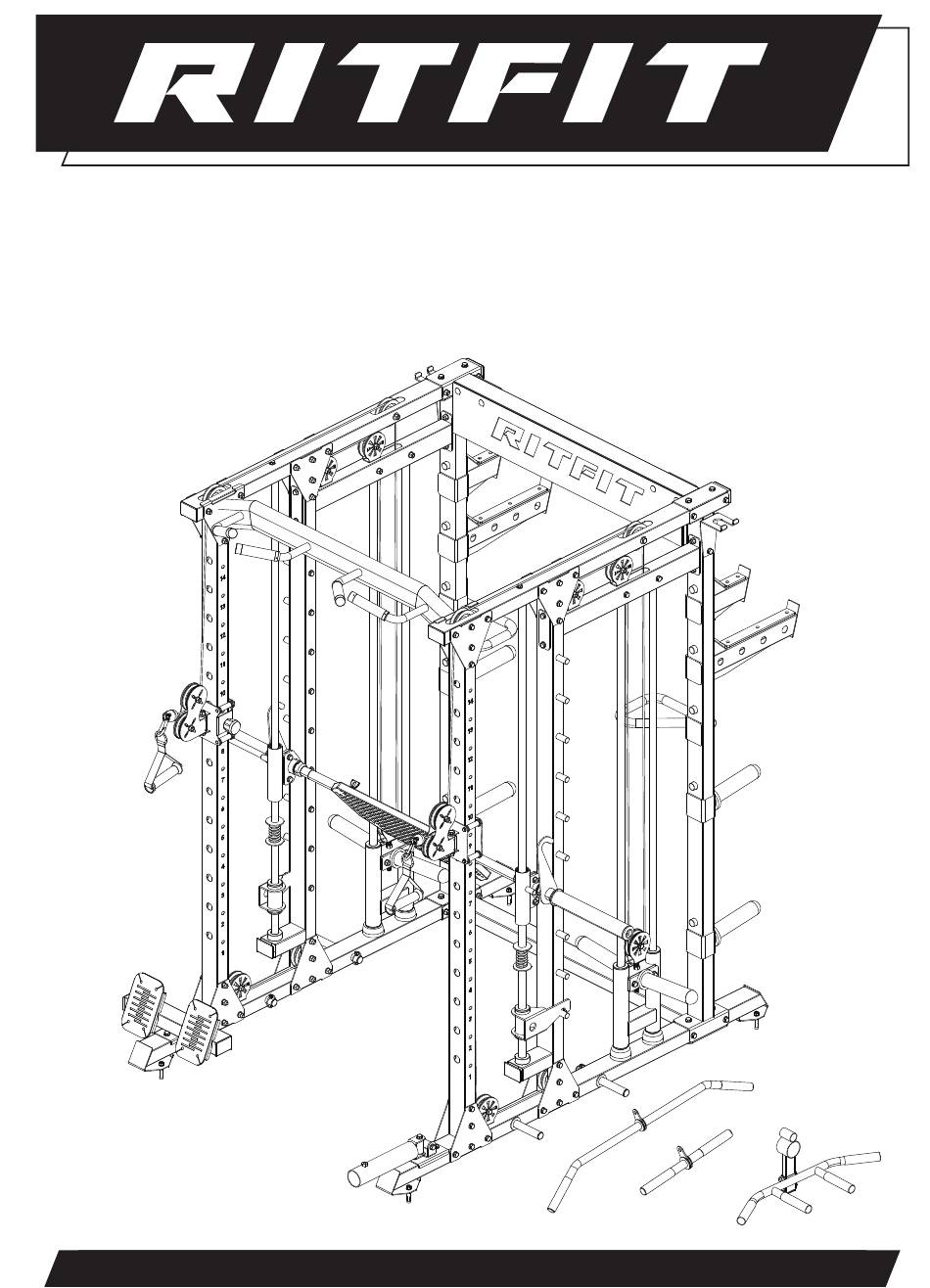

  • Page 1 MULTIFUNCTIONAL POWER CAGE BUFFALO OWNER’S MANUAL & ASSEMBLY INSTRUCTIONS...

  • Page 2: Safety And Precautions

    4. One person at a time should use this equipment incomplete form. Please contact RITFIT for a unless otherwise designed for safety (example: ·...

  • Page 3: Warranty

    These warranty repairs or adjustments will be made by RitFit at no charge, using new or remanufactured parts. D. When It Begins? The Basic Warranty begins from the date of order.

  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the versatile RitFit® Power Cage. RitFit® Power Cage is designed and manufactured to optimize users’ workout performance and minimize adjustment or set-up time for users. For your benefit, read this manual carefully before using the Power Cage.

  • Page 5: Parts List

    PARTS LIST ·FASTENER AND TOOLS QUANTITY DESCRIPTION M10x95 Square Neck Bolt M10x100 Hex Bolt M10x95 Hex Bolt M10x85 Hex Bolt M10x75 Hex Bolt M10x65 Hex Bolt M10x60 Hex Bolt M10x30 Hex Bolt M10x25 Hex Bolt M10 Expension Bolt M10 Washer M10 Nut Lubricating Oil Open-ended Wrench 14-17...
  • Page 6 PARTS LIST i M10x25 Hex Bolt j M10 Expension Bolt k M10 Washer l M10 Nut 174x Lubricating Oil Ring Bolt Carabiner Open-ended Wrench 14-17 ·ACCESSORIES QUANTITY DESCRIPTION J-Hook Set Safety Arm Set Dip Bar Set Plates Storage Tube Set Lat Bar Foot Board T-Bar Handle...
  • Page 7 PARTS LIST Quick Release Band Peg Low Row Bar T-Bar Handle Landmine Foot Plate For Leg Press T-Bar Frame ·MAIN FRAME QUANTITY DESCRIPTION Upright Frame (Back) Upright Frame (Front) Bottom Base Frame Pull-up Bar Bottom Cross Frame (Back) Upper Cross Frame (Back) Upright Frame (Back) Upright Frame (Front) Bottom Base Frame...
  • Page 8 PARTS LIST ·MAIN FRAME QUANTITY DESCRIPTION Long Side Frame Short Side Frame RitFit Nameplate Knob Slider Pulley Slider Frame Bolt Plate Barbell Hook Triangle Reinforcement Rubber Pad Long Side Frame Short Side Frame RitFit Nameplate Knob Slider Pulley Slider Frame...
  • Page 9 PARTS LIST ·SMITH & PULLEY SYSTEM QUANTITY DESCRIPTION Smith Upright (Left) Smith Upright (Right) Smith Guide Rod Smith Barbell Smith Guide Sleeve (Left) Smith Guide Sleeve (Right) Smith Guard Support Bar (Left) Smith Guard Support Bar (Right) Spring Smith Upright (Left) Smith Upright (Right) Smith Guide Rod Smith Barbell...
  • Page 10 PARTS LIST ·SMITH & PULLEY SYSTEM QUANTITY DESCRIPTION Cable Guide Rod Plate Carriage-1 Plate Carriage-2 Cable Cable Handle Pulley Shaft Sleeve Spring Washer Cable Guide Rod Plate Carriage-1 Plate Carriage-2 Cable Cable Handle Pulley Shaft Sleeve Spring Washer...
  • Page 11 PARTS LIST STEP 1 (Two People Are Required.) QUANTITY DESCRIPTION Upright Frame (Back) Bottom Base Frame Bottom Cross Frame (Back) M10x100 Hex Bolt M10x75 Hex Bolt M10 Washer M10 Nut...

  • Page 12: Assembly And Adjustment

    ASSEMBLY AND ADJUSTMENT STEP 2 (Two People Are Required.) QUANTITY DESCRIPTION Upright Frame (Front) Knob Slider Pulley Slider Frame Triangle Reinforcement M10x100 Hex Bolt M10 Washer M10 Nut...
  • Page 13 ASSEMBLY AND ADJUSTMENT STEP 3 (Two People Are Required.) QUANTITY DESCRIPTION Triangle Reinforcement Smith Upright (Left) Smith Upright (Right) Pulley M10x100 Hex Bolt M10 Washer M10 Nut Step 3b Step 3a...
  • Page 14 ASSEMBLY AND ADJUSTMENT STEP 4 (Two People Are Required.) QUANTITY DESCRIPTION Rubber Pad Cable Guide Rod Plate Carriage-1...
  • Page 15 ASSEMBLY AND ADJUSTMENT STEP 5 (Two People Are Required.) QUANTITY DESCRIPTION Short Side Frame Bolt Plate M10x75 Hex Bolt M10 Washer M10 Nut...
  • Page 16 ASSEMBLY AND ADJUSTMENT STEP 6 (Two People Are Required.) QUANTITY DESCRIPTION M10x65 Hex Bolt M10 Washer M10 Nut...
  • Page 17 ASSEMBLY AND ADJUSTMENT STEP 7 (Two People Are Required.) QUANTITY DESCRIPTION Long Side Frame Triangle Reinforcement M10x100 Hex Bolt M10 Washer M10 Nut...
  • Page 18 ASSEMBLY AND ADJUSTMENT STEP 8 (Two People Are Required.) QUANTITY DESCRIPTION Upper Cross Frame (Back) M10x100 Hex Bolt M10x75 Hex Bolt M10 Washer M10 Nut...
  • Page 19 ASSEMBLY AND ADJUSTMENT STEP 9 (Two People Are Required.) QUANTITY DESCRIPTION Pull-up Bar Triangle Reinforcement Pulley Shaft Sleeve M10x100 Hex Bolt M10x95 Hex Bolt M10 Washer M10 Nut...
  • Page 20 ASSEMBLY AND ADJUSTMENT STEP 10 (Two People Are Required.) QUANTITY DESCRIPTION Rubber Pad Smith Guide Rod Smith Guide Sleeve (Left) Smith Guide Sleeve (Right) Smith Guard Support Bar (Left) Smith Guard Support Bar (Right) Spring Spring Washer M10x65 Hex Bolt M10 Washer...
  • Page 21 ASSEMBLY AND ADJUSTMENT STEP 11 (Two People Are Required.) QUANTITY DESCRIPTION Smith Barbell...
  • Page 22 ASSEMBLY AND ADJUSTMENT STEP 12 (Two People Are Required.) QUANTITY DESCRIPTION M10x30 Hex Bolt M10 Washer M10 Nut...
  • Page 23 ASSEMBLY AND ADJUSTMENT STEP 13 (Two People Are Required.) QUANTITY DESCRIPTION Plate Carriage-2 M10x85 Hex Bolt M10 Washer M10 Nut Note: The Plate Carriage-2 is designed slightly up to prevent the weight plates from falling, which needs to be assembled upward.
  • Page 24 ASSEMBLY AND ADJUSTMENT STEP 14 (Two People Are Required.) QUANTITY DESCRIPTION RitFit Nameplate Bolt Plate M10x95 Square Neck Bolt M10 Washer M10 Nut...
  • Page 25 ASSEMBLY AND ADJUSTMENT STEP 15 (Two People Are Required.) QUANTITY DESCRIPTION Bolt Plate Barbell Hook M10x100 Hex Bolt M10 Washer M10 Nut...
  • Page 26 ASSEMBLY AND ADJUSTMENT STEP 16 (Two People Are Required.) QUANTITY DESCRIPTION Cable M10x25 Hex Bolt M10 Washer M10 Nut Carabiner Note: Three adjustments for cables.
  • Page 27 ASSEMBLY AND ADJUSTMENT STEP 17 (Two People Are Required.) QUANTITY DESCRIPTION Foot Board Landmine M10x25 Hex Bolt M10 Washer...
  • Page 28 ASSEMBLY AND ADJUSTMENT STEP 18 (Two People Are Required.) QUANTITY DESCRIPTION Plates Storage Tube Set 90° 90° 90° 90°...
  • Page 29 ASSEMBLY AND ADJUSTMENT STEP 19 (Two People Are Required.) QUANTITY DESCRIPTION J-Hook Set Safety Arm Set Dip Bar Set 90° 90° 90° 90° 90° 90°...
  • Page 30 ASSEMBLY AND ADJUSTMENT STEP 20 (Two People Are Required.) QUANTITY DESCRIPTION Quick Release Band Peg Ring Bolt...
  • Page 31 ASSEMBLY AND ADJUSTMENT STEP 21 (Two People Are Required.) QUANTITY DESCRIPTION T-Bar Handle T-Bar Frame M10x60 Hex Bolt M10 Washer M10 Nut...
  • Page 32 ASSEMBLY AND ADJUSTMENT STEP 22 (Two People Are Required.) QUANTITY DESCRIPTION Cable Handle Lat Bar Low Row Bar...
  • Page 33 ASSEMBLY AND ADJUSTMENT STEP 23 (Two People Are Required.) QUANTITY DESCRIPTION Foot Plate For Leg Press Note: Please make sure that the Foot Plate For Leg Press is correctly and securely assembled on the Smith Barbell, and the Smith Guard Support Bar needs to be correctly used below the Smith Barbell.
  • Page 34 ASSEMBLY AND ADJUSTMENT STEP 24 (Two People Are Required.) QUANTITY DESCRIPTION M10 Expension Bolt...
  • Page 35 Congratulations! You have assembled the Power Cage! Now, you can officially start strength training! 81 in...
