DIN Rail Mounting
The following instructions apply to the NP120907, NP120909, NP141107, NP141109,
NP171407 and NP171409 series enclosures.
These NP series enclosures feature raised mounting bosses for attaching the
35mm DIN rails. In the 7" deep enclosures these bosses are provided in the base.
In the 9" deep enclosures they are provided in both the base and lid.
To install the DIN rails, use the self-tapping screws provided in the DIN rail kit.

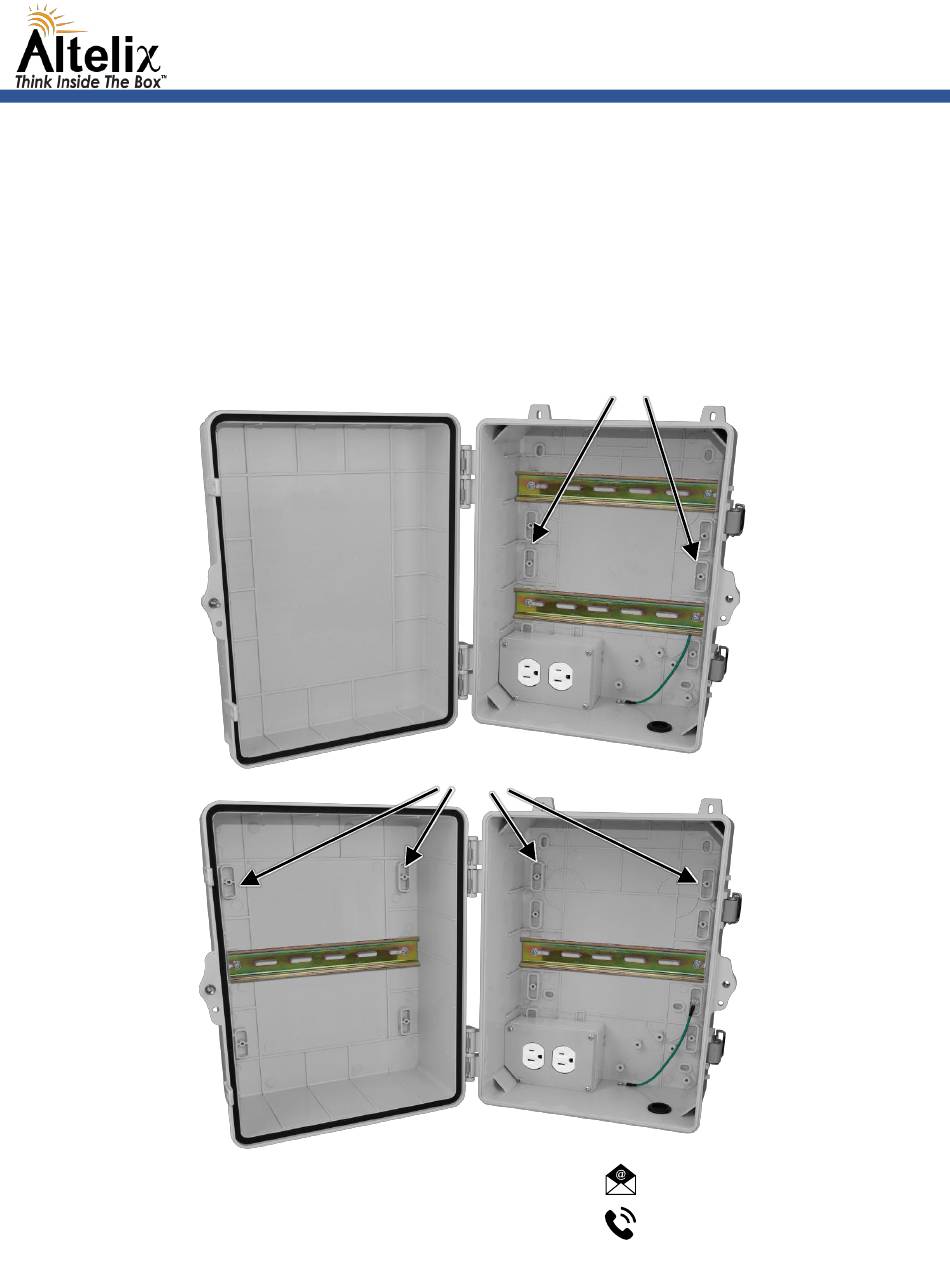

7" Deep
Enclosure
9" Deep
Enclosure
IS0234 Rev A 01/22/25
NP DIN Rail Enclosure Installation Guide
DIN Rail Mounting Bosses
