NP12FA1-RKU1
Installation Guide
Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0204 Rev A 06/29/23
Roku® is a trademark or registered trademark of Roku, Inc.
Advertisement
Related Manuals for Altelix NP12FA1-RKU1
Summary of Contents for Altelix NP12FA1-RKU1
- Page 1 Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC. Specifications are subject to change without notice. See www.altelix.com for most current information IS0204 Rev A 06/29/23 Roku®...

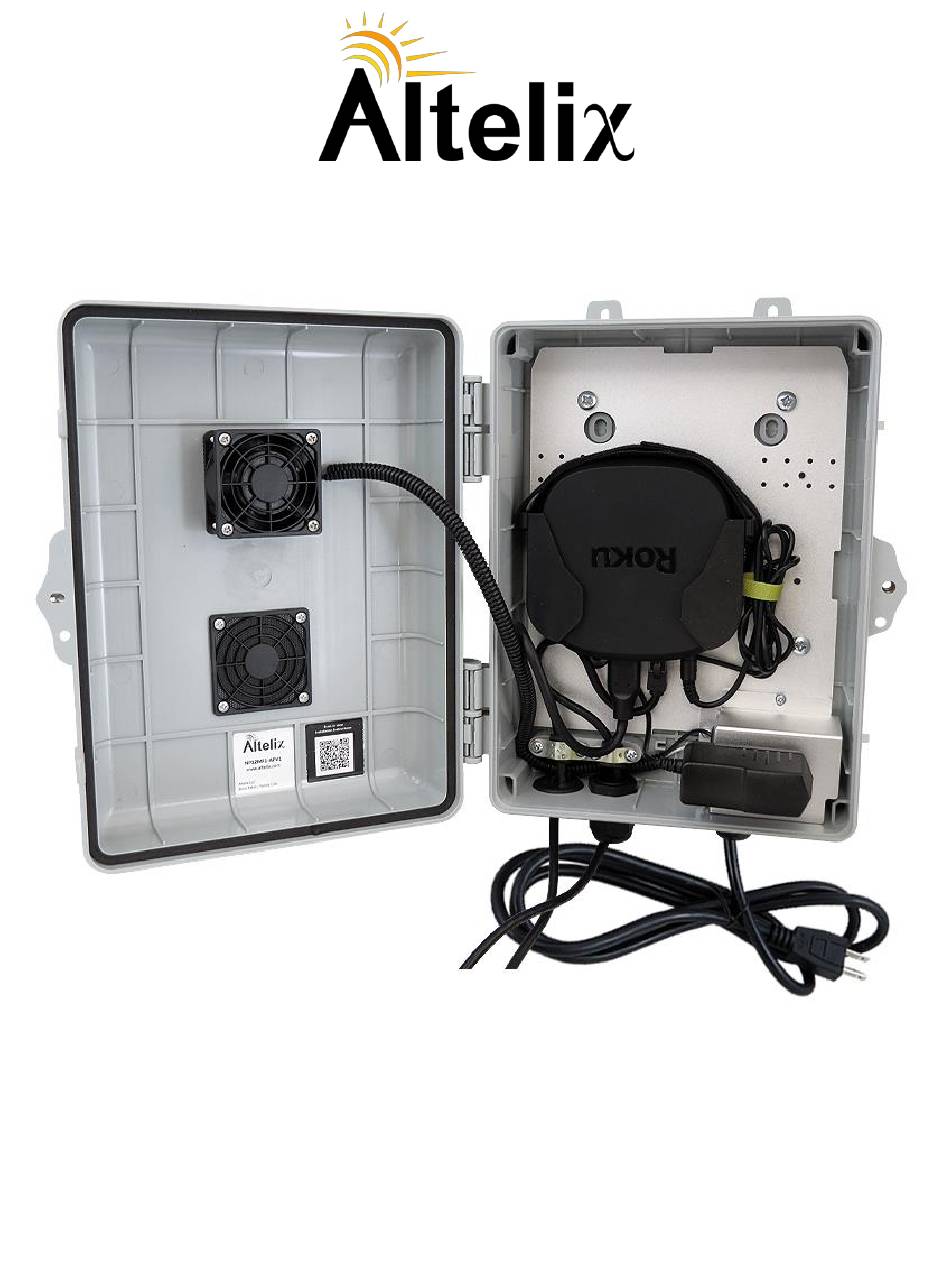

- Page 2 NP12FA1-RKU1 Installation Guide Page-1 Installing the Roku Ultra Player The NP12FA1-RKU1 features a cradle type mount specifically designed to secure the Roku Ultra and Ultra LT players inside the enclosure. 1. Slide the Roku Ultra into the mounting cradle as shown.
- Page 3 NP12FA1-RKU1 Installation Guide Page-2 Connecting the Roku Ultra Player A cable grommet and cable gland are provided on the enclosure to allow HDMI and Ethernet cables (not included) to be connected to the Roku Ultra player. Not Use Cable Gland...
- Page 4 NP12FA1-RKU1 Installation Guide Page-3 5. Once the HDMI and Ethernet cables are connected to the Roku Ultra player, secure both cables using the cable clamp provided on the enclosure. To prevent damaging cables, do not over-tighten clamp. Cable Management Strap Cable Clamp 6.
- Page 5 NP12FA1-RKU1 Installation Guide Page-4 Wall Mounting the NP12FA1-RKU1 To wall mount the NP12FA1-RKU1 enclosure, (3) external mounting tabs are provided on the rear of the enclosure. For better security, it can also be mounted using the (4) internal mounting feet.
- Page 6 NP12F1-RKU1 Installation Guide Page-5 Using Internal Mounting Feet 1. Using a ¼” drill bit, drill (4) holes through the center of the mounting feet in the locations shown. Inside of Enclosure (Equipment plate not shown for clarity) Mounting Feet Drill Locations Mounting the Enclosure 2.
-
Page 7: Mounting Hole Locations
NP12FA1-RKU1 Installation Guide Page-6 Mounting Hole Locations IS0204 Rev A 06/29/23... - Page 8 Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC. Specifications are subject to change without notice. See www.altelix.com for most current information...
