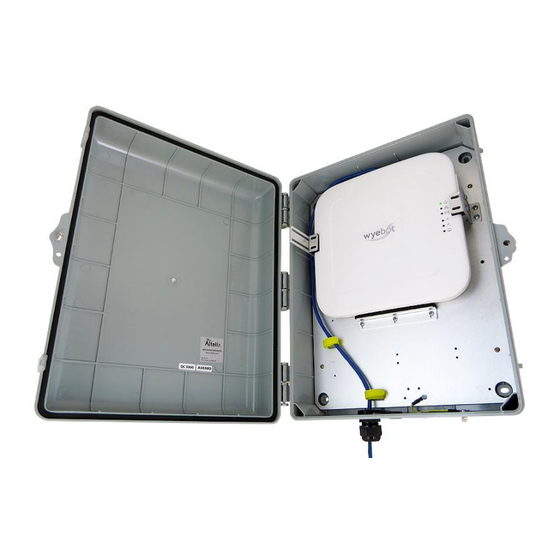

NP17AV-YBT2
Installation Guide
Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0195 Rev A 06/01/23
Wyebot® is a trademark or registered trademark of Wyebot, Inc.
Advertisement
Table of Contents
Related Manuals for Altelix NP17AV-YBT2
Summary of Contents for Altelix NP17AV-YBT2

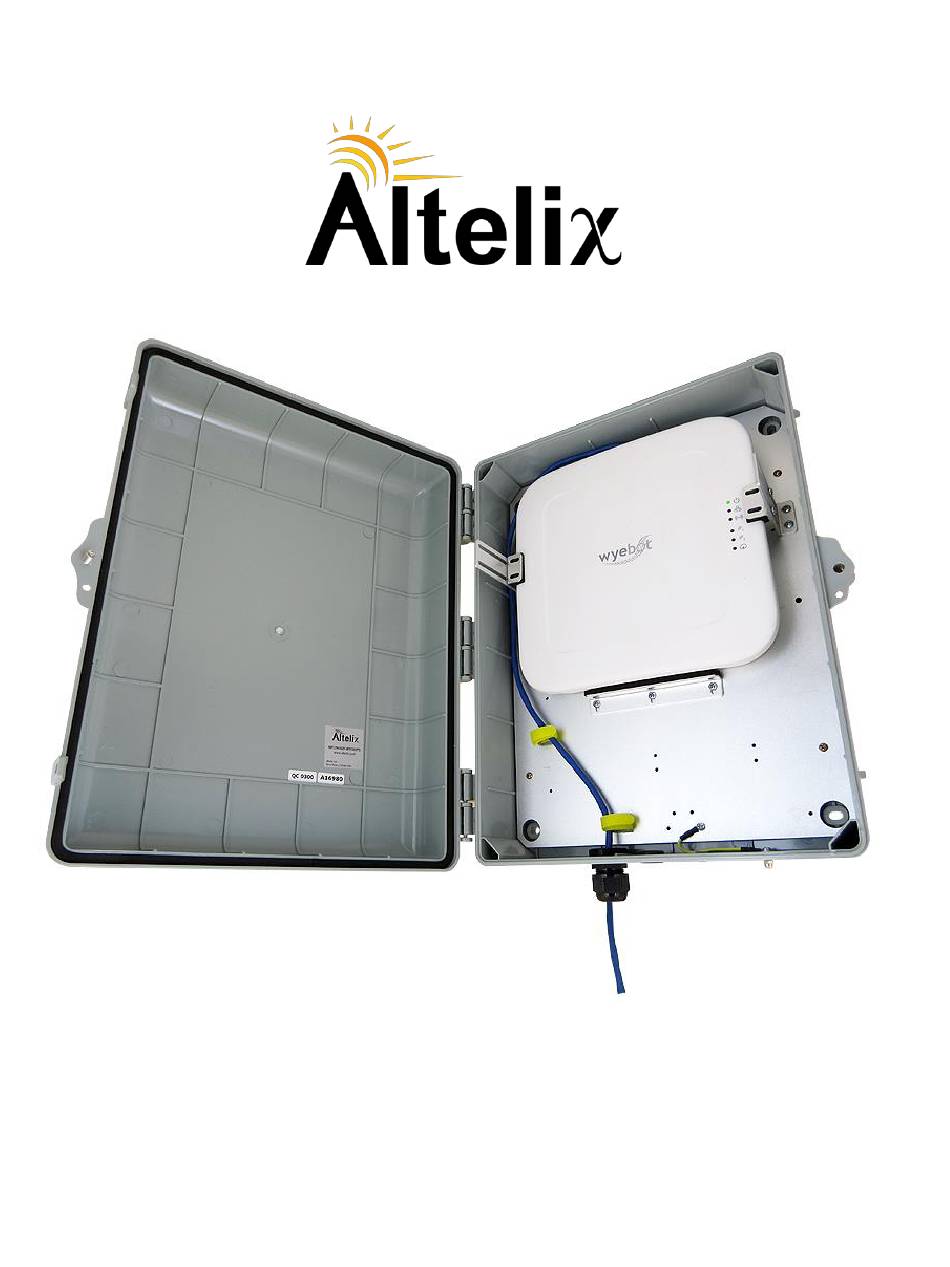

- Page 1 Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC. Specifications are subject to change without notice. See www.altelix.com for most current information IS0195 Rev A 06/01/23 Wyebot®...
- Page 2 NP17AV-YBT2 Installation Guide Page-1 Installing the WIS4200 in the NP17AV-YBT2 The WIS4200 mounting bracket kit included with the NP17AV-YBT2 contains (3) brackets for securing the device into the enclosure. The (7) screws included in the kit are used to attached the brackets to the aluminum back plate.
- Page 3 NP17AV-YBT2 Installation Guide Page-2 2. Install the two mounting brackets to the back plate as shown using the (4) #6-32 screws supplied in the kit. Note the location of the brackets on the back plate. Adjustable Mounting Brackets Back Plate 3.
- Page 4 NP17AV-YBT2 Installation Guide Page-3 4. Attach Ethernet cable to the WIS4200 and slide unit under the two adjustable mounting brackets as shown. Adjustable Mounting Brackets 5. Installed the bottom bracket onto the back plate as shown using (3) #6-32 screws included in the kit.
- Page 5 NP17AV-YBT2 Installation Guide Page-4 6. Once the WIS4200 is secured inside the enclosure, use the included cable management straps to secure any loose cables. Cable Management Straps sales@altelix.com Got Questions? We are here to help. USA & Canada: 866-660-9434 Contact us at:...
- Page 6 NP17AV-YBT2 Installation Guide Page-5 Mounting the NP17AV-YBT2 Enclosure The NP17AV-YBT2 enclosure can be either wall mounted using the supplied hardware or pole mounted using the optional pole mounting kits available from www.ALTELIX.com. To wall mount the NP17AV-YBT2 enclosure, two of rear mounting feet need to be drilled.
- Page 7 Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC. Specifications are subject to change without notice. See www.altelix.com for most current information...
