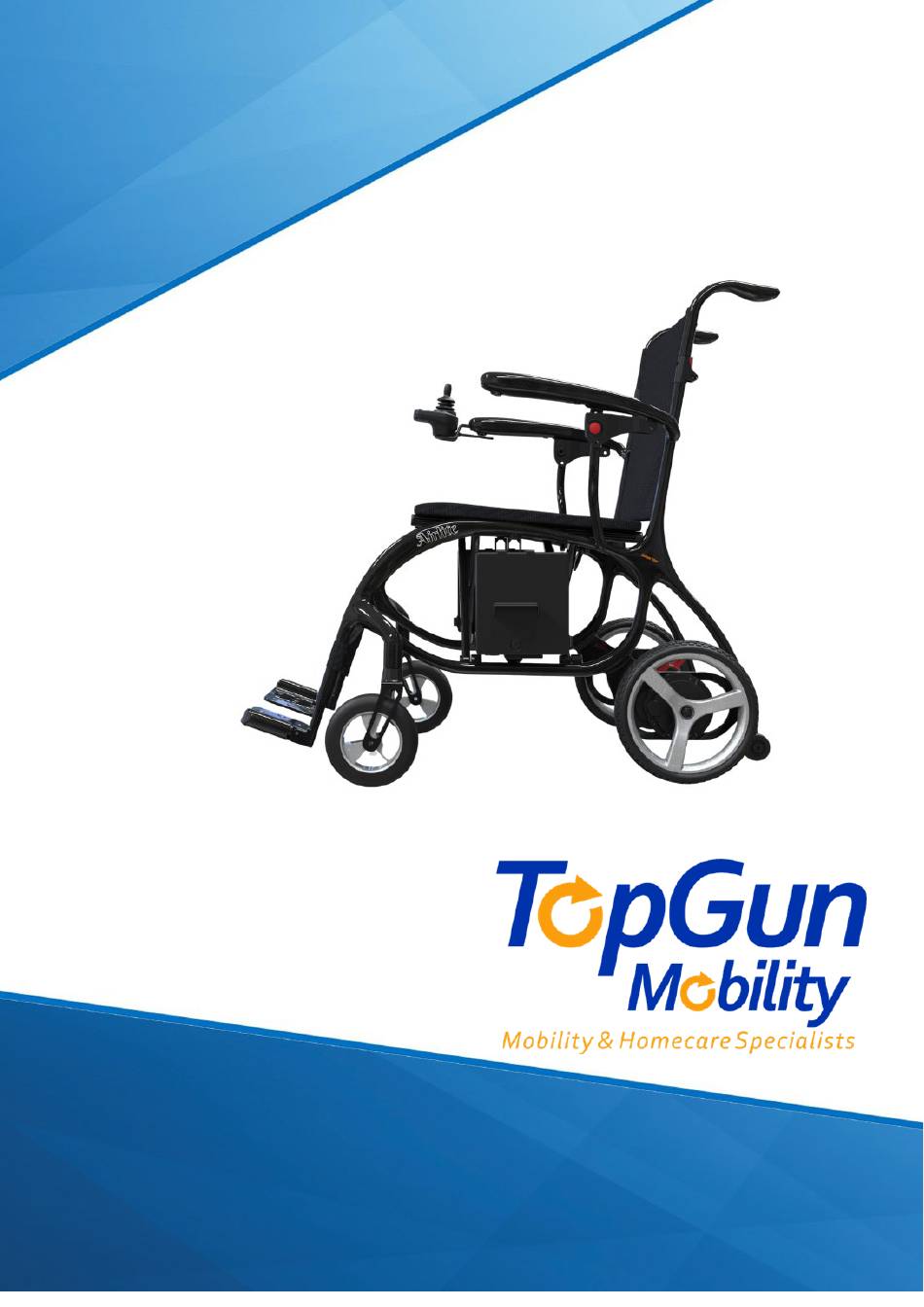

AIRLITE
POWERCHAIR
xsdfva
USER MANUAL
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRLITE and is the answer not in the manual?

Questions and answers

Summary of Contents for TopGun Mobility AIRLITE

  • Page 1 AIRLITE POWERCHAIR xsdfva USER MANUAL P a g e...
  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ............................1 SAFETY NOTICE ............................2 UNPACKING INSPECTION ........................2 EXPLANATION OF SYMBOLS ........................ 2 SAFETY INSTRUCTIONS ........................2 GENERAL SAFETY ..........................2 ELECTROMAGNETIC COMPATIBILITY (EMC) ..................3 FEATURES AND SPECIFICATIONS ......................5 PRODUCT FEATURES ........................... 5 CIRCUIT DIAGRAM ..........................2 SPECIFICATIONS ...........................
  • Page 3: Introduction

    Top Gun Mobility and its affiliates cannot be held responsible for personal injuries or property damage caused by improper handling of the AirLite Powerchair. Your opinions are very important to us – if you have any comments on the functionality and safety of this powerchair, or the contents of this manual, please feel free to contact with your local retailer, distributor or Top Gun Mobility.
  • Page 4: Safety Notice

    SAFETY NOTICE UNPACKING INSPECTION There are clearly packed accessories in the package, make sure that you understand these parts and they are present. If any part is unclear, contact your nearest Top Gun Mobility retailer. Package Includes: • 1 x Powerchair 1 x Charger •...
  • Page 5: Electromagnetic Compatibility (Emc)

    • Not following the instructions in this manual may result in damage to the powerchair or injuries to the user. This powerchair should not be used by anyone suffering from physical or mental limitations that render them • incapable of safely handling the powerchair in traffic. Never exceed the maximum safe working load.
  • Page 6 POSSIBLE SOURCES OF RADIATION INCLUDE: Portable receiver and transmitter installations (receiver and transmitter with fixed antenna mounted directly on the transmitting unit) • Transmitting and receiving sets. • Cell phones or "walkie talkie". • Portable TV, radio and navigation devices. •...
  • Page 7: Features And Specifications

    FEATURES AND SPECIFICATIONS PRODUCT FEATURES 1. This product is composed of the frame, wheels, seat cushion, armrest, lithium battery, motor and controller. 2. Lightweight and compact design. The whole vehicle can be folded, and it can be easily pulled after folding. 3.
  • Page 8: Circuit Diagram

    CIRCUIT DIAGRAM...
  • Page 9: Specifications

    SPECIFICATIONS SPECIFICATIONS AIRLITE POWERCHAIR Weight 12.5kg Safe Working Load (SWL) 125kg Frame Material Carbon Fibre + Magnesium Alloy Operational Range Up to 12km Motor Power 24V 150W Battery 24V/10Ah Lithium Battery Charger 29.4V 2A MIC, AC PLUG Turning Radius 90cm Tyre Size Front 7”...
  • Page 10: Assembly And Disassembly

    ASSEMBLY AND DISASSEMBLY CONTROLLER INSTALLATION REMOVAL Insert the upper bracket of the controller into the fixed tube of the armrest as shown in the diagram, and then tighten it with the knob. Operate oppositely if operated with the left hand. BRAKE Pull the handle to the open position to put the powerchair in the brake-release position and you can push the powerchair manually.
  • Page 11: Assembly Of Battery Box

    ASSEMBLY OF BATTERY BOX Attach the battery boxes on both sides of the powerchair. Four slots and a cylinder behind the battery box are requested to align with the holes and fulcrums on the battery bracket and then clamp downwards until a "click" sound is heard and the battery boxes are properly attached.
  • Page 12: Battery Toggle Switch

    BATTERY TOGGLE SWITCH A toggle switch is equipped onto the right battery bracket. Toggle the left and right battery with toggle switch. Position “|”and” O (see Figure on the right) means the left or right battery is respectively activated Note: Left and Right are determined by user’s forward direction.
  • Page 13: Anti-Tip Wheel

    ANTI-TIP WHEEL The powerchair is equipped with anti-tip wheels, which are used to prevent the powerchair from tipping over in an emergency. The anti- tip wheels of this powerchair cannot be removed. WARNING Do not drive the powerchair after the anti-tip wheels are removed or damaged.
  • Page 14: Footrest

    FOOTREST Footrest Height Adjustment Loosen the screws and nuts with an open-ended wrench and Allen wrench and change the hole to adjust the height (See figure on the right.) Note: The footrest has been adjusted to its optimal height before leaving the factory.
  • Page 15: Portability

    Hold on both sides of armrests and push inwards at the same time until the powerchair is folded. Holding the handlebar and pressing down the folding button, meanwhile, lifting the handlebar slightly until the spring pins detach from the hole on the handlebar sleeve, then fold it down.
  • Page 16: Operation

    OPERATION JOYSTICK CONTROLLER 1. Slow speed button 2. On/off button 3. Battery gauge 4. Speed indicator 5. Horn button 6. High speed button 7. Joystick controller SLOW SPEED BUTTON: Press to slow the speed. ON/OFF BUTTON: Press once to turn on the powerchair and press once to turn off the powerchair. BATTERY GAUGE: Indicates the battery voltage.
  • Page 17: Driving On Inclines

    DRIVING ON INCLINES • When driving your powerchair, never descend or climb a gradient which is greater than recommended. • Always drive straight up or straight down an incline, ramp, slope etc. • Never drive across (traverse) an incline, ramp etc., in any direction-Driving across an incline, ramps or other similar obstacles could result in turning the powerchair over resulting in serious injury or death.
  • Page 18: Charging Batteries

    CHARGING BATTERIES • Make sure you read and understand the battery charger’s user manual, if supplied, as well as the safety notes on the charger. • Turn off the powerchair’s power. • Decide on which charging socket to use -You have a choice of two charging sockets: 1.
  • Page 19: Battery And Charger

    BATTERY AND CHARGER WARNING: Turn on the switch on the battery box prior to charging. • Plug the charger into the outlet point. • Do not switch on the battery charger until all the plugs are in position. • The LED light on the battery charger will show amber while charging. •...
  • Page 20: Maintenance

    MAINTENANCE Protect your powerchair by having it checked regularly. We strongly advise you to have your powerchair checked at least once a year by a qualified retailer, who will only use the correct spare parts. This periodic inspection will ensure that the powerchair will function perfectly for years. There are a lot of things you can do yourself to keep your powerchair in optimal condition.
  • Page 21: Warranty

    The warranty covers the following Powerchair models: “Airlite Powerchair” 5 Year Warranty: From the date of purchase from an authorized Top Gun Mobility’ retailer, in the event of defective materials or workmanship, Top Gun Mobility will repair or replace at our option any of the following structural frame components found to be defective by an authorized Top Gun Mobility representative.
  • Page 22: Service Record

    Note: An increase in operating noise DOES NOT constitute a defect. With normal wear and tear, operating noise is expected to increase. Note: While charging batteries, it is normal for the battery charger to heat up. Heat coming from the battery charger does not constitute a defect.
  • Page 23 Technical Service, please scan the following QR code. Copyright Top Gun Mobility User Manual & Warranty Booklet 2023...
