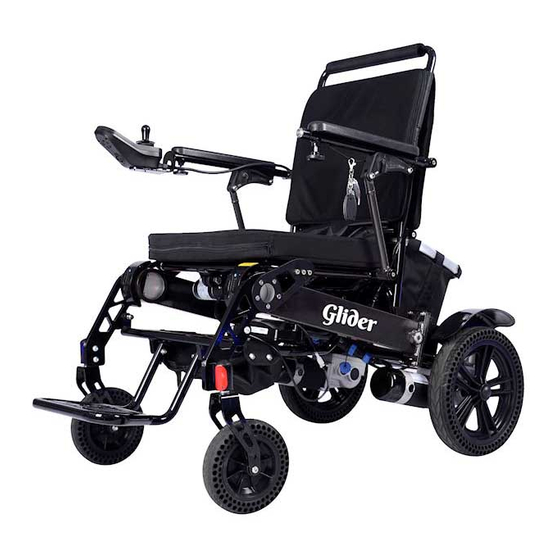

- Page 1 GLIDER POWERCHAIR xsdfva USER MANUAL...
-
Page 2: Table Of Contents
Driving the Fold Power Wheelchair Glider: ..................4 Safe Operation Continued …....................... 5 Getting out of the Fold Power Wheelchair Glider: ................5 Weight limited-Do not exceed or the warranty will be void: ............... 5 When transporting the Fold Power Wheelchair Glider:............... 5 PRECAUTIONS ............................ -
Page 3: Introduction
INTRODUCTION Thank you for purchasing our Glider series power chair. We take pride in manufacturing the highest quality of products, and we trust this power chair will provide you comfort and mobility throughout your daily activities. Before operating this power chair for the very first time, please read and follow all instructions in this manual carefully. -
Page 4: Specifications
SPECIFICATIONS Model GLIDER Unfold size 1230*650*1010mm Fold size 950*650*400mm Motor 24V/200W brush motor (can quick removal) Push rod motor 24V 1000N Controller Dynamic controller Seat width 480mm Seat height 530mm Seat depth 230mm Distance from seat to pedal 440mm Front tires 8”... -
Page 5: Specification Diagrams
Specification Diagrams P a g e... -
Page 6: Safe Operation
Practice bending, reaching and transferring in and out of the Glider Fold Power Wheelchair. d) Always be aware of your surroundings. e) If you are not sure the Glider Fold Power Wheelchair can surpass an obstacle, try to find another way around. -
Page 7: Safe Operation Continued
Never sit in the Glider Fold Power Wheelchair while in a moving vehicle; an accident or sudden stop may cause you to be thrown from the electric wheelchair. b) Never transport the Glider Fold Power Wheelchair in the front of seat of a vehicle where it may shift and interfere with the driver. -
Page 8: Maintenance
Glider Fold Power Wheelchair should the technician require parts, they should contact Top Gun Mobility to check availability. We recommend you inspect your Glider Fold Power Wheelchair two or three times per year, paying particular attention to the following areas:... -
Page 9: Initial Setup
Your Glider Fold Power Wheelchair will arrive with full charged batteries, which should last about 18km under normal operation conditions. We recommend that you run the Glider Fold Power Wheelchair Glider until the batteries are completely dead in order to get the most out of the battery life. -
Page 10: Secondary Charging Method
3. Allow your wheelchair to charge for 6-8 hours or when the light on the charger turns green, which means your batteries are full charged. 4. Should you require them, the lights and what they mean are located on the back of the charger. -
Page 11: Charging Batteries Continued
9. Do not charge more than 8 hours. 10. If you do not operate the Glider Fold Power Wheelchair for a few months, we recommend that you charge the battery for 6-8 hours before use. -
Page 12: Battery Installation & Removal
BATTERY INSTALLATION & REMOVAL Battery Installation When you receive the power chair, please fully charge the batteries before using the power chair for the first time. WARNING: Before installing the batteries, make sure your power chair is powered off. The battery for your power chair is shown on below. The battery level indicator on top and charging port on bottom indicate the battery is at an upright position ready for insertion into the power chair battery housing. -
Page 13: Battery Installation & Removal Continued
Battery Installation & Removal Continued Finished Installation Battery Removal WARNING: Before installing the batteries, make sure your power chair is powered off. Hold the battery handle; press the lock on the side of the battery handle: Unlock the Battery Slowly pull the battery out of the battery housing: Slowly Pull the Battery Continue pulling the battery out of the battery housing until the entire battery is outside: Pull out the Entire Battery... -
Page 14: Controller Installation
CONTROLLER INSTALLATION Joystick Controller Installation Your power chair joystick controller can be installed on the left or right side of the armrest. Insert the joystick controller into the front slot of the armrest as shown: Insert the Joystick Controller Tighten the locking knob on the bottom of the armrest by turning it clockwise as shown below; this will lock the joystick controller in position. -
Page 15: Free Wheel Mode
FREE WHEEL MODE Joystick Settings The joystick controls the directions of your power chair while operating, move the joystick in the direction that you are looking to go. Moving the joystick from its default position will allow the power chair to start moving Releasing the joystick to its default position will allow the power chair to stop moving The power chair will accelerate more and more as you move the joystick further away from its default position... -
Page 16: Remote Folding
REMOTE FOLDING Take off basket. Unlock the basket through switch, and then take it apart. Gently push the button at front end of armrest with red circle light up. Push the lower key on remote for fold. After completing, touch the red circle light off. Turn footrest backward. -
Page 17: Remote Unfolding
REMOTE UNFOLDING 1. Gently push the button at front end of armrest with red circle light up. 2. Push the upper key on remote for unfolds. After completing, touch the red circle light off. 3. Turn footrest forward. 4. Fit basket onto wheelchair. Lock it well through switch button. 5. -
Page 18: Rear Electric Set Quick Release
REAR ELECTRIC SET QUICK RELEASE 1. Turn the fastening screws for taking apart rear frame. 2. Take out fastening screws on both sides. 3. Disconnect wires connectors. 4. Hold frame with one hand and the rear frame by the other for taking part. 5. -
Page 19: Controller Operation
5. To stop, just bring the joystick back to the initial position. 6. Use extra care when you drive the Glider Fold Power Wheelchair in reverse. You may lose control or fall if one of rear wheels hits an object. When operating in reverse: a) Operate the wheelchair slowly and at an even speed. -
Page 20: Basic Operations
The following represents the most common questions asked about the Fold Power Wheelchair Glider with regard to everyday use; check this helpful guide or the opera tor’ s manual for more information if you have a question about using your power wheelchair. -
Page 21: Battery Gauge
BATTERY GAUGE A low battery warning is generated when the battery voltage falls below the Batt Gauge Low Voltage Warning set-point. This is indicated on the battery gauge with the red (left-most) LED flashing. Battery Gauge Minimum The followings will occurred when battery Voltage lower than minimum "Cut-Off Voltage": One red light flashing, horn sounds in every 10 seconds Battery Gauge Low... -
Page 22: Battery Gauge Status Indicator
BATTERY GAUGE STATUS INDICATOR If there is an error with the system when it is powered up, then the status indicator will flash red; the number of flashes will indicate the type of error. The table below describes the error indication, and a few possible actions that can be taken to rectify the problem. -
Page 23: Transporting Your Folding Power Wheelchair - Glider
TRANSPORTING YOUR FOLDING POWER WHEELCHAIR – Glider To transport your Glider Fold Power Wheelchair, it is advised that you fold it up following the procedures below. Note: Never transport the power wheelchair in a tie up system (electric mode), as the Glider Fold Power Wheelchair is not compatible with them. -
Page 24: Warranty
WARRANTY This is to certify that your TOP GUN MOBILITY product offers a limited 5 Year Warranty from the date of original purchase. Should a defect or operating fault arise within this period the Dealer, from where the product was originally purchased, should be notified immediately. -
Page 25: Retail Advice & Buyers Warranty Registration
Selling Dealer to complete at time of sale in order to Register Warranty with Top Gun Mobility Copy completed details and forward to : info@topgunmobility.com.au Customers Email Address: ______________________________________________________ Customer: __________________________ Model: GLIDER Power Wheelchair Address: Serial Number: _________________________ ___________________________________ ___________________________________ Colour: _______________________________... - Page 26 Warehouse Location Unit 57/109 Leitchs Road Brendale QLD 4500 T: (07) 3282 8211 www.topgunmobility.com.au...
