Summary of Contents for TopGun Mobility FlyteMax2

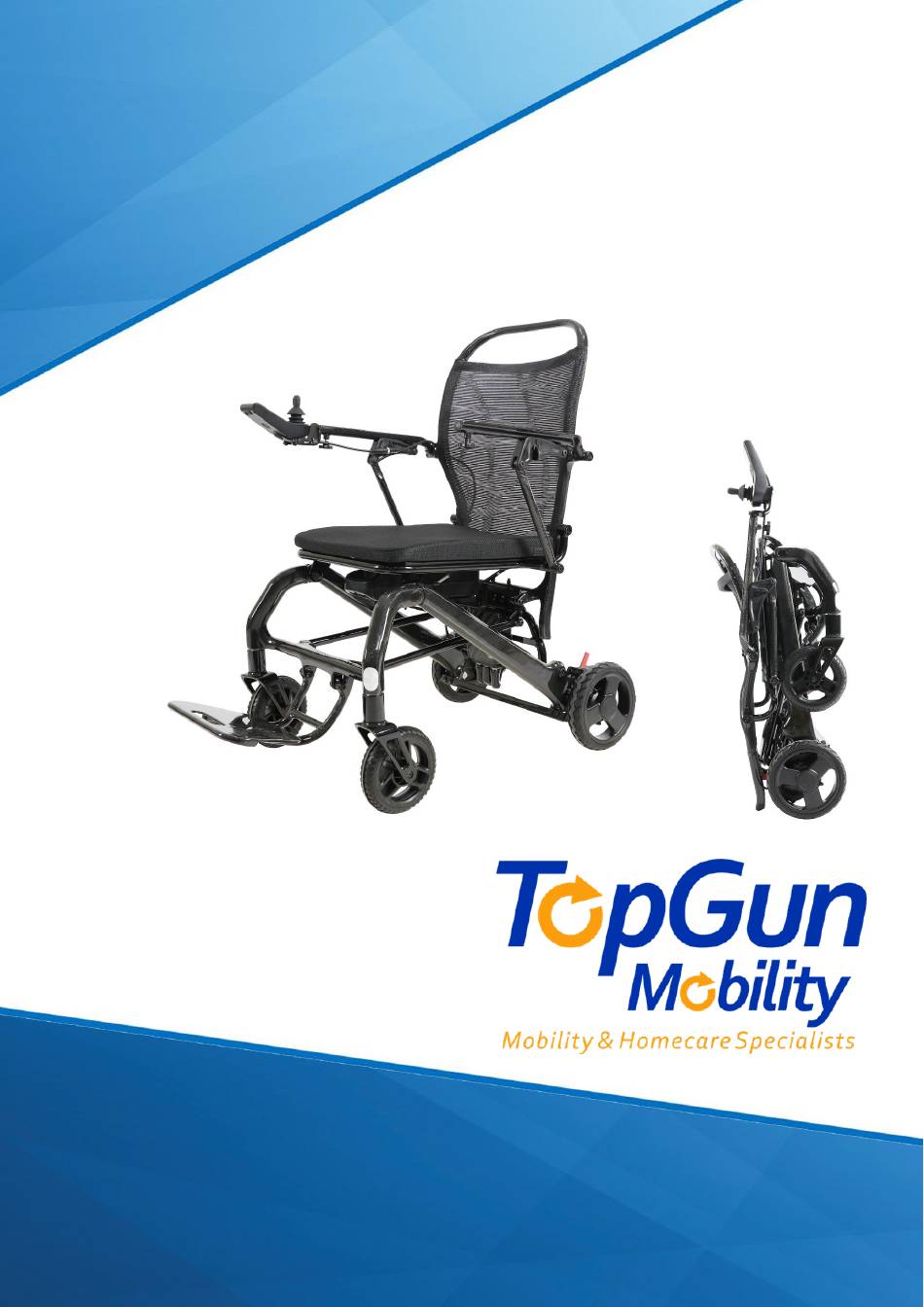

- Page 1 FlyteMax2 Powerchair xsdfva USER MANUAL...
- Page 2 CONTENTS INTRODUCTION ............................1 SYMBOLS ..............................2 SECURITY GUIDANCE ..........................3 PRODUCT FEATURES ..........................5 SPECIFICATIONS ............................6 SPECIFICATION DIAGRAM ........................7 SAFE USE GUIDELINE ..........................8 FOR USERS ............................8 FOR CAREGIVERS ..........................8 CONTROLLER ............................9 PRECAUTIONS ON THE CONTROLLER ....................9 PRECAUTIONS OF POWERCHAIR –...
- Page 3 CLEANING OF BATTERY SOCKET ......................25 FREEWHEEL MODE ..........................25 TRASNPORTING THE FLYTEMAX2 ......................26 DIRECTION FOR USE ........................... 26 WARRANTY ............................27 Not Covered Under Warranty ............Error! Bookmark not defined..............Error! Bookmark not defined. Transport/Call Out costs...
- Page 4 INTRODUCTION Thank you for choosing Top Gun Mobility for your portable powerchair transportation needs. Congratulations on your choice of Powerchair, which will provide you with years of dependable service with proper use and care. It is important to read through this User Manual before operating your Top Gun Mobility Powerchair to become familiar with its features as well as its limitations and safety information.
- Page 5 SYMBOLS Page 2 of 32...
- Page 6 The FlyteMax2 Powerchair has a base with carbon fiber frame, two front wheels, two rear wheels, a seat, two electric motors, an electromagnetic brake, 1 x rechargeable Lithium-Ion Battery with an off-board charger.
- Page 7 Please read this manual carefully and understand everything clearly before using the Electric Powerchair for the first time. Please do not use the Powerchair in any unclear cases, otherwise, the product may be damaged, or people may get hurt. Please pay attention to the warnings and cautions in this manual. We are not responsible for any injury and damage caused by wrong use of this product and neglect of warnings and cautions.
- Page 8 PRODUCT FEATURES Product Features 1. Based on Electric Shock Proof Classification: Classified as internal power type device during operation, it is type 2 device when it comes to charging. 2. Based on the classification of the electric shock proof: It belongs to B type applicable section. 3.
- Page 9 SPECIFICATIONS Weight 15.6kg (Without Battery) | 20.5kg (With Battery) Safe Working Load (SWL) 150kg Operational Range Up to 25km Motor Type Brushless Motor / 2PCS Motor Power 180W Battery Ternary Lithium Battery Battery Voltage Battery Charge Time Up To 6hrs Controller Brushless Controller Turning Radius...
- Page 10 SPECIFICATION DIAGRAM Page 7 of 32...
- Page 11 SAFE USE GUIDELINE FOR USERS Keep metal objects away from positive and negative terminals of the battery to avoid getting electrocuted or shocked by causing a short circuit. 1. Carefully read through the instructions or get guidance from a professional or nursing staff who are familiar with the product.
- Page 12 CONTROLLER PRECAUTIONS ON THE CONTROLLER Note: Adjust the installed position of the joystick controller to protect from any risk of bumping into something or falling. Inspect and adjust the installation of the joystick every six months, or as often as necessary. Contact your local retailer or distributer if the control panel of the joystick controller is abnormal or the joystick malfunctions.
- Page 13 OPERATIONAL ENVIRONMENT 1. This electric powerchair is not suitable for use in heavy rain, snow, or ice. Contact with water or excessive humidity will lead to electrical failure. WARNING! Avoid malfunction of the powerchair: • Do not place or keep the electric powerchair under direct impact of water (such as heavy rain) or in a very humid environment.
- Page 14 SAFETY TIPS 1. Do not drive the powerchair through traffic, such as buses, subways, trains, planes and ships. 2. If you must drive a powerchair, you should be accompanied by someone to help you find a reliable place to park, help you fasten your seat belt and turn off the power supply of the powerchair. 3.
- Page 15 PRECAUTIONS FOR GETTING ON/OFF THE POWERCHAIR Precautions for getting on/off electric Powerchairs When you are ready to sit in the powerchair, please make sure you turn off the power first to avoid accidentally bumping the joystick, resulting in the chair moving unexpectedly. Learn the safest way to get on and off from your health care professionals;...
- Page 16 PRECAUTIONS OF BEING ON THE POWERCHAIR BODY PART EXTENDING Body part extending, leaning and stretching will affect the balance of center gravity of the powerchair, which may cause you to fall or turn over with improper operation. Follow the key points below to reduce the risk of physical injury and damage: If changing your body center of gravity (including raising your body sideways or leaving the seat), please don't lean beyond the range of seat cushion of the powerchair.
- Page 17 When reversing, please always slow down. Check from time to time to ensure that there are no obstacles endangering your safety on the road. DRIVING ON INCLINED/SLOPES/HILLSIDES When on the slope, the balance center of gravity of the powerchair will change. Note if it is not sure about the safety of using this powerchair on a slope, please use it with some help, and be sure not to use it alone.
- Page 18 INSTALLATION SETUP Your FlyteMax2 Powerchair will arrive carefully packaged in a cardboard box. Open the top of the box then turn the box on the side for easier pulling out the chair and contents. To expand the FlyteMax2, grasp the push bar and pull up while holding down on the seat to expand the chair and complete the assembly.
- Page 19 Locate the seat cushion and the backrest cushion provided. Orientate the seat cushion such that the rear of the seat and the Velcro on the bottom of the seat cushion aligns with the Velcro on the seat. Install the controller into the open slot on the arm of the chair, on the right side (if needed, the user can change to the left side).
- Page 20 BATTERY SETUP INSTALL THE BATTERY Grasp the battery handle, align the bottom end of the battery with the notch of the battery protection box and insert it. (Make sure the battery is inserted all the way so that the battery box wrench snaps into the slot of the battery protection box) REMOVE THE BATTERY Press the wrench under the battery with your finger, and at the same time grab the handle of the battery box and...
- Page 21 FOLDING AND UNFOLDING Make sure all the attached parts are fastened properly after any adjustment, repair or maintenance, to avoid any damage or injury. While it is necessary to lift to move the powerchair, it is strongly recommended users get off the powerchair first. If the user must stay in the powerchair for lifting and moving at the same time, make sure all safety measures are followed.
- Page 22 CONTROLLER CONTROLLER AND DRIVING TIPS Page 19 of 32...
- Page 23 WARNING! 1. Never do a sharp turn while at high speed. 2. Unable to follow the " Warning" signs may cause tilting of the powerchair because of injury or product damage. 3. The location of joystick is at lower part of the control panel for controlling the speed and direction smoothly.
- Page 24 SCREEN DISPLAY Page 21 of 32...
- Page 25 Page 22 of 32...
- Page 26 Your FlyetMax2 powerchair will arrive with a fully charged battery, which should last about 20km under normal operation conditions. We recommend that you run the FlyteMax2 Powerchair until the battery is completely flat to get the most out of the battery life.
- Page 27 SECOND CHARGING METHOD • Turn off the main power • Flip open the charger port protector on the front of the battery. • Use the secondary charger pigtail to adapt the battery charger to plug into the battery directly. 1. Keep charging time of the battery to 6 hours when it comes to off board charging to avoid overcharging. 2.
- Page 28 FREE WHEEL MODE To put the FlyteMax2 in Free Wheel Mode, come to a full stop and turn off the power on the controller. Push down on the two red levers located on each motor as shown.
- Page 29 TRASNPORTING THE FLYTEMAX2 Never transport the powerchair in a tie up system (electric mode), as the FlyteMax2 Powerchair is not compatible with them. Never sit in a powerchair and be transported in a moving vehicle. Do not place the folded power powerchair in the front seat with the driver where it can move and slide.
- Page 30 Consumer must have proof of purchase from Top Gun Mobility or the authorised Powerchair provider to receive service. The warranty covers the following Powerchair models: FlyteMax2 Powerchair”. 5 Year Warranty: From the date of purchase from an authorized Top Gun Mobility’ Retailer, in the event of...
- Page 31 TRANSPORT/CALL OUT COSTS As the owner, you must bear the cost of transporting the unit to the Retailer or should you decide to have the Retailer comes to you, you must bear the cost of the dealer/retailers call out fee. Your dealer/retailer may choose to waive this cost, but this will be at the dealer/retailer’s discretion only and separate to Top Gun Mobility’s warranty terms and conditions.
- Page 32 Technical Service, please scan the following QR code. Copyright Top Gun Mobility User Manual & Warranty Booklet 2023 Page 29 of 32...
