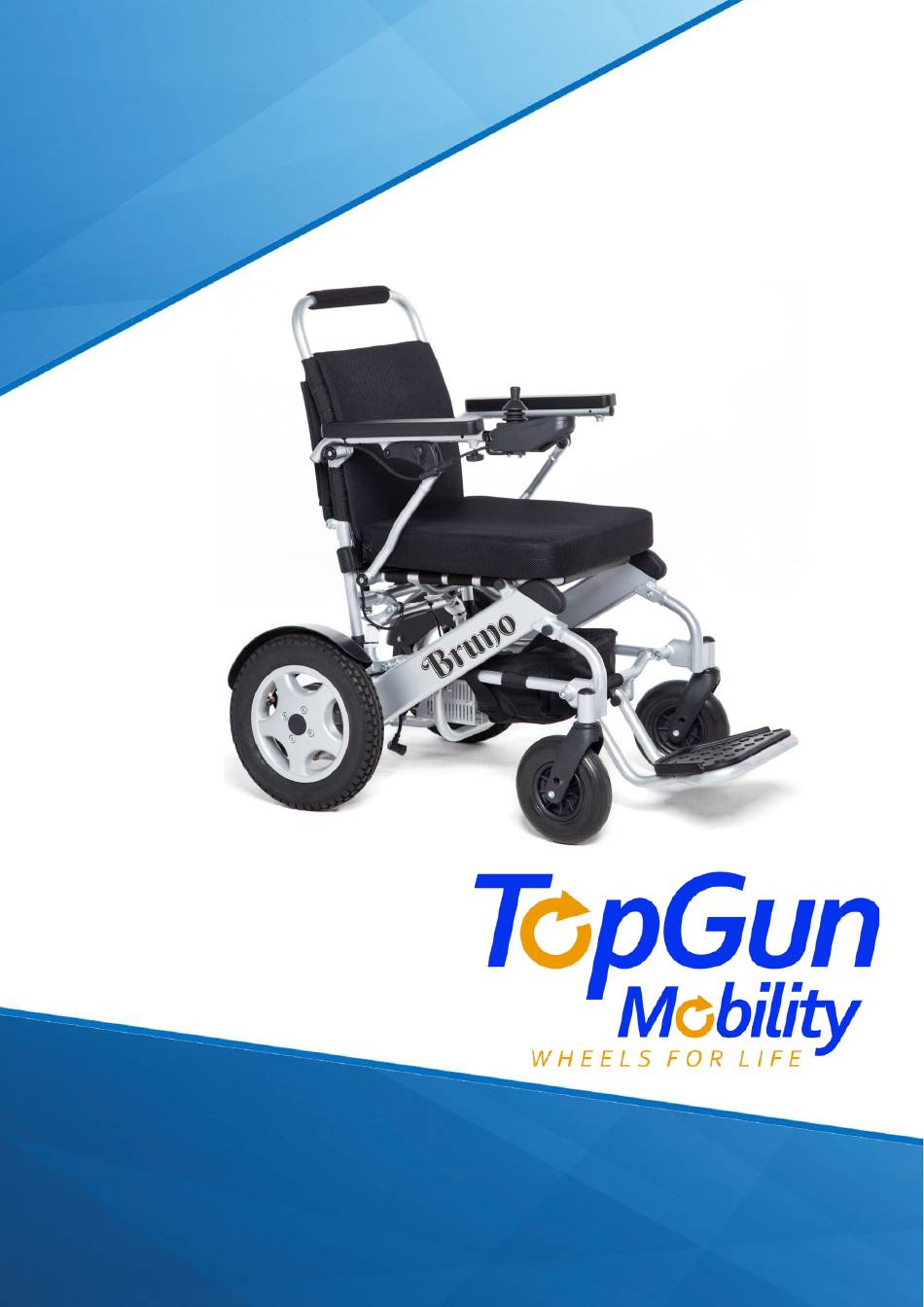

- Page 1 BRUNO POWERCHAIR xsdfva USER MANUAL...
-
Page 2: Table Of Contents
Driving the Fold Power Wheelchair Bruno: ..................11 Safe Operation Continued …......................12 Getting out of the Fold Power Wheelchair Bruno: ................12 Weight limited-Do not exceed or the warranty will be void: ............. 12 When transporting the Fold Power Wheelchair Bruno: ..............12 PRECAUTIONS ............................ -
Page 3: Introduction
Top Gun Mobility and its affiliates cannot be held responsible for personal injuries or property damage caused by improper handling of the Bruno power chair. Your opinions are very important to us – if you have any comments on the functionality and safety of this power chair, or the contents of this manual, please feel free to make contact with your local dealer, distributor or Top Gun Mobility. -
Page 4: Specifications
SPECIFICATIONS Model BRUNO Unfold size 954x629x948mm Fold size 629x346x752mm Turning Radius 780mm Maximum Incline 9◦ (Depending on user weight & surrounding conditions) Maximum Speed 10klm/hr Maximum Weight Capacity 160kg Ground Clearance 550mm Seat Dimensions 430x430mm Drive Wheels 12” Pneumatic Tyres Front Wheels 8”... -
Page 5: Components - Folding & Unfolding
1. The Bruno Power Chair ships upright; carefully open the top of the box then turn the box on the side for easier removal of the contents. -
Page 6: Unfolding Process
Unfolding Process STEP ONE Grip the backrest, and then pull to open. Firmly grasp the push bar and pull up while holding down on the seat to expand the chair and complete the assembly. Hold down seat to expand Grasp push bar STEP TWO Lock the safety clasp into place Safety Clasp... -
Page 7: Folding Process
Folding Process STEP ONE Open the safety clasp. The image below shows how it should appear when open STEP TWO While one hand is holding the seat, the other hand should grasp the backrest bar, and then push forward to fold down. NB: This action may require some strength Grasp the backrest bar Hold Seat to Fold P a g e... -
Page 8: Installing The Joystick Controller
INSTALLING THE JOYSTICK CONTROLLER STEP ONE Insert the controller joystick into the armrest tube and tighten the knob to fix it in position. STEP TWO Connect the controller wire harness to the CPU wire harness that runs from the chair itself, taking care to line up the pins properly so that they do not get bent, broken or damaged. -
Page 9: Adjusting The Armrest
ADJUSTING THE ARMREST For the sake of your on-off wheels, turn on the lock knob anticlockwise up to lift the armrest. MANUAL MODEL OPERATION Press down inside on the clutch handle to keep the electromagnetic brake at the separation position. This will allow the wheels to move freely so caregiver can push the chair. -
Page 10: Joystick Operation
JOYSTICK OPERATION The joystick controls the Bruno Power Chair’s speed and direction; • Power on: press to turn on the power • Power off: press to turn off the power • Power display: there are three colours of the LED lights. Green. Indicates power left in the batteries. -
Page 11: Charging Instructions
CHARGING INSTRUCTIONS Charging Method (Controller Charging) 1. Turn the power OFF using the button on the controller. 2. Plug in the charger to the controller port (see below). 3. Plug the charger power harness into the charger and then into a grounded wall outlet. 4. -
Page 12: Charging Method (Off-Board Charging Cable)
Charging Method (Off-Board Charging Cable) 1. Turn the power OFF using the button on the controller. 2. Take the off-board charging cable from the bag under the seat. The plastic side is used to connect the battery, and the metal side is used to connect the charger. 3. -
Page 13: Safe Operation
Practice bending, reaching and transferring in and out of the Bruno Folding Power Chair. d) Always be aware of your surroundings. e) If you are not sure the Bruno Folding Power Chair can surpass an obstacle, try to find another way around. -
Page 14: Safe Operation Continued
Never sit in the Bruno Folding Power Chair while in a moving vehicle; an accident or sudden stop may cause you to be thrown from the electric wheelchair. b) Never transport the Bruno Folding Power Chair in the front of seat of a vehicle where it may shift and interfere with the driver. -
Page 15: Maintenance
Bruno Fold Power Wheelchair. Read all battery instructions before attempting to change or charge batteries. When you haven’t driven the Bruno Folding Power Chair for a long time, please charge the battery every month to avoid the battery “hungry die”. -
Page 16: Transport & Storage
TRANSPORT & STORAGE • To pick up the chair, stand it up when it is folded. • Folded chair can be stored in the car trunk. • The battery should be fully charged and the chair should be placed in cool, dry, and ventilated place in case of the chair will long-term placement. -
Page 17: Retail Advice & Buyers Warranty Registration
Selling Dealer to complete at time of sale in order to Register Warranty with Top Gun Mobility Copy completed details and forward to : info@topgunmobility.com.au Customers Email Address: ______________________________________________________ Customer: __________________________ Model: BRUNO Power Wheelchair Address: Serial Number: _________________________ ___________________________________ ___________________________________ Colour: _______________________________... - Page 18 Warehouse Location Unit 57/109 Leitchs Road Brendale QLD 4500 T: (07) 3282 8211 www.topgunmobility.com.au...
