Sunrise Medical QUICKIE Q700 M Series Instruction Sheet

Please read these instructions carefully before beginning the installation. Failure to understand and
follow installation instructions may result in injury to installer and/or end user and may void the warranty.
If you have any questions call Sunrise Medical Technical Support at 800-333-4000.
Center mount cover parts:
1. 1 ea Center mount cover (A)
2. 3 ea Button head cap screw (B)
A. REMOVE CURRENT COVER

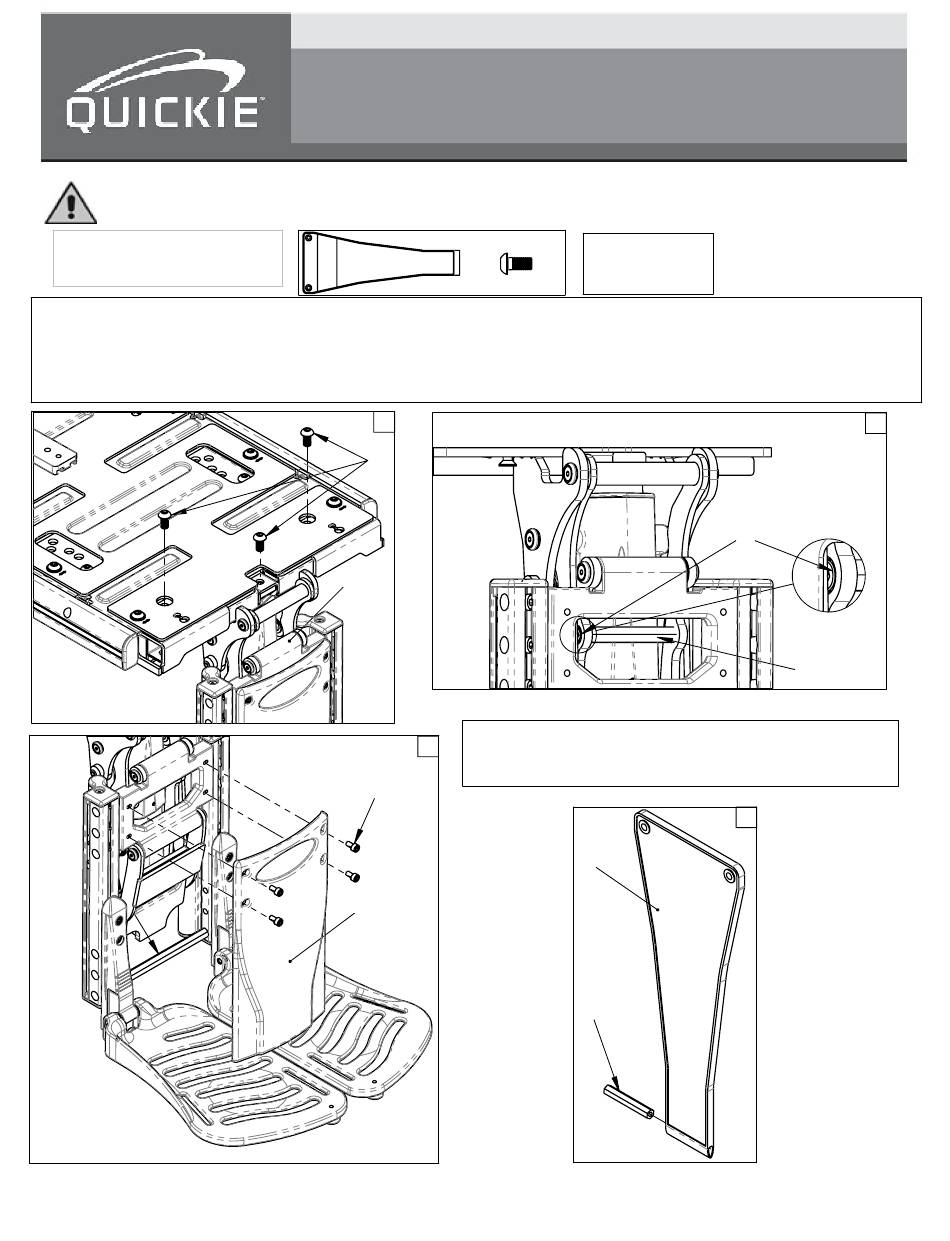

1. Using a 5mm hex key, remove the three screws (B) holding the power center mount (PCM) to the seat, Fig 1.
2. Using the 4mm hex key remove the 4 screws (C) holding the shroud onto the center mount footrest, Fig 2. Save screws.
3. Using the same 4mm hex key remove the 2 screws (D) holding the cover connection tube (E), Fig 3. Note- You may
need to raise the footrest to access the screws. Save screws.
4. Remove the connection tube (E), Fig 3. Save tube.
E
©2018 Sunrise Medical (US) LLC
POWER CENTER MOUNT COVER REPLACEMENT
A
1
B
PCM
B. INSTALL NEW CENTER MOUNT COVER
2
1. Slide the saved cross tube (E) through the sleeve at the
bottom of the new cover (A), Fig 4.
C
Shroud
INSTRUCTION SHEET
Tools required:
1. 4mm hex key
B
2. 5mm hex key
3. Torque wrench
A
E
3
D
E
4
248764 Page 1 of 2
