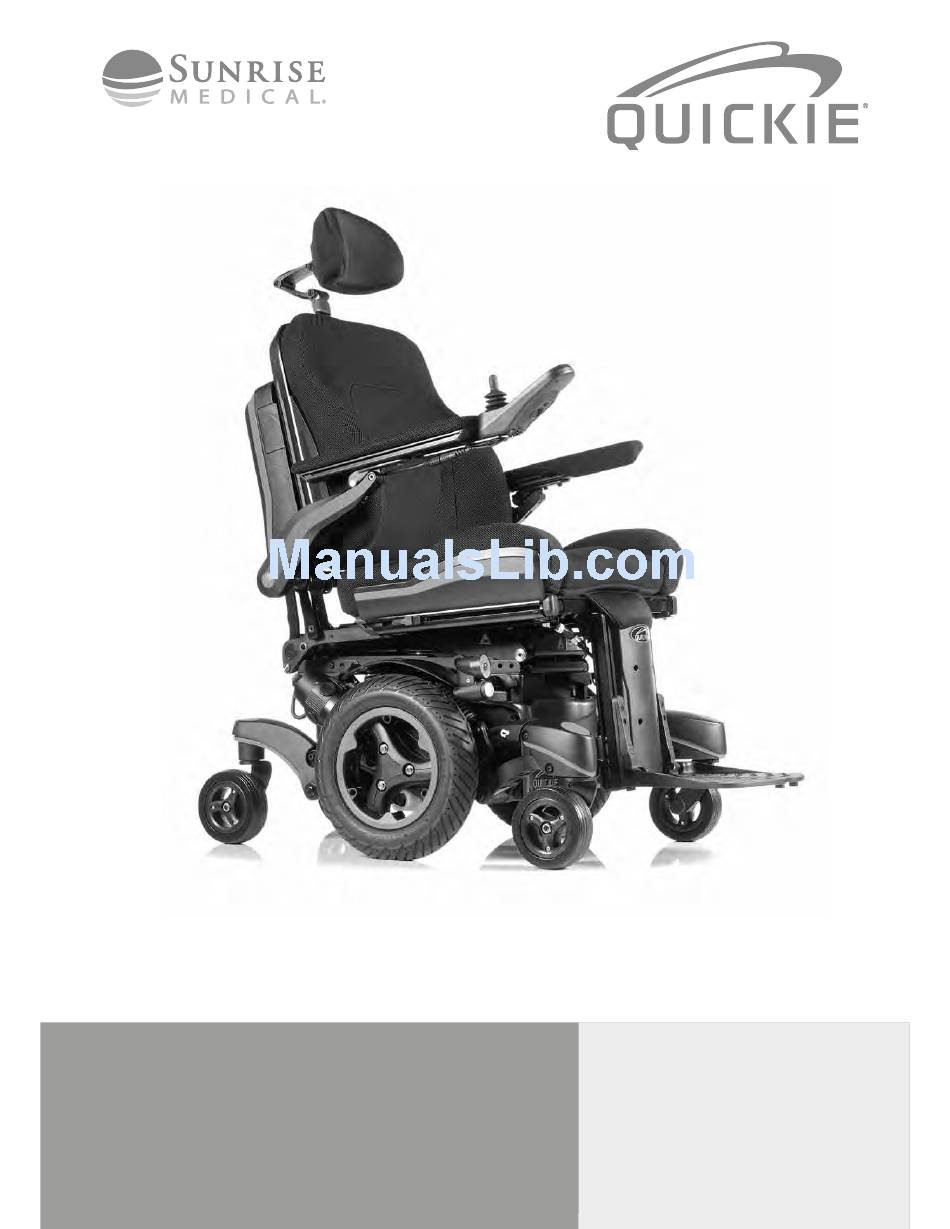

- Page 1 Powered Wh ee l c ha ir P/N 247553 Instructions for Use Quickie Q700 M G e n e ra l M a n u a l...
- Page 2 Thank you for choosing a Quickie Power Chair. We want to We at Sunrise Medical want you to get the best out of your hear your questions or comments about this manual, the wheelchair. This User Manual will familiarize you with the safety and reliability of your system, and the service you chair and its features.
-
Page 3: Table Of Contents
Contents 6.0 Batteries, charging and range ......18 1.0 User information............ 4 6.1 Batteries ............... 18 1.1 This user manual .......... .. 4 6.2 Charging batteries: .......... 19 1.2 For further information ........ .. 4 6.3 The range of your vehicle: ........ 20 1.3 Symbols used in this manual ....... -
Page 4: User Information
As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. -
Page 5: Safety
2.0 Safety Follow the instructions carefully next to these warning symbols! Not paying careful attention to these instructions could result in physical injury or damage to the wheelchair or the environment. Where ver possible, safety information is provided in the relevant chapter. Fig. -
Page 6: Safety: Moving Parts
2.3 Safety: Moving parts DANGER! A wheelchair has moving and rotating parts. Contact with moving parts may result in serious physical injury or damage to the wheelchair. Contact with the moving parts of the wheelchair should be avoided . 2.5. •... -
Page 7: Safety: Choking Hazard
2.5 Safety: Choking hazard 2.8 Safety: Lifting the wheelchair WARNING! DANGER! • Do not lift this seating system by any parts that are This mobility aid uses small parts which under certain removable, doing so may result in damage to the seating circumstances may present a choking hazard to young children. -
Page 8: Intended Use Of The Wheelchair
3.0 Intended use of the wheelchair Fig. 3.1 General description The Q700 range is an ultimate modular power wheelchair. A distinctive feature is the suspension system that allows you to have a perfect driving indoors as well as outdoors. 3.1 Area of application: The user Power wheelchairs are exclusively for a user who is unable to walk or has limited mobility, for their own personal use indoors and outdoors. -
Page 9: Area Of Application: The User Environment
If damage is questionable or if there is concern regarding the condition of the chair, Sunrise Medical recommends replacement of the chair. Wheelchairs involved in collisions should be replaced. -
Page 10: Setting Up The Wheelchar
Every optional seat height lays within the maximum safe slope as described in After the initial setup by the Sunrise Medical Authorized Dealer (ANSI/RESNA WC-1:2009). Lowering the seat height has a or after making any adjustments to the wheelchair a check to positive influence on the (dynamic stability. -
Page 11: Using The Wheelchair
3. Avoid running into objects. 5.2 Making a transfer 5.1 Checking wheelchair before use Sunrise Medical recommends that you consult your healthcare Perform the following daily check routine before driving: professional for assistance in developing your personal front or side transfer technique to best suit your needs and avoid any CAUTION! personal injury. -
Page 12: Driving The Wheelchair
5.3 Driving the wheelchair WARNING • The user of the wheelchair is at all times completely responsible for complying with the applicable local safety regulations and guidelines Powered wheelchairs are driven by means of a controller. There is a separate user manual for the controller and this was included with this wheelchair (&... -
Page 13: Curves
Road use 5.5 Breaking and Emergency stop Please show the utmost consideration for the other There are three ways to stop your wheelchair: traffic on the road. • Simplest and safest way to stop the wheelchair is to release the joystick. This will bring the chair to a halt in a controlled manner. -
Page 14: Driving On A Slope
5.6 Driving on a slope Gradients: ascents Your wheelchair has been designed and tested WARNING! to allow its use on slopes or gradients in standard configuration: • When going uphill, keep the chair moving. 7.5° for 5mph and 6mph • Steer by carefully moving the joystick forward making 9°... -
Page 15: Obstacles And Curbs
5.8 Obstacles and curbs: Descending the curb: DANGER! DANGER! Move the chair slowly and carefully in a forward direction • Never descend a curb backwards. until both front wheels are on the edge of the curb, again in • Do not attempt to climb or descend a series of steps or use a 90°... -
Page 16: Pushing The Wheelchair
5.9 Pushing the wheelchair The wheelchair can be moved by pushing. In order to do so, the motors must be disengaged using a freewheel switch. This feature was developed for the attendants of wheelchair users and also functions as an emergency freewheel switch. The freewheel switch has 2 positions 1. -
Page 17: Powered) Seating Options
5.10 (Powered) seating options The wheelchair can be equipped by the following mechanical and/or powered options to adjust your seating position. These options can be operated by the user without the use of tools. Powered adjustable seating options (Fig. 5.5 - Fig.5.7) How to operate these powered seating options can be found in &... -
Page 18: Batteries, Charging And Range
You can safely transport this type of • Do not, under any circumstances, tamper with the batteries. battery without fear of acid spilling. Furthermore, they are If in any doubt contact your local Sunrise Medical authorized approved for transportation on aircraft, trains, and ships. dealer. •... -
Page 19: Charging Batteries
Below is set out a battery care plan for maintenance free batteries. This has been agreed between Sunrise Medical and For more information about the charger operation, consult the battery manufacturers, to enable you to get the best out ̀... -
Page 20: The Range Of Your Vehicle
The majority of charger sizes are electrically double insulated is the same. Sunrise Medical measure the range of their and no earth connection is required. Some larger sizes may vehicles in a consistent and uniform manner, but variances... -
Page 21: Battery Warranty
6.4 Battery warranty Battery warranties are subject to periods set by the manufacturers. However, most of these warranties are subject to a wear and tear clause, and if you genuinely wear out your batteries in 6 months, it will not be possible to obtain a replacement under warranty. -
Page 22: Transportation
7.0 Transit 7.1 Transport of the wheelchair in a car Getting in and out of the vehicle DANGER! • Confirm that the vehicle is suitably equipped to transport a passenger in a wheelchair, and ensure the method of access/ egress is suitable for your wheelchair type. The vehicle should have the floor strength to take the combined weight of the occupant, the wheelchair and accessories. - Page 23 DANGER! • The wheelchair can only be secured by using the tie-down points on the wheelchair’s frame (Fig. 7.2 - 7.6). • The tie-down points (2 in the front, 2 in the back) are indicated by the transit symbol (Fig. 7.5). Fit the front straps first, then the rear.
-
Page 24: The Wheelchair As A Passenger Seat
A wheelchair secured in a vehicle will not provide the equivalent level of safety and security as a vehicle seating system. Sunrise Medical recommends that the user transfers to the vehicle seating and uses the vehicle-installed restraint system whenever possible. Sunrise Medical recognizes that it... - Page 25 Occupant restraint Instruction ✓ 4"/100 mm DANGER! • Use a 3-point occupant restraint system to secure the 55° occupant. • Both pelvic and upper torso restraint belts must be used to restrain the occupant to reduce the possibility of head and chest impacts with the vehicle components.
-
Page 26: Special Transit Requirements
Sunrise Medical. • The wheelchair should be inspected by a Sunrise Medical Transporting the wheelchair as luggage. authorized dealer/service agent, before reuse following Parts of the wheelchair that can easily be detached should involvement in any type of vehicle collision. -
Page 27: Maintenance And Cleaning
• The chair may start to move. The contact details of your local Sunrise Medical Service • Immediately release the joystick. You must be able to hear Center can be found on the inside front cover of this booklet. - Page 28 • A complete inspection, safety check and service should be Quarterly checks: made by a Sunrise Medical authorized dealer at least once Perform the quarterly check routine before driving as per year. described below.
-
Page 29: Wheels And Tires Maintenance
* Daily = Before each use of the wheelchair. Quarterly = Every three (3) months. If fasteners are found to be loose a Sunrise Medical Authorized Dealer should tighten the fastener to the torque setting per size detailed below, unless stated otherwise in all appropriate owner’s manuals or installation instructions (if applicable). -
Page 30: Lighting Maintenance
When storing your wheelchair for long periods of time (in excess of one week), follow these simple instructions: CAUTION! • Fully charge the wheelchair for at least 24 hours. • We recommend the use of Sunrise Medical authorized • Disconnect the charger. spare parts only. • Disconnect the batteries. -
Page 31: Trouble Shooting
9.0 Trouble shooting If the wheelchair is not working as it should, check the following points. • Check whether the batteries are charged. • Turn the wheelchair off and then back on again. • Check whether the battery plugs are all securely in place. •... -
Page 32: Technical Specifications: Applicable Norms / Standards
10.0 Technical specifications: Applicable norms / standards This product complies with the regulations and guidelines for medical aids and carries a CE symbol. The product meets the requirements and standards below. These are checked by independent institutions. Standard Definition / description Test Dummy Weight EU guideline... - Page 33 247553 Rev. A Q700 M General Manual...
-
Page 34: Guarantee / Warranty
6. WHAT AUTHORIZED DEALER MUST DO - 1. Obtain from Sunrise Medical, while this warranty is in effect, prior approval for return or repair of covered parts. Contact Customer Service for a Returned Material Authorization (RMA) number and information as to where to return the product. - Page 35 247553 Rev. A Q700 M General Manual...
- Page 36 Website Addresses: = www.SunriseMedical.com = www.SunriseMedical.fr = www.SunriseMedical.es Customer Service 800.333.4000 In Canada 800.263-3390 Sunrise Medical 2842 Business Park Ave. Fresno, CA 93727 • USA ©2018 Sunrise Medical (US) LLC 4.18 247553 Rev. A...
