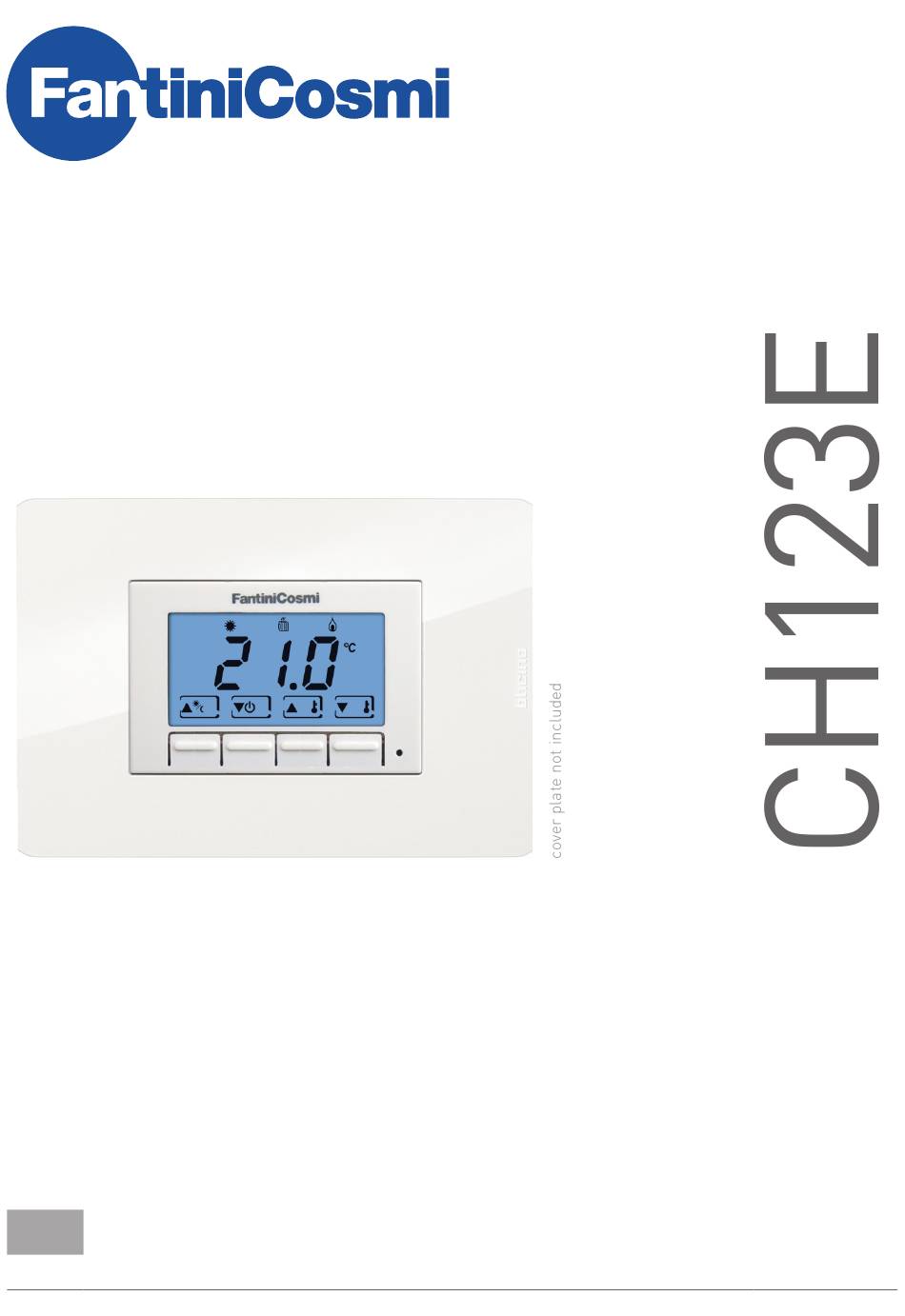

- Page 1 FLUSH MOUNTING THERMOSTAT 230V INSTALLATION AND USER MANUAL...
- Page 2 Intellicomfort CH123E FLUSH MOUNTING THERMOSTAT 230V Dear customer, thank you for purchasing the Fantini Cosmi flush mounting thermostat, model CH123E. This manual contains all the information required for a correct installation and configuration. You can also download this manual in digital format and in several languages by framing the QR code below and entering the product code.
- Page 3 Intellicomfort CH123E INDEX 1. TECHNICAL FEATURES ................pag. 4 2. INSTALLATION ..................pag. 5 3. ELECTRICAL CONNECTIONS ..............pag. 7 4. DISPLAY AND KEYS DESCRIPTION ............pag. 8 5. OPERATION ....................pag. 8 6. THERMOSTAT CONFIGURATION .............. pag. 11 7. MAINTENANCE ..................
-
Page 4: Technical Features
Intellicomfort CH123E 1 - TECHNICAL FEATURES Power supply 230V 50Hz Contact range 5(3)A 250V~ voltage-free switching Maximum room temperature T45 °C Temperature adjustment scale 2 ÷ 40 °C, increase 0.1°C Measurement scale/room T display -40 ÷ 50 °C Type of action... -
Page 5: Installation
Intellicomfort CH123E 2 - INSTALLATION The CH123E thermostat must be installed in a 3-module recessed box, in the middle of the apartment, preferably 1.5 m off the ground. The required components, all included in the package according to the following table. - Page 6 3. fasten the thermostat to the suitable frame; 4. mount the cover on the body of the thermostat. 5. connect the two wires of the boiler to terminals 1-2 of CH123E; 6. screw the frame onto the box using the provided screws;...
-
Page 7: Electrical Connections
Installation and maintenance operations must be carried out with the system's electrical power switched off and by qualified personnel, in compliance with the regulations in force. Boiler Caldaia PLEASE NOTE: when CH123E is disconnected, the boiler contact remains CH123E CH143A in its current position. 230V 50Hz During black-outs, the programmed parameters will not be lost as the settings are stored in a non-volatile memory. -
Page 8: Operation
Intellicomfort CH123E 4 - DISPLAY AND KEYS DESCRIPTION The thermostat is equipped with 4 keys, the function of which varies depending on the situation. It is described by the symbol which appears on the display next to the key. COMFORT / TMAX... -
Page 9: Operating Mode Selection
Intellicomfort CH123E OPERATING MODE SELECTION Press to set Press to set Press to set COMFORT / TMAX mode ECONOMY / TMIN mode OFF ANTIFREEZE mode CUSTOMISE THE TEMPERATURE When you have set the operating mode , press the two keys (increase... - Page 10 Intellicomfort CH123E CHOICE OF BACK LIGHTING DURATION 10 sec. Increase\decrease back lighting duration pressing and while keeping ECONOMY/COMFORT and ON/OFF keys pressed. Press together, and keep pressed, You may choose the time during to change back lighting duration. which back lighting remains on: OFF →...
-
Page 11: Thermostat Configuration
Intellicomfort CH123E 6 - THERMOSTAT CONFIGURATION ATTENTION: only qualified personnel may configure the device. Configuring the thermostat allows you to customise the device’s operating parameters. Perform the following steps to access the configuration program: Using a sharp object, press the reset button while holding down the “COMFORT/ECONOMY”... - Page 12 Intellicomfort CH123E Index Parameter Default Values display mode 1 = view room temp 2 = view set point correction of displayed tem- 0.0°C +/- 4°C (step 0.1°C) perature value winter lower limit set point 2.0°C 2.0°C……40.0°C (step 1.0°C) temperature winter upper limit set point 40.0°C...
-
Page 13: Maintenance
Intellicomfort CH123E 7 - MAINTENANCE Use only a soft and dry cloth to clean the device. Do not use water or other liquid substances. 6 - DISPOSAL Symbol of the crossed-out wheeled bin indicates that the product must be collected and disposed of separately from household waste. - Page 14 Intellicomfort CH123E - 14...
- Page 16 FANTINI COSMI S.p.A. Via dell’Osio, 6 - 20049 Caleppio di Settala, Milan - ITALY Ph. +39 02 95682.222 | export@fantinicosmi.it www.fantinicosmi.com...
