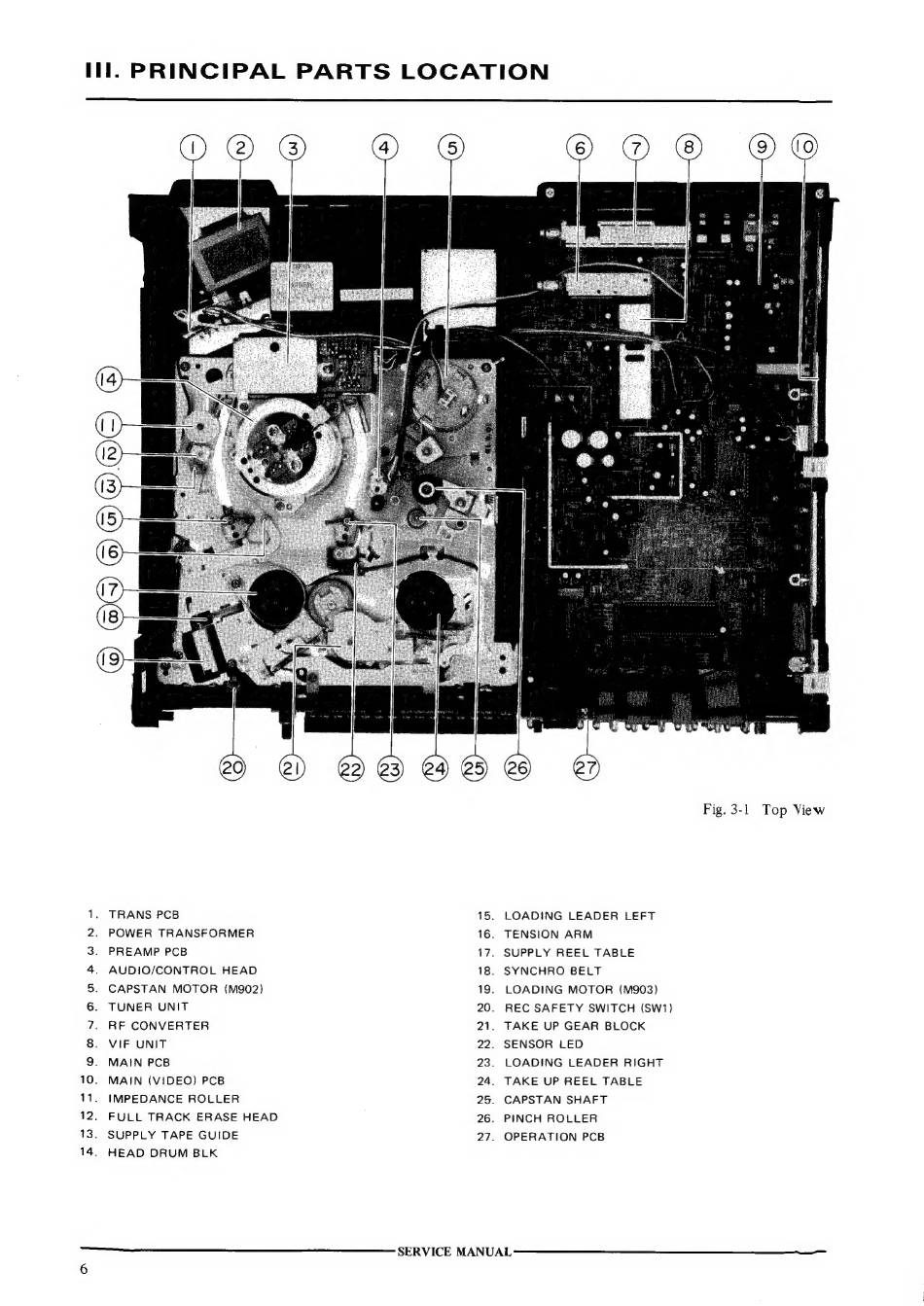

Ill. PRINCIPAL PARTS LOCATION
nc rn———— SERVICE MANUAL
6
OF AO See INS
TRANS PCB
POWER TRANSFORMER
PREAMP PCB
AUDIO/CONTROL HEAD
CAPSTAN MOTOR (M902)
TUNER UNIT
RF CONVERTER
VIF UNIT
MAIN PCB
MAIN (VIDEO) PCB
IMPEDANCE ROLLER
FULL TRACK ERASE HEAD
SUPPLY TAPE GUIDE
HEAD DRUM BLK
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
LOADING LEADER LEFT
TENSION ARM
SUPPLY REEL TABLE
SYNCHRO BELT
LOADING MOTOR (M903)
REC SAFETY SWITCH (SW1)
TAKE UP GEAR BLOCK
SENSOR LED
LOADING LEADER RIGHT
TAKE UP REEL TABLE
CAPSTAN SHAFT
PINCH ROLLER
OPERATION PCB
Fig. 3-1 Top View
