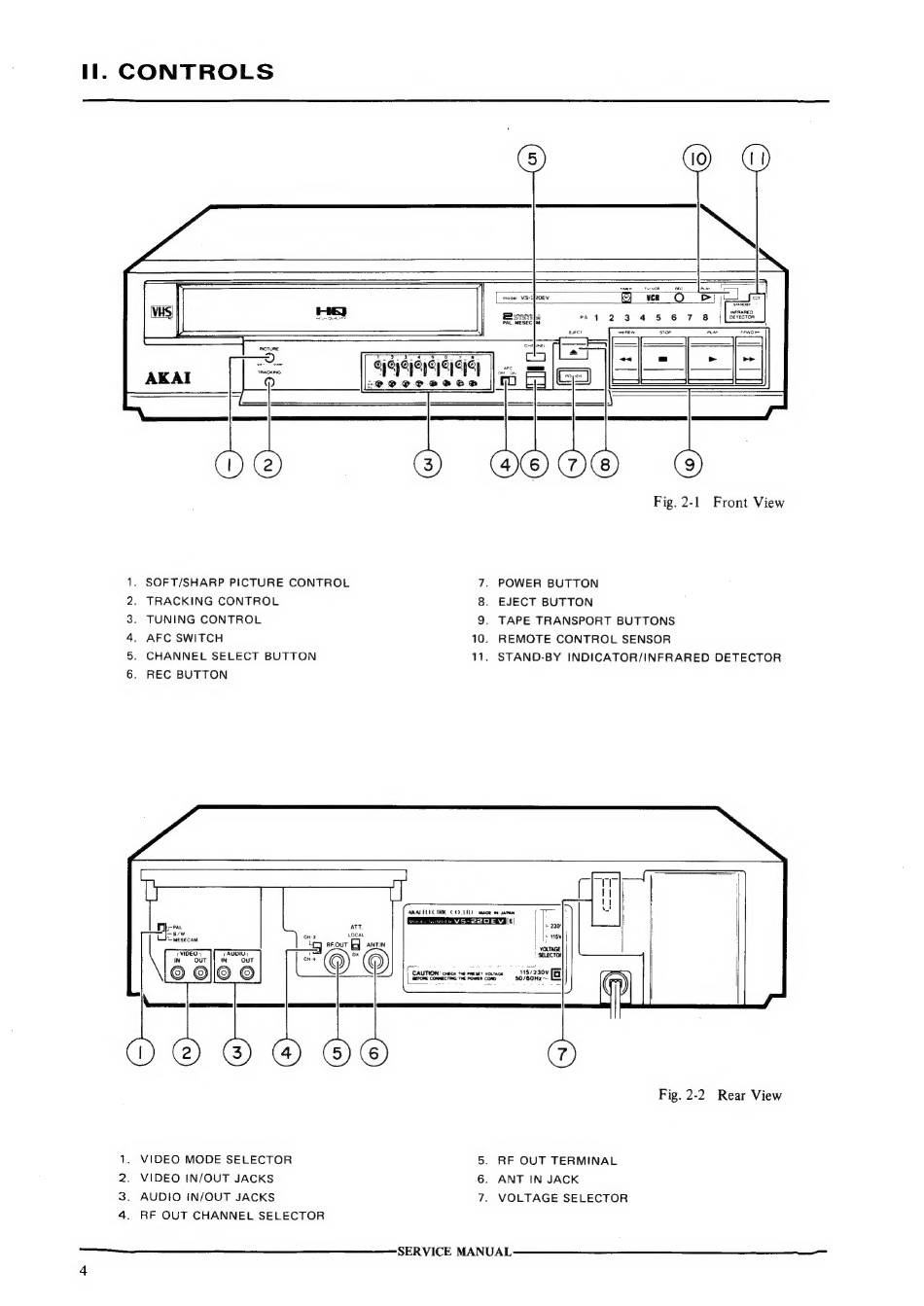

Il. CONTROLS
INFRARED
OETECTOR
CT sib bab
£@@ OCC SSCS
Fig. 2-1 Front View
1, SOFT/SHARP PICTURE CONTROL 7. POWER BUTTON
2. TRACKING CONTROL 8. EJECT BUTTON
3. TUNING CONTROL 9. TAPE TRANSPORT BUTTONS
4. AFC SWITCH 10. REMOTE CONTROL SENSOR
5. CHANNEL SELECT BUTTON 11. STAND-BY INDICATOR/INFRARED DETECTOR
6. REC BUTTON
ABALELEC
ATT.
Bw CHa LOCAL
(REFORE COMMEC TING THE POWER CORD $0/60Hz ~
Fig. 2-2. Rear View
1. VIDEO MODE SELECTOR 5. RF OUT TERMINAL
2. VIDEO IN/OUT JACKS 6. ANT IN JACK
3. AUDIO IN/OUT JACKS 7. VOLTAGE SELECTOR
4. RF OUT CHANNEL SELECTOR
nnn SERVICE MANUAL —————————$
4
