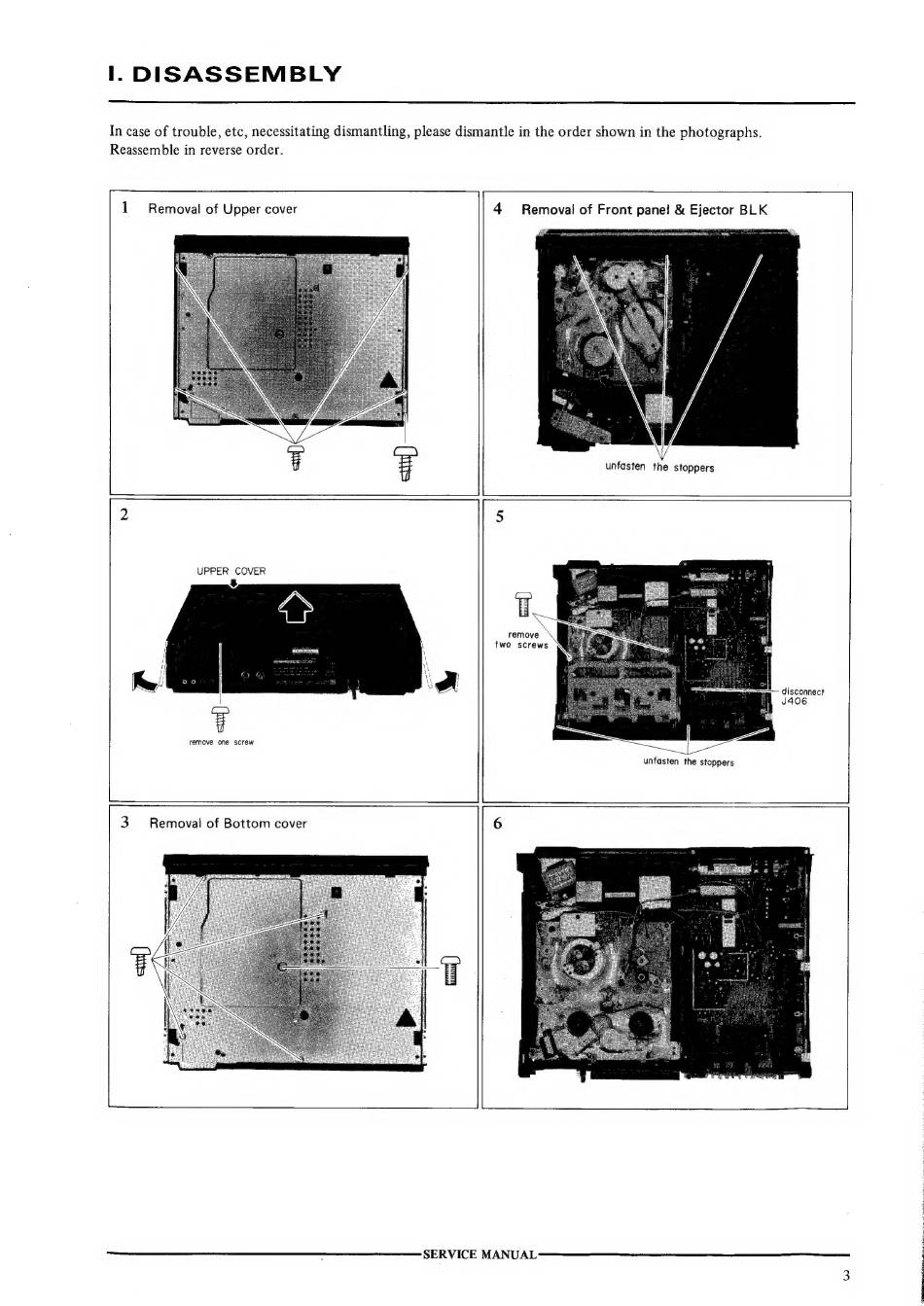

I. DISASSEMBLY
In case of trouble, etc, necessitating dismantling, please dismantle in the order shown in the photographs.
Reassemble in reverse order.
Removal of Upper cover
4
Removal of Front pane! & Ejector BLK
unfasten
the stoppers
UPPER
COVER
5,
remove
two
screws
J406
remove
one
screw
unfasten
the stoppers
3
Removal of Bottom cover
6
SERVICE MANUAL
