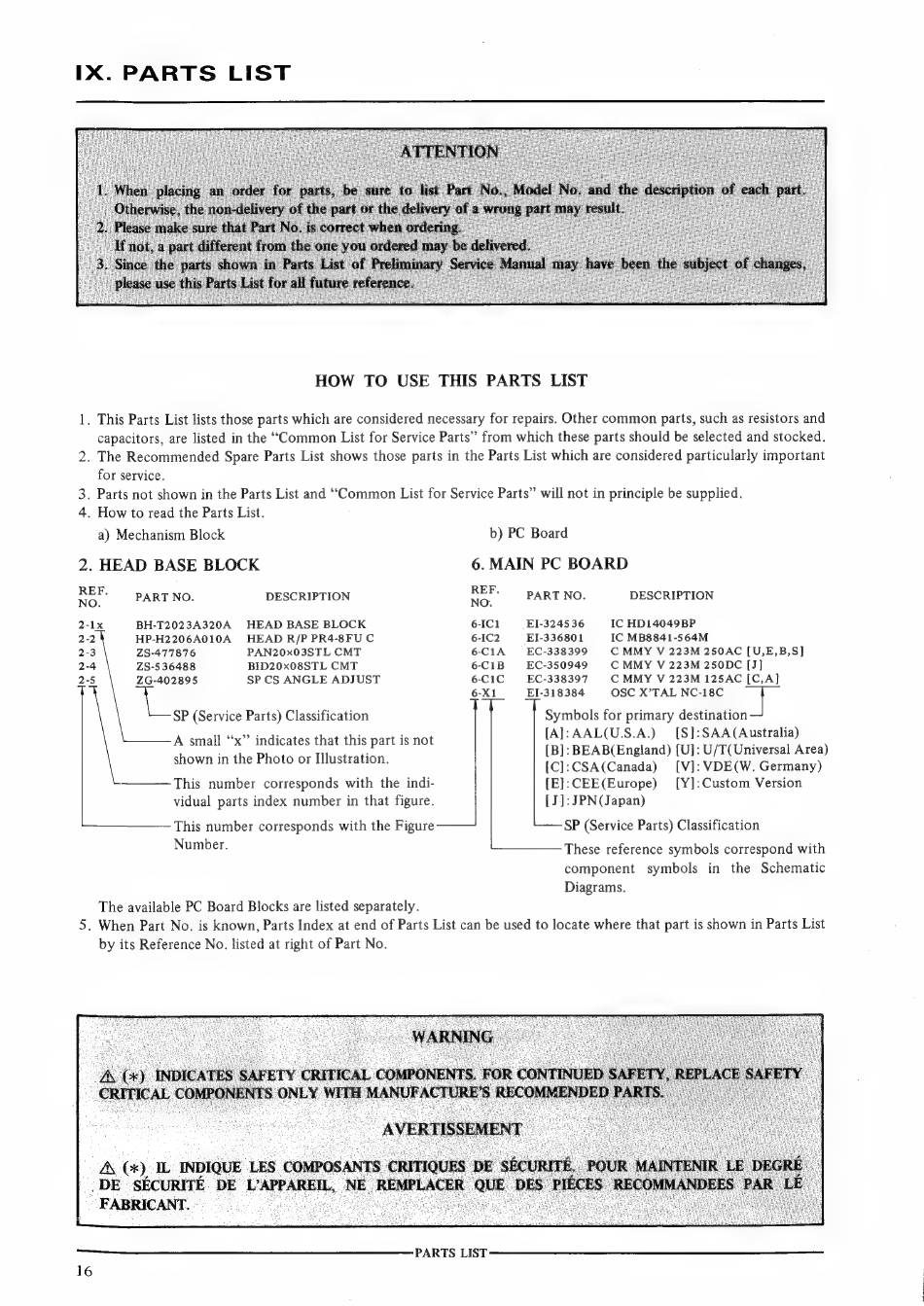

IX. PARTS LIST
HOW TO USE THIS PARTS LIST
1. This Parts List lists those parts which are considered necessary for repairs. Other common parts, such as resistors and
capacitors, are listed in the "Common List for Service Parts" from which these parts should be selected and stocked.
2. The Recommended Spare Parts List shows those parts in the Parts List which are considered particularly important
for service.
3. Parts not shown in the Parts List and 'Common List for Service Parts" will not in principle be supplied.
4. How to read the Parts List.
a) Mechanism Block b) PC Board
2. HEAD BASE BLOCK 6. MAIN PC BOARD
a PART NO. DESCRIPTION a PART NO. DESCRIPTION
2-1x BH-T2023A320A HEAD BASE BLOCK 6-IC1 EI-324536 IC HD14049BP
2-2 HP-H2206A010A HEAD R/P PR4-8FU C 6-IC2 _ EI-336801 IC MB8841-564M
2-3 ZS-477876 PAN20x03STL CMT 6-C1A EC-338399 CMMY V 223M 2S50AC [U,E,B,S]
2-4 ZS-536488 BID20x08STL CMT 6-C1B EC-350949 CMMY V 223M 250DC [J]
ZG-402895 SP CS ANGLE ADJUST 6-C1C EC-338397 C MMY V 223M 125AC [C,A]
6-X1 EI-318384 OSC X'TAL NC-18C
n
Symbols for primary destinatio
[A]: AAL(U.S.A.) [S]:SAA(Australia)
[B]: BEAB(England) [U]: U/T( Universal Area)
[C]:CSA(Canada) [V]: VDE(W. Germany)
(E]:CEE(Europe) [Y]:Custom Version
[J]: JPN(Japan)
SP (Service Parts) Classification
SP (Service Parts) Classification
A small "x" indicates that this part is not
shown in the Photo or Illustration.
This number corresponds with the indi-
vidual parts index number in that figure.
This number corresponds with the Figure
Number.
These reference symbols correspond with
component symbols in the Schematic
Diagrams.
The available PC Board Blocks are listed separately.
5. When Part No. is known, Parts Index at end of Parts List can be used to locate where that part is shown in Parts List
by its Reference No. listed at right of Part No.
Ax (8), IL INDIQUE LES COMPOSAN
_DE SECURITE DE L'APPAREIL, NE
FABRICANT. msgaee Ee.
PARTS LIST
16
