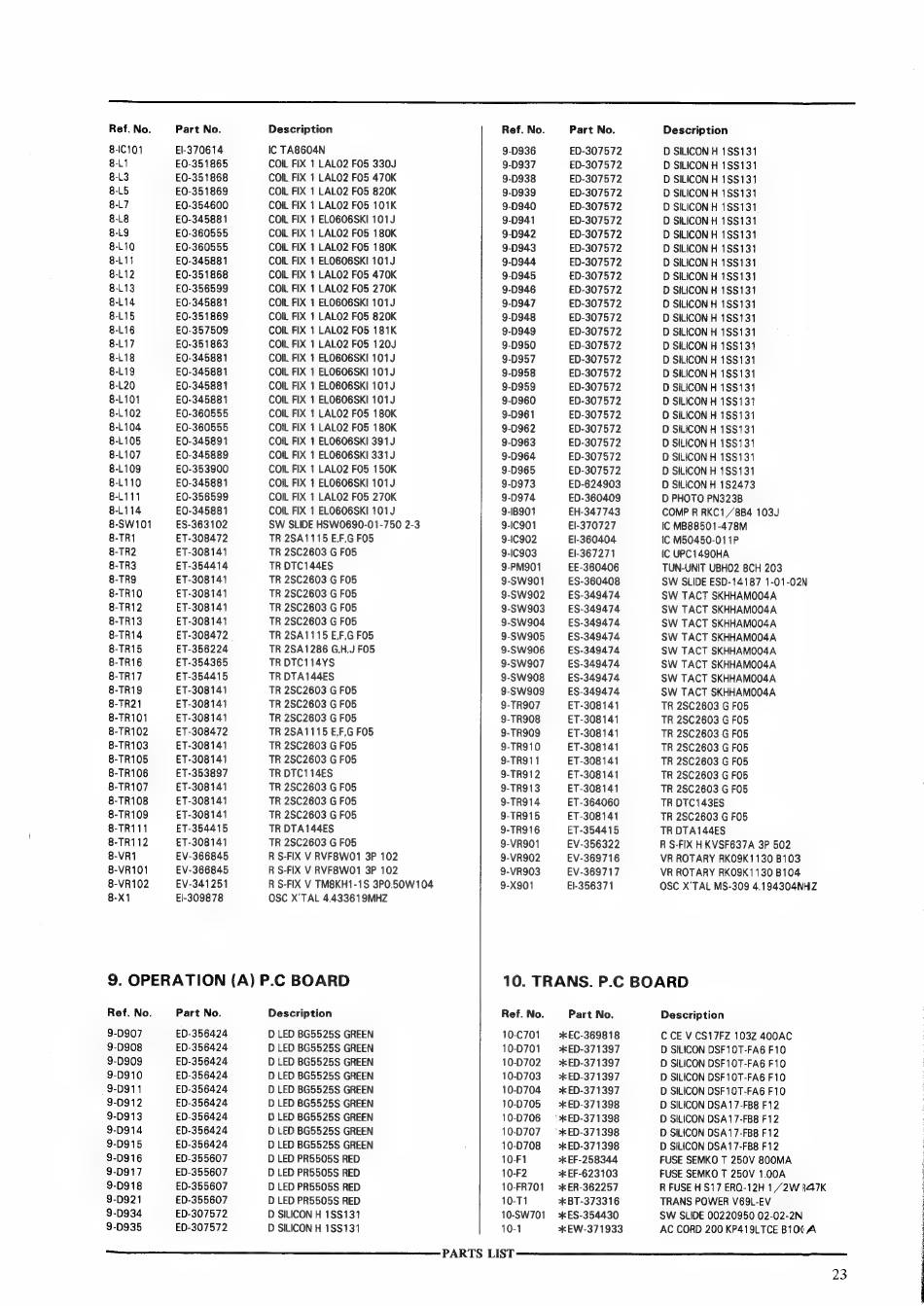

Ref. No. Part No. Description Ref. No. Part No. Description
81C101 EIl-370614 IC TA8604N 9-D936 ED-307572 D SILICON H 1$$131
8-L1 E0-351865 COIL FIX 1 LALO2 FO5 330J 9-D937 ED-307572 D SILICON H 1$S131
8-L3 E0-351868 COIL FIX 1 LALO2 FOS 470K 9-D938 ED-307572 D SILICON H 188131
8-L5 E0-351869 COIL FIX 1 LALO2 FOS 820K 9-D939 ED-307572 D SILICON H 18S131
8-L7 E0-354600 COIL FIX 1 LALO2 FOS 101K 9-D940 ED-307572 D SILICON H 188131
8-L8 E0-345881 COIL FIX 1 ELO6O6SKI 101J 9-D941 ED-307572 D SILICON H 188131
8-L9 E0-360555 COIL FIX 1 LALO2 FOS 180K 9-D942 ED-307572 D SILICON H 1$S131
8-L10 £0-360555 COIL FIX 1 LALO2 FOS 180K 9-D943 ED-307572 D SILICON H 188131
8-L11 E0-345881 COIL FIX 1 ELO6O6SKI 101J 9-D944 ED-307572 D SILICON H 188131
8-L12 E0-351868 COIL FIX 4 LALO2 FO5 470K 9-D945 ED-307572 D SILICON H 1$S131
8-L13 E0-356599 COIL FIX 1 LALO2 FOS 270K 9-D946 ED-307572 D SILICON H 18S131
8-L14 E0-345881 COIL FIX 1 ELO6O6SKI 101J 9-D947 ED-307572 D SILICON H 1$S131
8-L15 E0-351869 COIL FIX 1 LALO2 FOS 820K 9-D948 ED-307572 D SILICON H 18$131
8-L16 E0-357509 COIL FIX 1 LALO2 FO5 181K 9-D949 ED-307572 D SILICON H 18$131
8-L17 E0-351863 COIL FIX 1 LALO2 FOS 120J 9-D950 ED-307572 D SILICON H 18S131
8-L18 E0-345881 COIL FIX 1 ELO6O6SKI 101J 9-D957 ED-307572 D SILICON H 188131
8-L19 E0-345881 COIL FIX 1 ELO6O6SKI 101J 9-D958 ED-307572 D SILICON H 1$S131
8-L20 E0-345881 COIL FIX 1 ELO6O6SKI 101J 9-D959 ED-307572 D SILICON H 18S131
8-L101 E0-345881 COIL FIX 1 ELO6O6SKI 101J 9-D960 ED-307572 D SILICON H 1$$131
8-L102 E0-360555 COIL FIX 1 LALO2 FO5 180K 9-D961 ED-307572 D SILICON H 18S131
8-L104 E0-360555 COIL FIX 1 LALO2 FOS 180K 9-D962 ED-307572 D SILICON H 18S131
8-L105 E0-345891 COIL FIX 1 ELO6O6SKI 391J 9-D963 ED-307572 D SILICON H 188131
8-L107 E0-345889 COIL FIX 1 ELO6O6SKI 331J 9-D964 ED-307572 D SILICON H 188131
8-L109 E0-353900 COIL FIX 1 LALO2 FOS 150K 9-D965 ED-307572 D SILICON H 188131
8-L110 E0-345881 COIL FIX 1 ELO6O6SKI 101J 9-D973 ED-624903 D SILICON H 182473
8-L111 £0-356599 COIL FIX 1 LALO2 FO5 270K 9-D974 ED-360409 D PHOTO PN323B
8-L114 E0-345881 COIL FIX 1 ELOGO6SKI 101J 9-IB901 EH-347743 COMP R RKC1//8B4 103J
8-SW101 ES-363102 SW SLIDE HSW0690-01-750 2-3 9-IC901 EI-370727 IC MB88501-478M
8-TR1 ET-308472 TR 2SA1115 EF,G FO5 9-IC902 EI-360404 IC M50450-011P
8-TR2 ET-308141 TR 2SC2603 G FO5 9-IC903 El-367271 IC UPC1490HA
8-TR3 ET-354414 TR DTC144ES 9-PM901 EE-360406 TUN-UNIT UBHO2 8CH 203
8-TR9 ET-308141 TR 2SC2603 G FO5 9-SW901 ES-360408 SW SLIDE ESD-14187 1-01-02N
8-TR10 ET-308141 TR 2SC2603 G FOS 9-SW902 ES-349474 SW TACT SKHHAMO04A
8-TR12 ET-308141 TR 2SC2603 G FO5 9-SW903 ES-349474 SW TACT SKHHAMO004A
8-TR13 ET-308141 TR 2SC2603 G FO5 9-SW904 ES-349474 SW TACT SKHHAM004A
8-TR14 ET-308472 TR 2SA1115 E,F,G FO5 9-SW905 ES-349474 SW TACT SKHHAMO04A
8-TR15 ET-356224 TR 2SA1286 G.H,J FO5 9-SW906 ES-349474 SW TACT SKHHAMO004A
8-TR16 ET-354365 TR DTC114YS 9-SW907 ES-349474 SW TACT SKHHAM004A
8-TR17 ET-354415 TR DTA144ES 9-SW908 ES-349474 SW TACT SKHHAM004A
8-TR19 ET-308141 TR 2SC2603 G FO5 9-SW909 ES-349474 SW TACT SKHHAM004A
8-TR21 ET-308141 TR 2SC2603 G FO5 9-TR907 ET-308141 TR 2SC2603 G FO5
8-TR101 ET-308141 TR 2SC2603 G FO5 9-TR908 ET-308141 TR 2SC2603 G FOS
8-TR102 ET-308472 TR 2SA1115 E,F,G FO5 9-TR9O9 ET-308141 TR 2SC2603 G FOS
8-TR103 ET-308141 TR 2SC2603 G FO5 9-TR910 ET-308141 TR 2SC2603 G FO5
8-TR105 ET-308141 TR 2SC2603 G FO5 9-TR911 ET-308141 TR 2SC2603 G FO5
8-TR106 ET-353897 TR DTC114ES 9-TR912 ET-308141 TR 28C2603 G FOS
8-TR107 ET-308141 TR 2SC2603 G FO5 9-TR913 ET-308141 TR 2SC2603 G FOS
8-TR108 ET-308141 TR 2SC2603 G FO5 9-TR914 ET-364060 TR DTC143ES
8-TR109 ET-308141 TR 2SC2603 G FO5 9-TR915 ET-308141 TR 2SC2603 G FOS
8-TR111 ET-364415 TR DTA144ES 9-TR916 ET-354415 TR DTA144ES
8-TR112 ET-308141 TR 2SC2603 G FO5 9-VR901 EV-356322 R S-FIX H KVSF637A 3P 502
8-VR1 EV-366845
R S-FIX V RVF8WO1 3P 102
9-VR902 EV-369716
VR ROTARY RKO9K1130 B103
8-VR101 EV-366845 R S-FIX V RVF8WO1 3P 102 9-VR903 EV-369717 VR ROTARY RKO9K1130 B104
8-VR102 EV-341251 R S-FIX V TM8KH1-1S 3P0.50W104 9-X901 El-356371 OSC X'TAL MS-309 4.194304NHZ
8-X1 El-309878 OSC X'TAL 4.43361 9MHZ
9. OPERATION (A) P.C BOARD 10. TRANS. P.C BOARD
Ref. No. Part No. Description Ref. No. Part No. Description
9-D907 ED-356424 D LED BG5525S GREEN 10-C701 + EC-369818 C CE V CS17FZ 103Z 400AC
9-D908 ED-356424 D LED BG5525S GREEN 10-D701 *ED-371397 D SILICON DSF10T-FA6 F10
9-D909 ED-356424 D LED BG5525S GREEN 10-D702 + ED-371397 D SILICON DSF10T-FA6 F10
9-D910 ED-356424 D LED BG5525S GREEN 10-D703. * ED-371397 D SILICON DSF10T-FA6 F10
9-D911 ED-356424 D LED BG5525S GREEN 10-D704 *ED-371397 D SILICON DSF10T-FA6 F10
9-D912 ED-356424 D LED BG5525S GREEN 10-D705 = ED-371398 D SILICON DSA17-FB8 F12
9-D913 ED-356424 D LED BG5525S GREEN 10-D706 = * ED-371398 D SILICON DSA17-FB8 F12
9-D914 ED-356424 D LED BG5525S GREEN 10-D707. = * ED-371398 D SILICON DSA17-FB8 F12
9-D915 ED-356424 D LED BG5525S GREEN 10-D708 %*ED-371398 D SILICON DSA17-FB8 F12
9-D916 ED-355607 D LED PR5505S RED 10-F1 * EF-258344 FUSE SEMKO T 250V 800MA
9-D917 ED-355607 D LED PR5505S RED 10-F2 * EF-623103 FUSE SEMKO T 250V 1.00A
9-D918 ED-355607 D LED PR5505S RED 10-FR701 2ER-362257 R FUSE H $17 ERQ-12H 1,/2W R47K
9-D921 ED-355607 D LED PR5505S RED 10-T1 *BT-373316 TRANS POWER V69L-EV
9-D934 ED-307572 D SILICON H 188131 10-SW701 >kES-354430 SW SLIDE 00220950 02-02-2N
9-D935 ED-307572 D SILICON H 1SS131 10-1 *EW-371933 AC CORD 200 KP419LTCE BIO(A
ncn PARTS LIST
23
