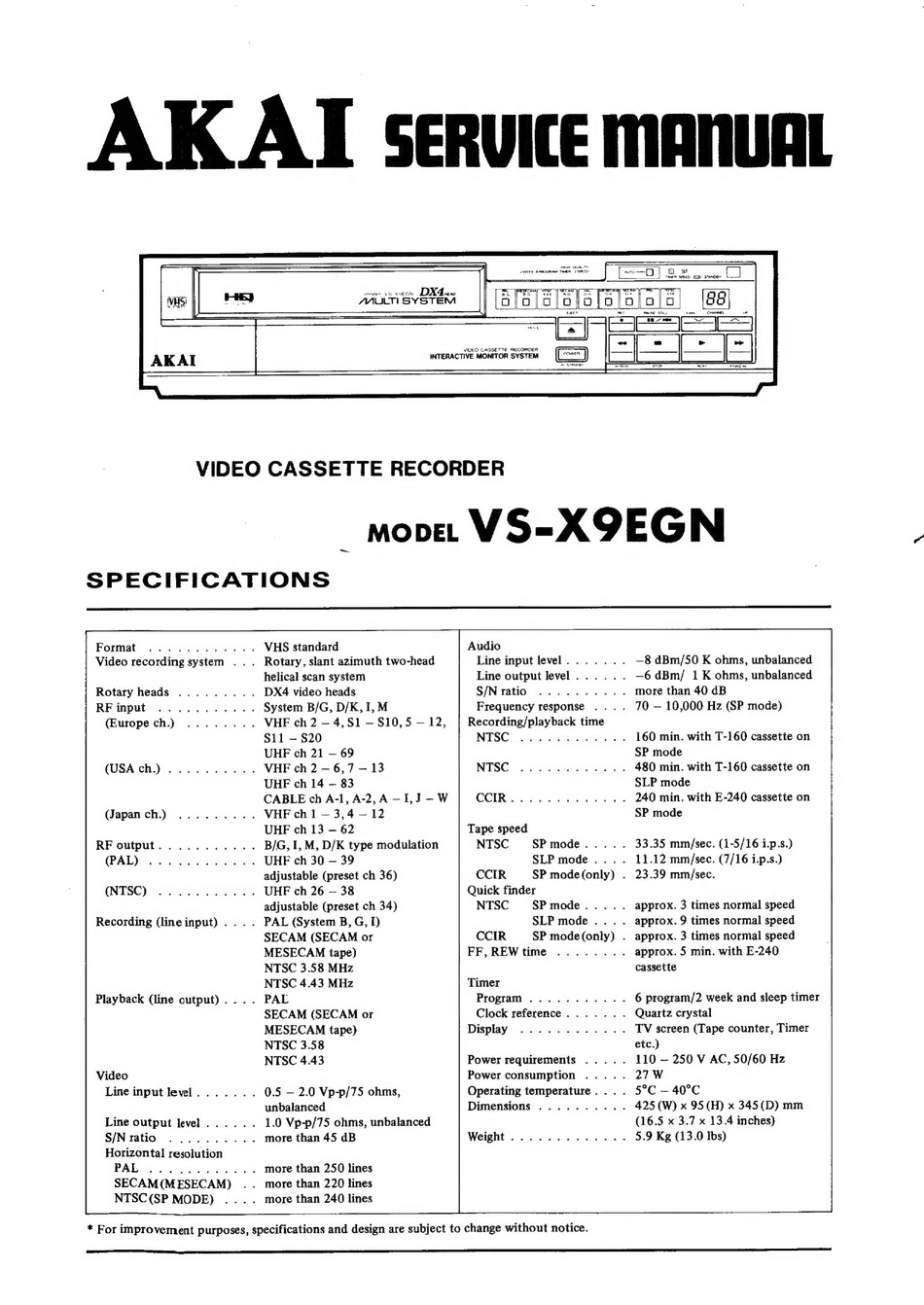

Akai VS-X9EGN Service Manual

moan vs sven DX Abner
MULTI SYSTEM
TYE RECORDER
VIDEO CASSE
INTERACTIVE MONITOR SYSTEM
VIDEO CASSETTE RECORDER
MODEL VS-X9EGN
SPECIFICATIONS
ee arr ee ae VHS standard Audio
Video recording system ... Rotary, slant azimuth two-head Line input level... .... —8 dBm/50 K ohms, unbalanced
helical scan system Line output level ...... —6 dBm/ 1 K ohms, unbalanced
Rotary heads ......... DX4 video heads S/Nratio .......... more than 40 dB
RFinput ........... System B/G, D/K,I,M Frequency response .... 70 — 10,000 Hz (SP mode)
(Europe ch.) ........ VHF ch 2 — 4,S1 —S10,5 —12, | Recording/playback time
S11 — 820 NISC | 2 8 cece ee eter e tne 160 min. with T-160 cassette on
UHF ch 21 — 69 SP mode
(USA ch.) .......... VHF ch 2 — 6,7 — 13 NTSC! fuses ee ee 480 min. with T-160 cassette on
UHF ch 14 — 83 SLP mode
CABLE ch A-1,A-2,A—-I,J -W COIRG 6 ghs euro doy tisk 240 min. with E-240 cassette on
(Japanch.) ......... VHF ch 1 — 3,4 — 12 SP mode
UHF ch 13 — 62 Tape speed
RF output... ......... B/G, I, M, D/K type modulation NTSC SP mode..... 33.35 mm/sec. (1-5/16 i.p.s.)
(BAL): 6-058 ashe acse ten 8 UHF ch 30 — 39 SLP mode .... 11.12 mm/sec. (7/16 ip.s.)
adjustable (preset ch 36) CCIR SP mode(only) . 23.39 mm/sec.
(NTSC) ........... UHF ch 26 — 38 Quick finder
adjustable (preset ch 34) NTSC SP mode..... approx. 3 times normal speed
Recording (line input) . . . . PAL (System B, G, I) SLP mode .. . . approx. 9 times normal speed
SECAM (SECAM or CCIR SP mode(only) . approx. 3 times normal speed
MESECAM tape) FF,REWtime ........ approx. 5 min. with E-240
NTSC 3.58 MHz cassette
NTSC 4.43 MHz Timer
Playback (line output)... . PAL Program ........... 6 program/2 week and sleep timer
SECAM (SECAM or Clock reference....... Quartz crystal
MESECAM tape) Display ............ TV screen (Tape counter, Timer
NTSC 3.58 etc.)
NTSC 4.43 Power requirements ..... 110 — 250 V AC, 50/60 Hz
Video Power consumption ..... 27W
Line input level... .... 0.5 — 2.0 Vp-p/75 ohms, Operating temperature. . . . 5°C — 40°C
unbalanced Dimensions .......... 425 (W) x 95 (H) x 345(D) mm
Line output level... . .. 1.0 Vp-p/75 ohms, unbalanced (16.5 x 3.7 x 13.4 inches)
S/Nratio .......... more than 45 dB Weight ............-. 5.9 Kg (13.0 Ibs)
Horizontal resolution
PADS <-305. ween' 4 more than 250 lines
SECAM(MESECAM) .. more than 220 lines
NTSC(SP MODE) .... more than 240 lines
* For improvement purposes, specifications and design are subject to change without notice.
