PROAIM DL-SPIN-01 Assembly Manual

Spin lightweight doorway platform dolly
Hide thumbs Also See for DL-SPIN-01:

Advertisement

Quick Links

Download this manual
1

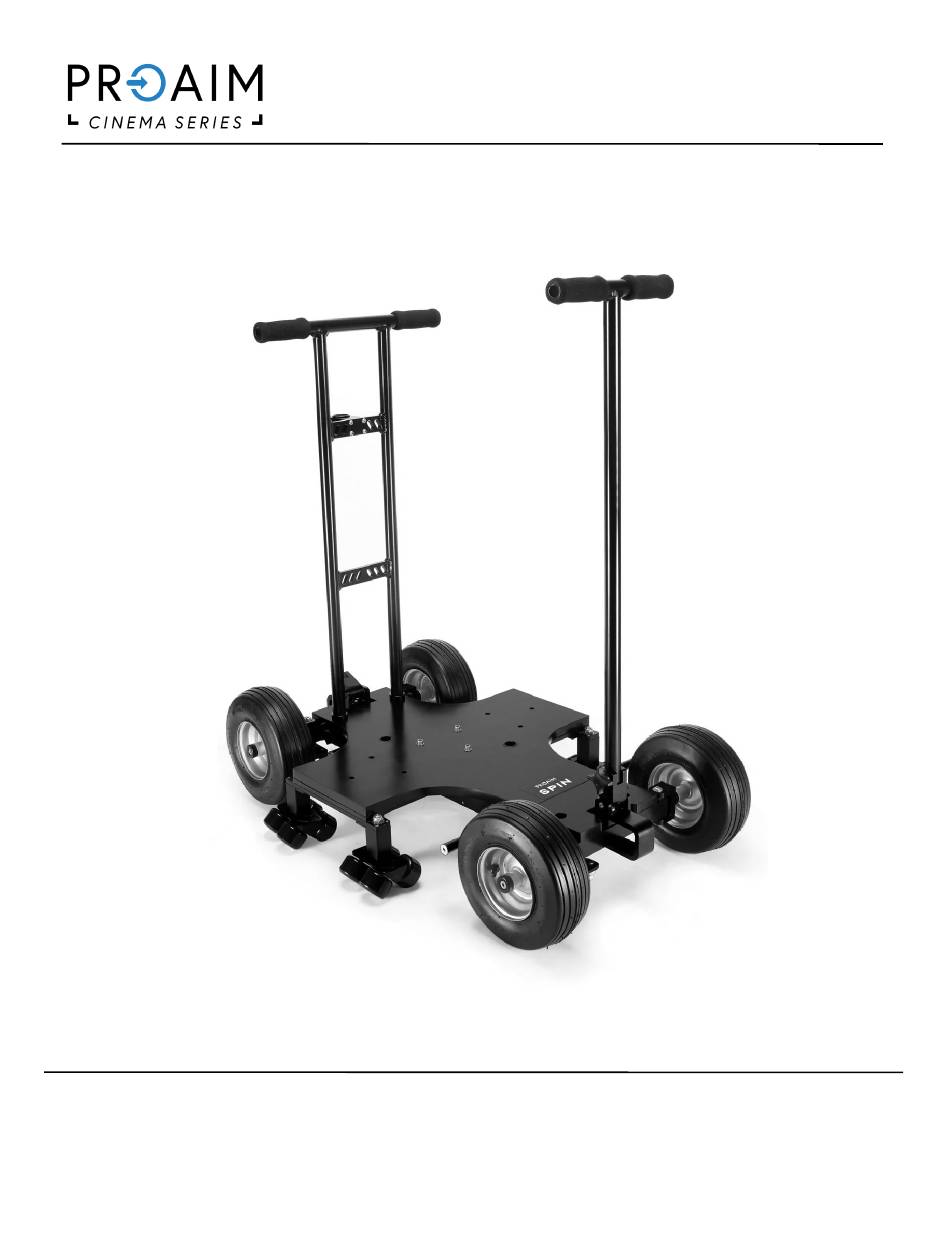

Spin Lightweight Doorway Platform Dolly (DL-SPIN-01)
A s s e m b l y M a n u a l
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DL-SPIN-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM DL-SPIN-01

Summary of Contents for PROAIM DL-SPIN-01

  • Page 1 Spin Lightweight Doorway Platform Dolly (DL-SPIN-01) A s s e m b l y M a n u a l All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

  • Page 2: What's In The Box

    What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Doorway Platform Dolly Steering Handle Handle 4 x Pneumatic Wheels 2 x Wheel Tracks 17mm & 13mm 1 x L-Type Allen Key 4 x T-Type Allen Key Adapter with Spanners...
  • Page 3 Spin Lightweight Doorway Platform Dolly Setup Pneumatic Wheels Assembly • Use a 5mm Allen key to loosen and remove the CSK bolt from the wheel axle. • Attach the pneumatic wheel to the axle and reinsert the CSK bolt. • Next, Tighten the bolt securely using the 5mm Allen key.
  • Page 4 • Insert the steering handle into place. • Align the holes of the steering handle and knob. • Insert the knob and tighten it securely to lock the handle in place. • The steering handle is now properly attached. Feature: The steering bar tilts down 270° for added convenience for the dolly grip.

  • Page 5: Handle Assembly

    Handle Assembly • Start by loosening the knobs on located on each side of the dolly. • Then, Insert the handle into the dolly’s handle slot. • After inserting the handle, re-tighten the knobs to secure the handle in place firmly. NOTE: Handles installed...
  • Page 6 Adapter Mounting NOTE: Use the adapter when not using the steering handle • Use a 4mm Allen key to loosen and remove the Button Head from the adapter. • Secure the adapter to the handle, then reinsert the button head.
  • Page 7 • Tighten it using the 4mm Allen key. • The adapter is now securely attached. • Now, insert the steering handle into the adapter. • Loosen and remove the knob of the rear wheel steering. • Now, Insert the steering handle into the place.
  • Page 8 • Use a 4mm Allen key to loosen the bolts on the plate at the bottom, as shown in the image. • Slide the track wheel into place and secure it by reinserting the knob and tightening it. • Next, Re-tighten all plate bolts with the 4mm Allen key.
  • Page 9 Bazooka Mounting • Use a 6mm Allen key to loosen & remove all the Allen bolts for the Euro mounting dolly, then remove them. • Mount the Euro Plate (Not Included) onto the dolly. • Re-insert the Allen bolts, aligning them with the holes on the Euro Plate.
  • Page 10 • Mount the Bazooka (Not included) onto the Euro Plate (Not included) and tighten the knob on top of the lever inside the Bazooka. • Lock the Bazooka in place using the lever. • The Bazooka is now securely mounted on the dolly.
  • Page 11 Fluid Head Mounting • Mount the fluid head (Not Included) onto the height riser and insert the locking knob from the bottom to secure it. • Once the fluid head is securely mounted, slide the camera into position, as shown in the image.
  • Page 12 • Use a 10mm Allen key to loosen the Allen bolt on one side of the dolly’s front section and remove it. • Repeat the same process to remove the Allen bolt on the opposite side. • Use a 6mm Allen key and a 17mm spanner to loosen the bolt and hex nut from the bottom side, then remove the steering rod.
  • Page 13 YOUR PROAIM SPIN LIGHTWEIGHT DOORWAY PLATFORM DOLLY ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
